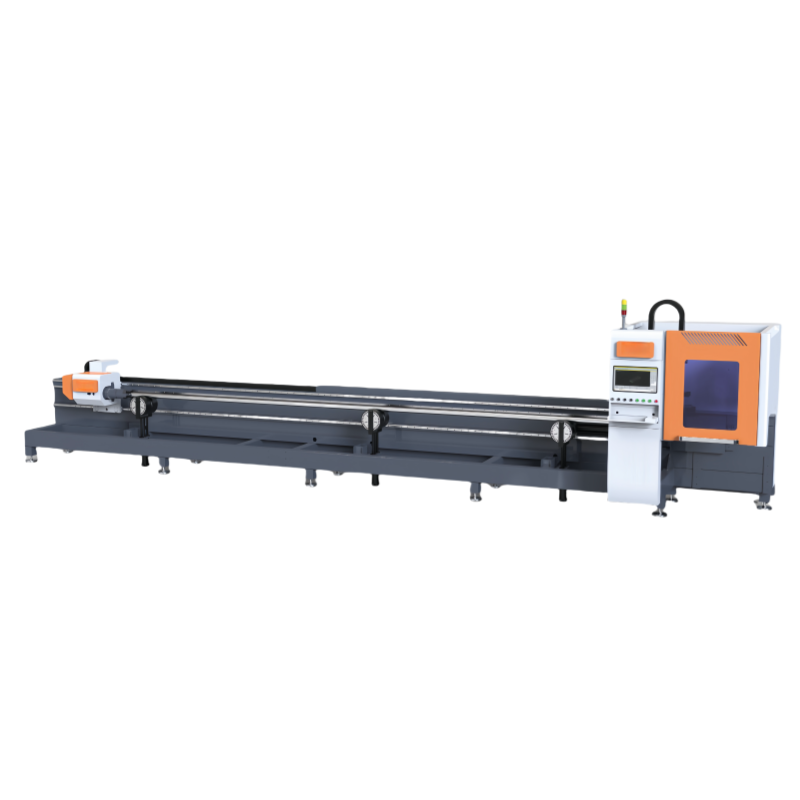

G120C/G170C/G240C
Features Introduction:
Fully Automated Feeding Rack: Saves time and labor with a simple, easy-to-operate structure.
High Efficiency: 5-6 times faster than conventional tube cutting machines.
Minimal Scrap Waste: Reduces material waste and minimizes post-processing steps.
Control Over Scrap Length: The remaining scrap length can be controlled, even down to zero, significantly reducing material loss.
Adaptive Cutting: Standard with an integrated height adjuster, easily handles deformed pipes.
Compact Design: The machine structure is compact with a small footprint, featuring strict welding and annealing processes, ensuring stable long-term operation and cutting speed. The machine can operate 24/7 for industrial production and maintain bed deformation-free over its lifecycle.

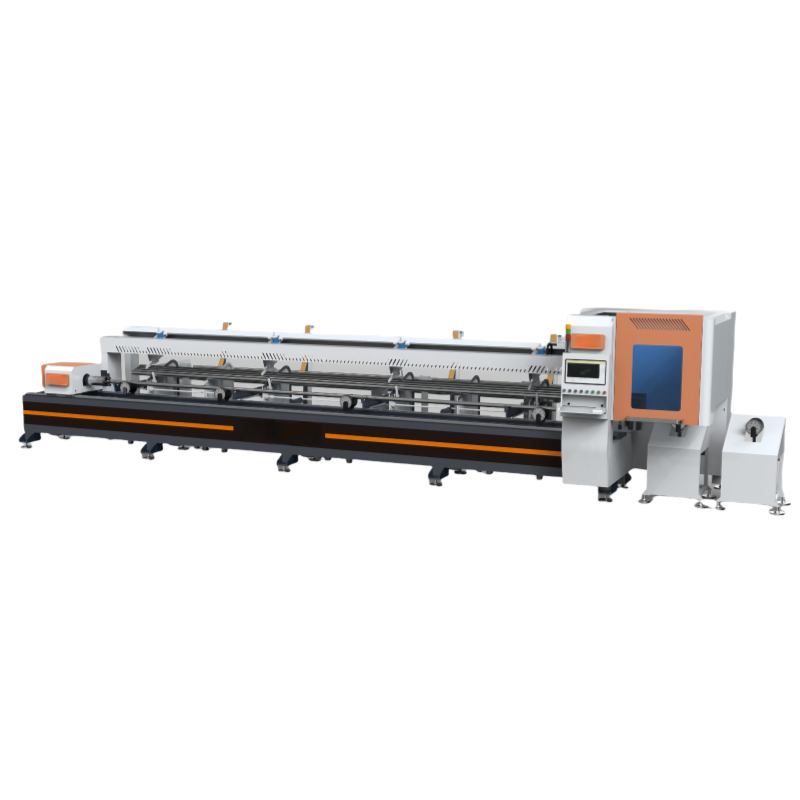

Fully Automatic Feeding System:
(Image for reference, actual appearance and size may vary upon delivery.)

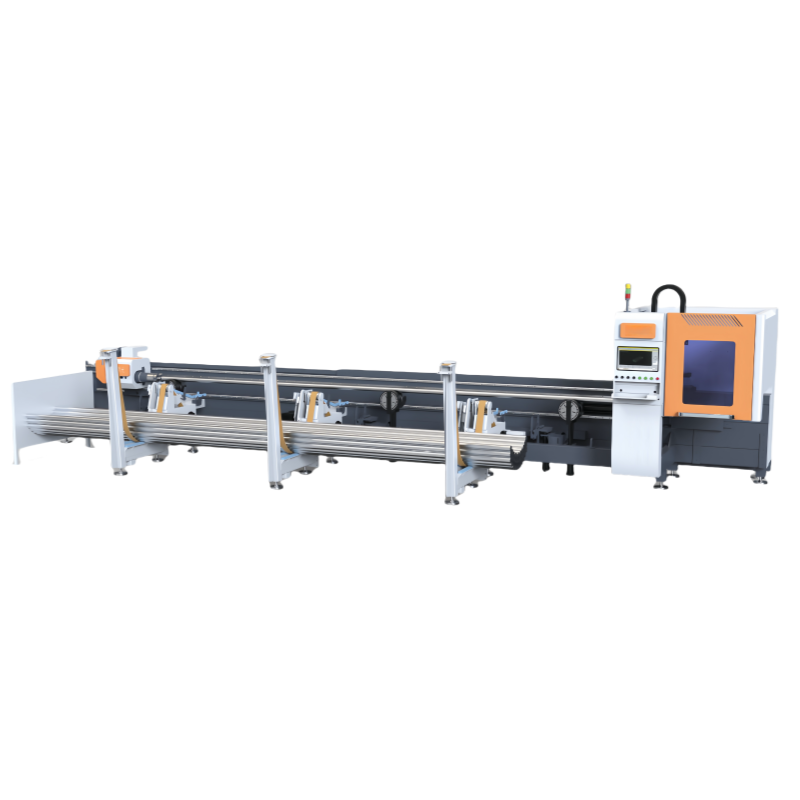

Semi-Automatic Feeding System:
(Image for reference, actual appearance and size may vary upon delivery.)
Modular Design, Stable Performance: The system uses a modular design, with optical and electrical modules separated to ensure stable operation and easy maintenance. It can be upgraded and maintained directly on-site.
Customizable: Laser fiber diameter options are available to meet different processing needs.
Stable and Uniform Spot Energy Distribution: Reduces welding spatter, improves stability in thick plate cutting.
Wide Application: Suitable for fine laser cutting, precision welding, and other processes across industries such as 3C, hardware, medical, automotive, and aerospace.
High Compatibility: Supports various fiber interfaces such as QBH and QCS, allowing compatibility with mainstream laser generators.
Optimized Design: Efficient airflow and optical configurations significantly enhance cutting quality and efficiency.
Fine Nozzle Design: The modular, elongated nozzle design minimizes interference with workpieces.
Compact Structure: Lightweight, reduces robot load, enhancing cutting speed and precision.
EtherCAT Bus Control: Fast communication speed with strong anti-interference ability.
Customizable: Flexible for adding axes and control signal modules, providing tailored designs.
Supports 256 Axes: Can control up to 256 axes with high device capacity.
Pre-configured Nesting: Simplifies installation and immediate use.
Integrated Structure: Sealed for dust prevention, protecting chuck accuracy and machine lifespan.
Guided by Four-Claw Rail Mechanism: Ensures linearity and stability with a positioning accuracy of 0.01mm. The maximum rotational speed reaches 200r/min.
Tail Scrap Control: Front chuck can move away when cutting scrap, ensuring accuracy and minimizing scrap length.
Gear and Rack Transmission: The Z-axis uses imported ground ball screw for high-speed, high-precision, and high-reliability performance.
Sealed for Dust Protection: Prevents friction wear and dust contamination, prolonging the service life and maintaining machine precision.
Auto Lubrication: Regularly oils gear racks and ball screws to ensure longevity.
Independent Control of Cutting Gases: Automatically switches between air, nitrogen, and oxygen (optional) during piercing, with real-time pressure control and flexible cutting process adjustments.
Precise Positioning: Utilizes advanced motion control algorithms to ensure smooth, high-speed operation with precise positioning, guaranteeing stable high-speed performance and acceleration.
Stainless Steel Pump: Provides large flow, high lift, low noise, and long lifespan. The system ensures no rusting concerns with stainless steel components.
Automatic Fault Detection: Displays fault points on the screen for quick troubleshooting.
Dual-Temperature Precision: Provides stable water temperature control for the laser and cooling for lenses, preventing condensation and damage.
| Model | G120C | G170C | G240C |
|---|---|---|---|
| Laser Power (W) | 1500-6000 | 1500-6000 | 1500-6000 |
| Pipe Cutting Diameter (mm) | Φ: 10-120, □: 10-120 | Φ: 10-170, □: 10-170 | Φ: 10-240, □: 10-240 |
| Repeat Positioning Accuracy (mm) | ±0.02 | ±0.02 | ±0.02 |
| Pipe Processing Range (mm) | ≈6250 | ≈6250 | ≈6250 |
| Machine Dimensions (mm) | LWH: 887417202175 | LWH: 887417202175 | LWH: 887417202175 |
| Weight (T) | ≈3.5 | ≈3.5 | ≈3.5 |
| Acceleration (G) | ≈1.6 | ≈1.3 | ≈1.0 |
| Scrap Length (mm) | ≈40 | ≈80 | ≈100 |
| Item No. | Name | Brand/Origin | Model/Specifications | Quantity | Remarks |
|---|---|---|---|---|---|
| 1 | Laser Generator | Chuangxin/Reic | - | 1 set | - |
| 2 | Cutting Head | Jiaqiang/Ozpro/Boci | - | 1 set | - |
| 3 | Control System | Baichu | - | 1 set | - |
| 4 | Rotary Pneumatic Chuck | Biote/Other Optional | - | 1 set | - |
| 5 | XYZ Axis Slide Block | SHAC/AirTAC | - | 3 sets | - |
| 6 | XYZ Axis Guide Rail | SHAC/AirTAC | - | 3 sets | - |
| 7 | XYZ Axis Gear Rack | Taiwan Liangchi/Taiwan Jinte | - | 2 sets | - |
| 8 | XYZU Axis Servo Motor and Driver | Delta/Delta | - | 4-5 sets | - |
| 9 | Pneumatic System | AirTAC | - | Several | - |
| 10 | Electric Proportional Valve | AirTAC/SMC | - | 1 unit | - |
| 11 | Machine Accessories | Standard | - | 1 set | - |
| 12 | Machine Bed | Standard | - | 1 unit | - |
| 13 | Control Cabinet | Standard | - | 1 set | - |
| 14 | Circuit Breaker, Relay | Schneider/DELIXI | - | 1 set | - |
| 15 | Power Supply | Schneider/DELIXI | - | 1 set | - |
| 16 | Chiller | Hanli | - | 1 set | - |
| 17 | Feeding System | Fully Automatic/Semi-Automatic | - | 1 set | - |
| Item No. | Name | Specifications | Unit | Quantity | Remarks |
|---|---|---|---|---|---|
| 1 | Optical Lenses | Jiaqiang/Ozpro/Boci | Piece | 5 | - |
| 2 | Cutting Nozzle | Jiaqiang/Ozpro/Boci | Piece | 5 | - |
| 3 | Ceramic Rings | Jiaqiang/Ozpro/Boci | Piece | 5 | - |
(Note: Parameters and specifications are subject to change, final details based on actual orders.)
