WK-K59-3020-1500W

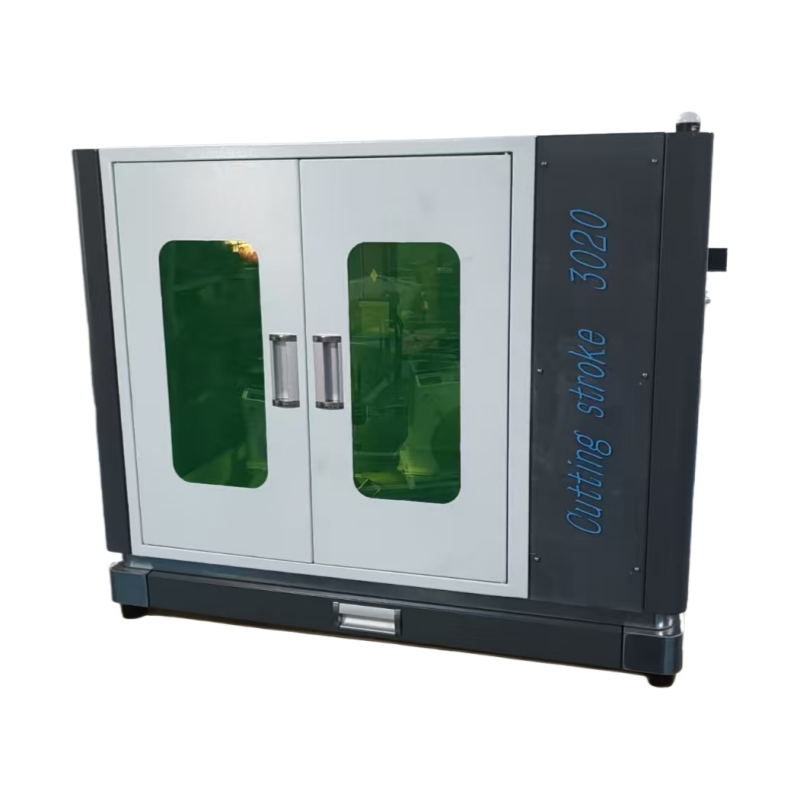

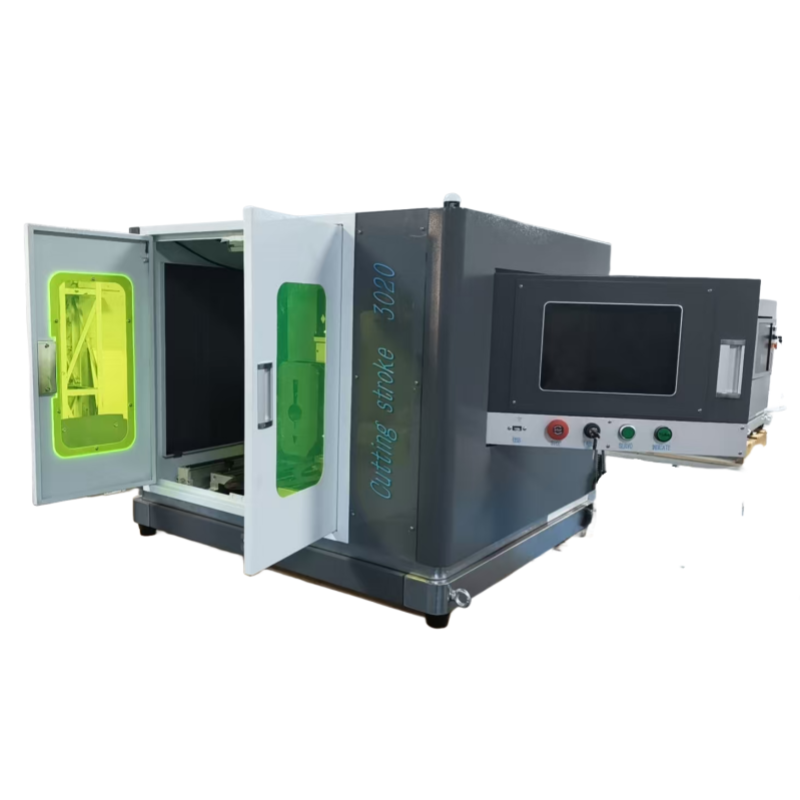

The 1500W High-Precision Fiber Laser Cutting Machine is engineered for micromachining applications requiring exceptional accuracy and edge quality. Designed for cutting intricate geometries in thin materials, it integrates advanced motion control, a high-beam-quality laser source, and intelligent software to meet the stringent demands of industries like electronics, medical devices, and aerospace.
Ideal Use Cases:
R&D Labs: Prototyping new products and components.
Electronics Industry: Cutting precise components for circuit boards, sensors, shields, and connectors.
Medical Device Manufacturing: Producing stents, micro-components for surgical tools, and implant prototypes.
Jewelry Making: Intricate cutting of metal designs.
Education: For teaching and research in engineering and manufacturing.
High-Precision Job Shops: Specializing in small-batch, high-value components.
1. Basic Parameters
| Item | Parameter |
|---|---|
| Working Area | 200 x 300 mm |
| Table Load Capacity | 60 kg |
| Machine Overall Dimensions (L x W x H) | 950 x 820 x 780 mm |
| Machine Weight | 220 kg |
| Z-axis Travel | 100 mm |
2. Operation Parameters
| Item | Parameter |
|---|---|
| Maximum Linkage Speed | 50 m/min |
| Maximum Acceleration | 0.5 G |
| Positioning Accuracy | ±0.03 mm |
| Repositioning Accuracy | ±0.02 mm |
3. Processing Precision (1mm Carbon Steel Plate)
| Item | Tolerance |
|---|---|
| Roundness (φ30mm circle) | ≤ 0.1 mm |
| Adjacent Side Difference (30mm) | ≤ 0.04 mm |
| Adjacent Side Difference (190mm) | ≤ 0.05 mm |
| Diagonal Difference (190mm) | ≤ 0.07 mm |
4. Optical System
| Component | Brand/Description |
|---|---|
| Laser Source | Maxphotonics / Raycus / JPT / Cnlight |
| Laser Head | Chiaro |
5. Mechanical System
| Component | Brand/Description |
|---|---|
| Machine Bed Structure | Integral steel plate welding |
| X, Y, Z-axis Servo Motor & Driver | Leisai / Inovance |
| Guide Rail | HIWIN (Taiwan) |
| Ball Screw | TBI (Taiwan) |
| Table Mounting / Fixturing | Fixed Table (Manual Fixture Table) |
6. Intelligent Control System
| Component/Feature | Description |
|---|---|
| Control System | Chiaro |
| WiFi Wireless Control | Standard (●) |
| Laser Cutting Process Database | Standard (●) |
| Auxiliary Gas Low-Pressure Alarm Function | Standard (●) |
| Cutting Gases | Air, Nitrogen, Argon |
| Low-Voltage Apparatus | Honeywell (USA) |
| Relay | Yijia |
| Cutting Gas Circuit | NNT (Japan) |
| Supported File Formats | G-code, DXF, DWG, PLT, ENG |
Electronics: PCB shields, connectors, micro-sensors.
Medical: Implants, surgical tool components, diagnostic parts.
Aerospace: Thin-wall brackets, lightweight structural elements.
Automotive: Fuel injector parts, sensor housings, precision shims.
✔ Wi-Fi Remote Control: Monitor and adjust cutting via mobile devices.
✔ Process Database: Auto-optimizes parameters for 50+ material types.
✔ Gas Pressure Alarm: Real-time monitoring for consistent cut quality.
✔ File Compatibility: Supports DXF, DWG, PLT, and G-code.
Protections: Laser anomaly alarm, gas leak detection, water-cooler monitoring.
Certifications: CE, FDA (for medical applications), ISO 9001.
Dust Removal: Integrated centrifugal fan (99% filtration efficiency).
Ultra-Fine Cutting: Achieves Ra < 1.0μm surface roughness without post-processing.
Energy-Efficient: 30% lower power consumption vs. CO₂ lasers.
Minimal Maintenance: No optical alignment needed, with a 20,000-hour laser lifespan.
Rotary Attachment: For cutting tubular parts (e.g., catheters, micro-tubes).
Automatic Nozzle Changer: Reduces downtime during material changes.
Vision System: CCD-based alignment for irregularly shaped components.
