G12-7012B-2000W

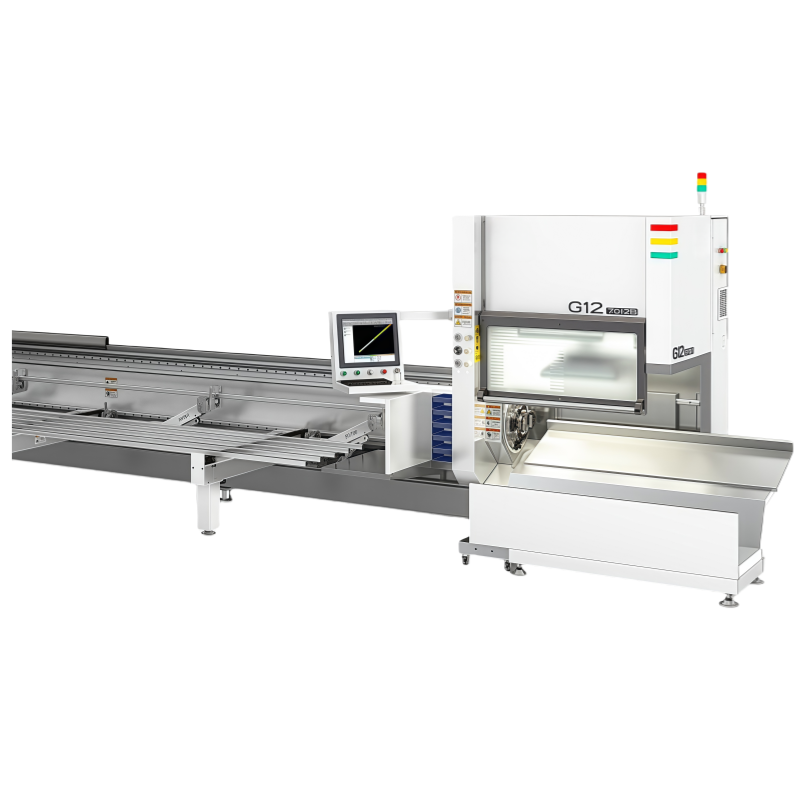

Product Name: Fiber Laser Tube Cutting Machine
Model: G12-7012B
Laser Power: 2000W
High Speed: Competitive advantages in chuck speed, cutting efficiency, standard configurations, and overall machine pricing.
Material Saving: Ultra-short tailing (40mm), setting an industry record and improving material utilization.
Wide Compatibility: Supports tube diameters from Ø10~120mm; compatible with round, square, oval, and irregular tubes. Especially suitable for thin-walled tubes.
High-Precision Chuck: One-time clamping, no need to replace jaws. Precision guaranteed over time.
Automatic Loading: Side-suspended structure with semi-automatic loading machine. Loading can be performed without stopping the machine, enabling 24/7 operation.
Low Cost: No high-cost consumables. Main operating costs include electricity, protective lenses, and copper nozzles (~13-15 RMB/hour).
| No. | Component Name | Brand | Model/Origin |
|---|---|---|---|
| 1 | Fiber Laser Source | Chuangxin / Reci | 2000W / Leading Chinese Brand |
| 2 | Cutting Head | OSPRI | 2000W / Leading Chinese Brand |
| 3 | Gear Rack | YYC, Taiwan | M2-Grade 6 / Taiwan |
| 4 | Reducer | Shimpo, Japan | 090 / China |
| 5 | Linear Guide | AIRTAC, Taiwan | CGH30 / China |
| 6 | Motor | Inovance (Yaskawa Optional) | High-speed bus type, up to 4000 rpm |
| 7 | Dust Removal | Optional Fan | Leading Chinese Brand |
| 8 | Water Chiller | Hanli | Leading Chinese Brand |
| 10 | Electrical Components | Schneider, France | China |
| 11 | Pneumatic Components | AIRTAC, Taiwan | China |
Machine Bed: In-house developed, Suzhou / 8.5 meters, stress-relieved by high-temperature annealing
Chucks: QL-120 Pneumatic Chucks / Continuous Air Supply Clamping
Support Racks: 4 servo floating supports / Load capacity: 50kg
Semi-Automatic Loader: 3 conveyors, holds 5 tubes for continuous loading
Unloading System: Frame capacity 20kg/m, max length 2.0m
CNC System: Bochu Bus Control System / Shanghai
Nest Software: Bochu 3D Tube Cutting Software / Shanghai
Other:
Operation Side: Left-handed configuration (standard)
Packing & Shipping: Standard packaging (included)
Note: Machine requires industrial power 380±5V. Voltage stabilizer may be needed depending on site conditions.
Laser Source:
Power Output: 2000W
Mode: Fiber Continuous
Core Diameter: 50μm
Cooling: Water Cooling
Material Compatibility: Carbon Steel, Stainless Steel, Aluminum Alloy, Brass, Copper
Machine Bed:
Structure: Tube & Plate Welding
Length: 8.5 meters
Chuck:
Model: QL120 Pneumatic
Load Capacity: 50kg
Cutting Head:
Focus Focal Length: 125mm
Collimation Length: 100mm
Focus Adjustment Speed: 100mm/s (No Manual Focus)
Assist Gas Pressure: ≤3Mpa
Water Chiller:
Coolant: Distilled or Deionized Water
Temperature Settings: Normal Water 30°C / Cooling Water 20°C (Adjustable)
Temperature Control Accuracy: ±0.1°C
Flow Rate: 10L/min
Head: 20m
General:
Platform: 120 Series Compact
Dimensions: 9600×3300×2300 mm
Weight: 4.2T
Power Consumption: 20–25 KW
Operating Temperature: 0–40°C
Processing Range:
Round Tube: Ø10–Ø120mm
Square Tube: □10–□80mm
Cutting Kerf Width: 0.1–0.2mm
Travel Range:
One-time Clamping: Ø10–Ø120mm
Y/X/Z/U Axis: 7000 / 150 / 250 / Infinite Rotation
Precision & Speed:
X/Y Axis Positioning Accuracy: ±0.03/1000mm (±0.06 for 7000mm)
Repeat Accuracy (X/Y): ±0.03mm
U Axis Repeat Accuracy: ≤5 arcmin
U Axis Max Rotation Speed: 160 rpm
Max Acceleration (X/Y): 1.5G
Max Idle Speed (X): 100 m/min
Max Idle Speed (Y): 160 m/min
Loading Parameters:
Manual Load Length: 7000mm
Auto Load Length: 5800–6450mm (Custom: 5000–7000mm)
First Load Cycle: ≤50s, Subsequent: ≤18s
Loader Capacity: 300kg
Max Tube Weight (Manual/Auto): 50kg
Unloading Parameters:
Tail Length: 40mm
Max Unload Length: 2000mm (Optional 4000mm)
Power:
Voltage: 380–400V / 50Hz / 3 Phase 5 Wire
Stabilizer recommended if voltage fluctuation >5%
Minimum Power Supply: ≥40KVA
Ground Resistance: ≤3Ω
Cooling Water:
Type: Distilled or Deionized
Volume: 20L / Conductivity <10μs
Assist Gas:
Oxygen: ≥99.6% purity / 1.0MPa / ≥1m³/min (for carbon steel)
Nitrogen: ≥99.99% purity / 2.5MPa / ≥2.5m³/min (for stainless steel)
Air: ≥1.3MPa / ≥1.8m³/min (with compressor, dryer, 4-level filtration 0.01μm)
Installation Environment:
Temperature: 5–30°C
Humidity: <70%
Stable Foundation: No vibrations, no subsidence
Avoid electromagnetic interference from arc welders, EDMs, etc.
