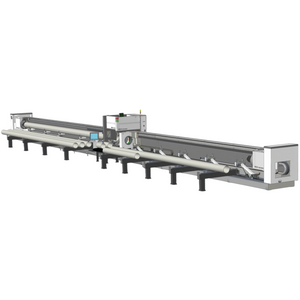

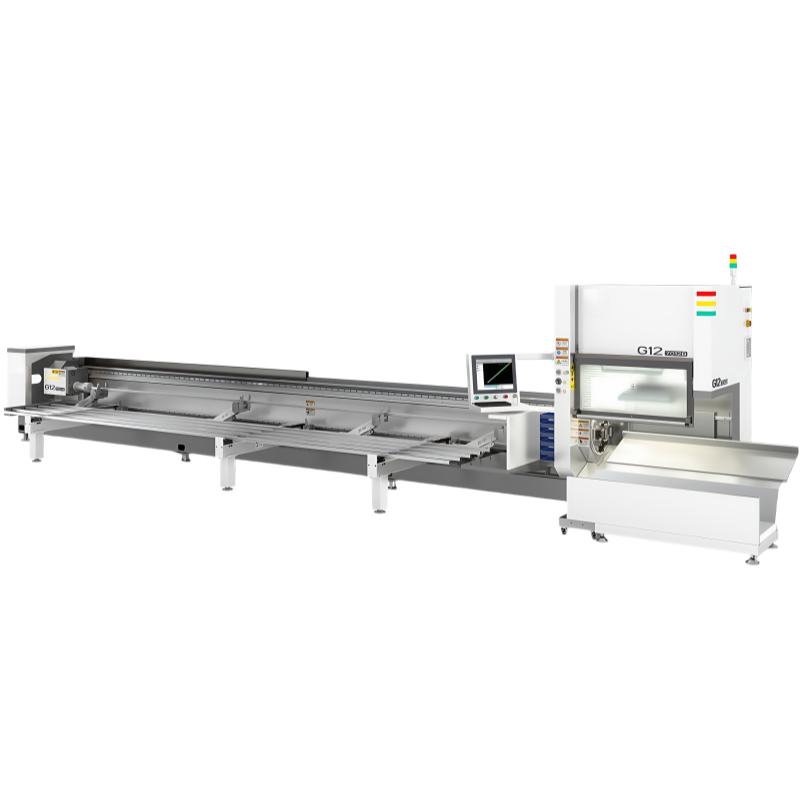

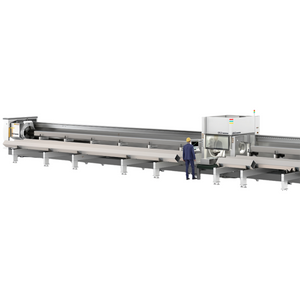

1500W Fiber Laser Tube Cutting Machine 7 Meters with 120mm Chuck

Product Name: Fiber Laser Tube Cutting Machine
Model: G12-7012
Laser Power: 1500W

✔ Advantages & Features

• High Speed: Competitive advantages in chuck rotation speed, cutting efficiency, standard configuration, and total machine price.

• Material Saving: Industry-leading ultra-short tailing of 40mm, increasing material utilization.

• Wide Tube Compatibility: Suitable for Φ10~120mm diameter tubes, including round, square, oval, and special-shaped pipes. Outstanding performance for thin-walled tubes.

• High-Precision Chuck: One-time clamping, no jaw replacement needed, with long-term precision guarantee.

• Automatic Loading: Side-mounted structure, standard semi-automatic loader. Continuous feeding without shutdown, enabling 24/7 operation.

• Low Operating Cost: No expensive consumables; primary costs are electricity, protective lenses, and copper nozzles. Approx. 13-15 RMB/hour.

Key Components Configuration

Processing Units

• Main Bed: Independently developed, 8.5m, stress-relieved and annealed (Suzhou)

• Chuck: GL-120 pneumatic chuck, self-developed (Suzhou), continuous air supply clamping

• Support Racks: 4 racks, each load capacity 50kg

• Semi-Automatic Loader: 3 conveyors, stores 5 tubes for continuous feeding

• Discharge Unit: Max 2.0m discharge, 20kg per meter

Software

• Control System: Bochu Bus System (Shanghai)

• Nesting Software: Bochu 3D Tube Nesting Software (Shanghai)

Component Technical Specifications

Laser Source

• Output Power: 1500W

• Mode: Continuous Fiber Laser

• Fiber Core Diameter: 50μm

• Cooling: Water Cooled

• Materials: Carbon Steel, Stainless Steel, Aluminum Alloy, Brass, Copper

Machine Bed

• Structure: Tube & Plate Welded

• Length: 8.5 meters

Chuck

• Model: QL120

• Type: Pneumatic

• Load Capacity: 50kg

Cutting Head

• Focus Focal Length: 125mm

• Collimation Focal Length: 100mm

• Focus Adjustment Speed: 100mm/s (No Auto Focus)

• Assist Gas Pressure: ≤3Mpa

Water Chiller

• Coolant: Distilled / Deionized Water

• Temp Settings: Normal 30°C / Chilled 20°C (adjustable)

• Temp Accuracy: ±0.1°C

• Flow: 10L/min

• Lift: 20m

Machine Technical Parameters

Processing Capacity

• Round Tube: Φ10-Φ120mm

• Square Tube: □10-□80mm

• Cut Width: 0.1 - 0.2mm

Axis Travel

• Chuck Grip Range: Φ10-Φ120mm

• Axis Travel: Y: 7000mm / X: 150mm / Z: 250mm / U: Infinite Rotation

Precision & Speed

• X/Y Axis Positioning Accuracy: ±0.03mm/1000mm

• X/Y Axis Repeatability: ±0.03mm

• U-axis Rotational Repeatability: ≤5 arc min

• Max U-axis Speed: 160 RPM

• Max Acceleration: X/Y Axis: 1.5G

• Max No-load Speed: X: 100 m/min, Y: 160 m/min

Feeding & Unloading

• Manual Loading Length: 7000mm

• Automatic Loading Length: 58006450mm (customizable: 50007000mm)

• First Loading Cycle: ≤50s; Subsequent: ≤18s

• Loading Capacity: 300kg (Machine), 50kg (per pipe)

• Tailing Length: 40mm (min)

• Max Unloading Length: 2000mm (customizable to 4000mm)

Power Supply

• 3-phase, 5-wire, 380~400VAC, 50Hz

• Voltage Stability: ±2%

• If voltage fluctuation >5%, use voltage stabilizer

• Cable diameter ≥10mm

• Grounding resistance: ≤3Ω

• 3 independent breakers required

Cooling Water

• Type: Distilled / Deionized

• Quantity: 13L, conductivity <10µs/cm

Gases

Oxygen

• Purity ≥99.6%, Pressure: ≥1MPa, Flow: ≥1m³/min

• Used for carbon steel and iron

Nitrogen

• Purity ≥99.99%, Pressure: ≥2.5MPa, Flow: ≥2.5m³/min

• Used for stainless steel, galvanized sheets

Air

• Pressure: ≥1.3MPa, Flow: ≥1.8m³/min

• Must be dry and oil-free, dew point < 5°C

• Oil content ≤0.003ppm, particle size ≤0.01μm

Installation Environment

• Temperature: 5~30°C

• Humidity: <70%

• Ground: Flat, shock-free. For seismic areas, use vibration trenches.

• Ventilation: Good airflow, dust-free, non-corrosive, no water leaks

• Avoid electromagnetic interference from arc welding or EDM machines
