FL-A200

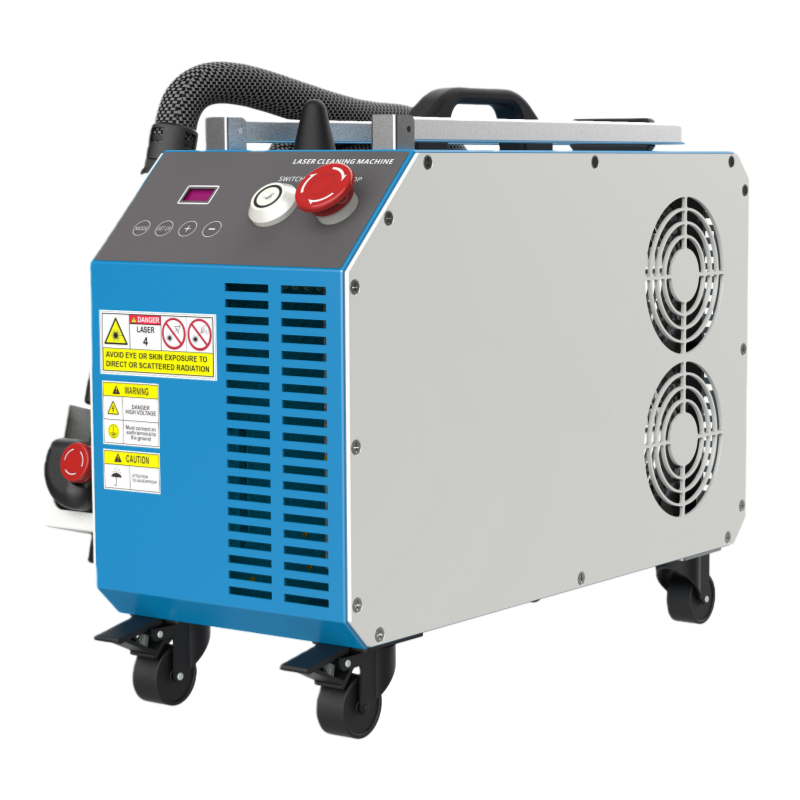

200W Portable Pulsed Laser Cleaning Machine for Metal Rust Removal
The 200W Portable Pulsed Laser Cleaning Machine is a high-efficiency solution designed for metal surface rust removal and industrial surface cleaning. Using pulsed fiber laser technology (1064 nm), it removes rust, oxidation layers, paint residues, and surface contaminants quickly and precisely, while fully protecting the base metal.
The pulsed laser delivers concentrated energy that is selectively absorbed by rust and oxides. These contaminants are instantly vaporized or detached, while the metal substrate remains unaffected. This ensures non-contact, non-abrasive cleaning without deformation, scratches, or heat damage.
The air-cooled system eliminates the need for an external water chiller, resulting in a compact, lightweight, and portable structure. The handheld cleaning head allows flexible operation, making the machine suitable for workshops, factories, and on-site maintenance.
| Item | FL-A50 | FL-A100 | FL-A200 | FL-A300 |
|---|---|---|---|---|
| Model | FL-A50 | FL-A100 | FL-A200 | FL-A300 |
| Rated Voltage | 220V~ | 220V~ | 220V~ | 220V~ |
| Rated Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Total Power | 300 W | 500 W | 1000 W | 1500 W |
| Laser Power | 50 W | 100 W | 200 W | 300 W |
| Laser Class | Class 4 | Class 4 | Class 4 | Class 4 |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Cooling Mode | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Cleaning Modes | 6 | 6 | 6 | 6 |
| Max. Scanning Width | 100 mm | 100 mm | 100 mm | 100 mm |
| Optical Fiber Length | 3 m | 3 m | 5 m | 5 m |
| Overall Dimensions (L×W×H) | 530 × 295 × 411 mm | 530 × 295 × 411 mm | 530 × 295 × 461 mm | 530 × 295 × 461 mm |
With 200W laser power, this machine is ideal for:
Medium to heavy rust removal
Oxide layer and surface contamination cleaning
Pre-treatment before painting, coating, or welding
Equipment maintenance and metal part refurbishment
Suitable materials include carbon steel, stainless steel, aluminum, and other metal surfaces.
200W pulsed fiber laser, high cleaning efficiency
Non-contact process, no damage to base metal
Air-cooled design, low maintenance cost
Class 4 industrial laser system
Multiple cleaning modes for different applications
Maximum scanning width up to 100 mm
Portable handheld operation
Metal rust and oxide removal
Cleaning of steel plates, pipes, and structures
Weld seam cleaning and surface preparation
Machinery and equipment maintenance
Automotive and industrial component restoration
Laser cleaning is a dry, chemical-free process that produces no wastewater, no abrasives, and no secondary pollution, making it a clean and sustainable alternative to traditional rust removal methods.
The 200W Portable Pulsed Laser Cleaning Machine offers an excellent balance of power, precision, and portability. It is an ideal choice for professional metal rust removal and surface preparation applications requiring high efficiency and reliable performance.
