FL-200Y

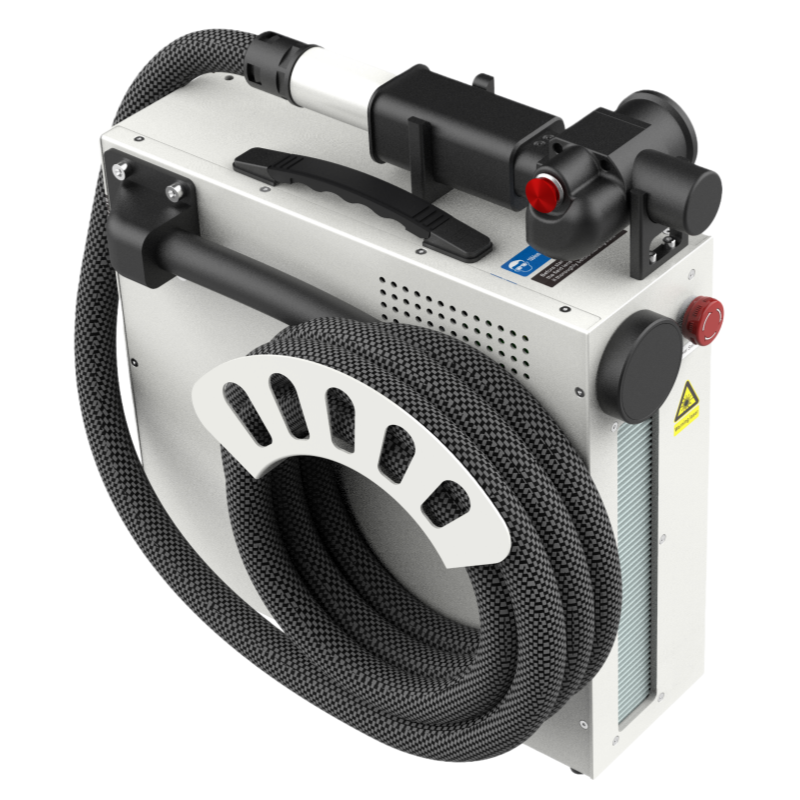

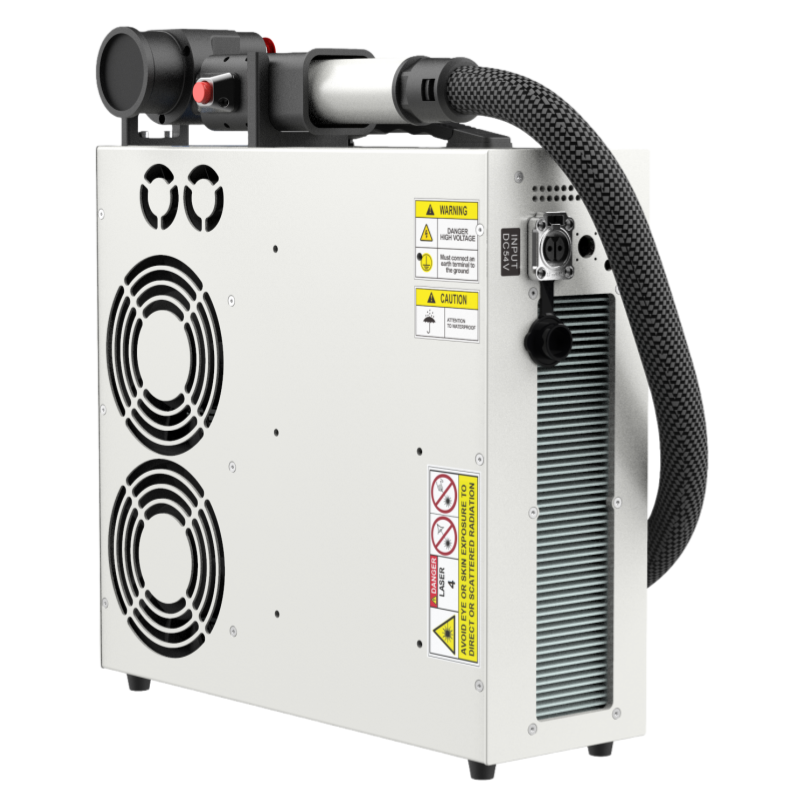

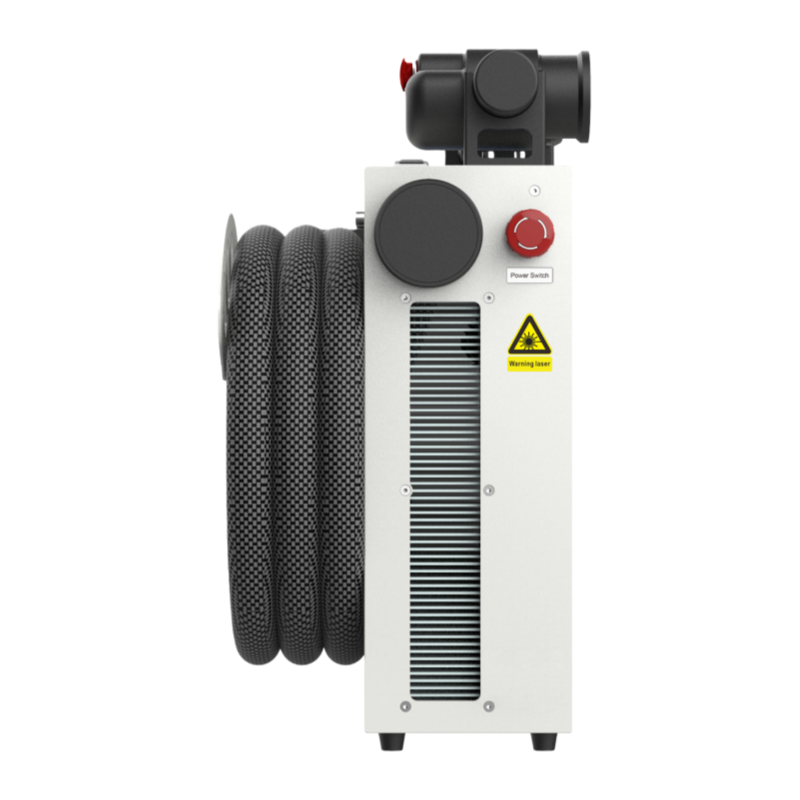

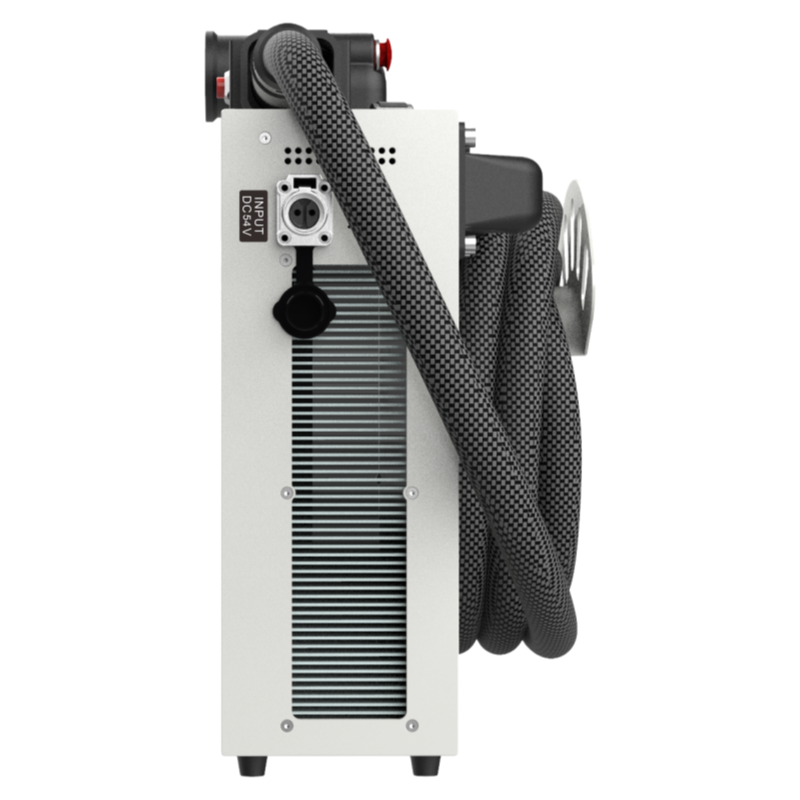

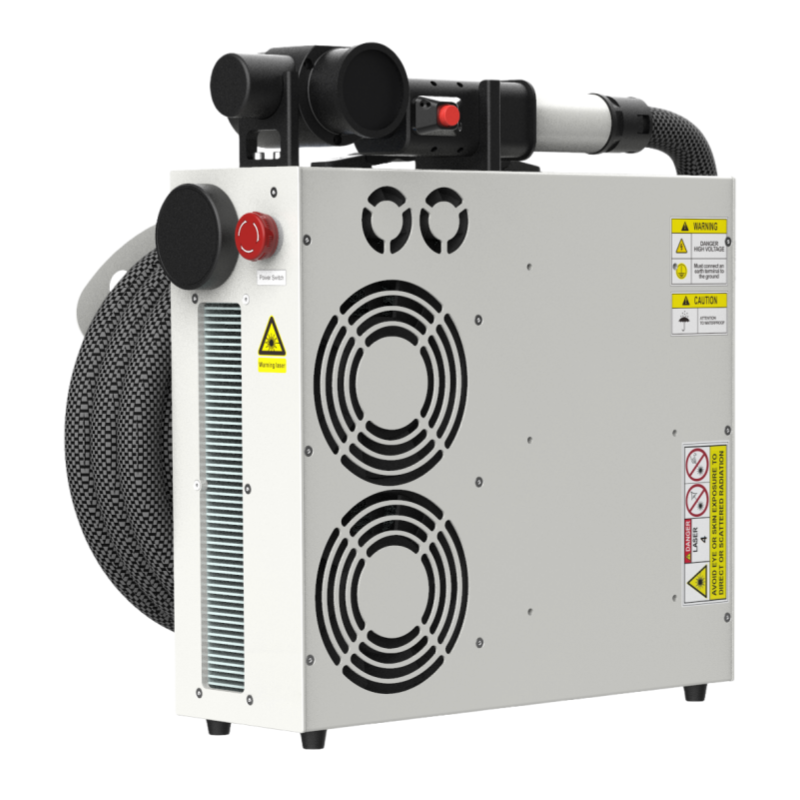

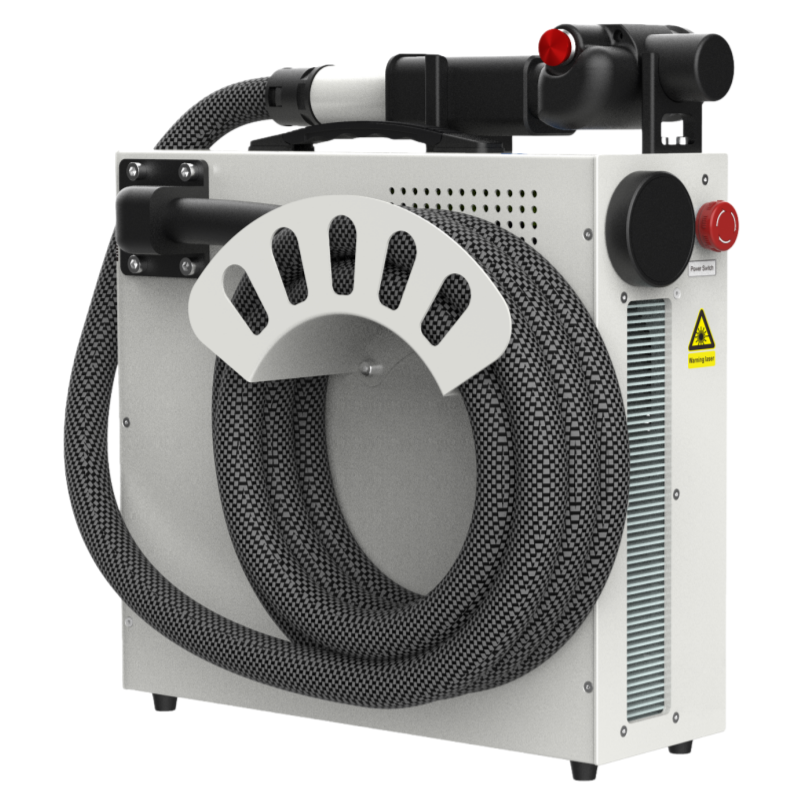

The 200W portable pulsed laser cleaning machine is a compact and lightweight solution designed for light to medium rust removal, oxide layer cleaning, oil removal, and surface preparation on metal parts. With its small size, low power consumption, and optional battery operation, it is ideal for on-site maintenance, outdoor work, and mobile cleaning applications.
Using 1064 nm pulsed fiber laser technology, the machine removes rust and contaminants through a non-contact, non-abrasive process, ensuring no damage to the base material. The forced air-cooling system provides reliable performance while keeping the overall weight low for easy portability.
| Item | FL-200Y | FL-300Y |
|---|---|---|
| Equipment Model | FL-200Y | FL-300Y |
| Laser Power | 200 W | 300 W |
| Laser Wavelength | 1064 nm | 1064 nm |
| Laser Class | Class 4 | Class 4 |
| Maximum Scanning Width | 100 mm | 100 mm |
| Cleaning Modes | 6 Modes | 6 Modes |
| Total Power Consumption | 1000 W | 1500 W |
| Cooling Mode | Forced Air Cooling | Forced Air Cooling |
| Overall Dimensions (Main Unit) | 389 × 205 × 368 mm | 389 × 205 × 368 mm |
| Weight (Main Unit) | 13.5 kg | 13.5 kg |
| Input Power Supply | AC 110–220 V / DC 24 V | AC 110–220 V / DC 24 V |
| Item | DC-24 | DC-42 |
|---|---|---|
| Battery Capacity | 23.4 Ah | 41.6 Ah |
| Output Voltage | 24 V | 24 V |
| Overall Dimensions | 373 × 276 × 150 mm | 458 × 347 × 204 mm |
| Weight | 15 kg | 22 kg |
| Model | DC-24 Battery | DC-42 Battery |
|---|---|---|
| FL-200Y | Approx. 2.5 h | Approx. 3.5 h |
| FL-300Y | Approx. 1 h | Approx. 2 h |
200W / 300W pulsed laser power
Compact & lightweight design, easy to carry
Battery-powered operation available for outdoor and mobile use
Forced air cooling, no water chiller required
Non-contact & non-abrasive cleaning, no surface damage
Low operating cost, no consumables
Small metal parts rust removal
Maintenance and repair work
Outdoor or on-site rust cleaning
Equipment surface preparation
Light mold and tool cleaning
