Features:
1. In the single-point welding, the production efficiency is 4-10 times higher than that of the ordinary laser spot welding because the space-positioning time is greatly reduced.

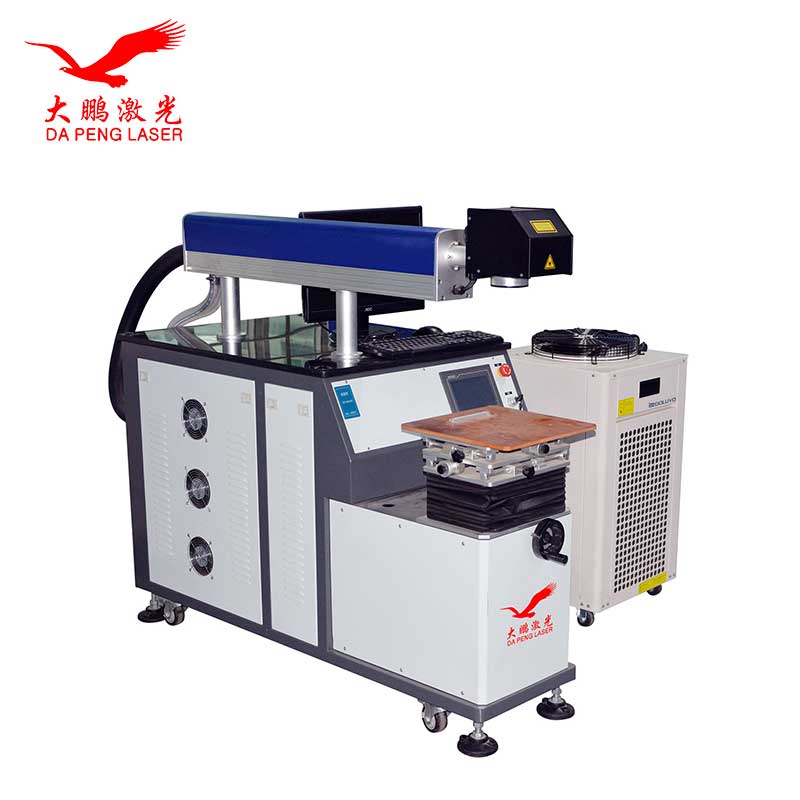

2. It consists of YAG solid-state laser, laser power supply, optical scanning system, three-dimensional adjustable workbench, industrial computer system, refrigeration system, laser indicating system, operating cabinet, etc.
3.Provide dedicated laser welding software based on windows platform.
4.Welder joints or graphics can be directly entered and edited in their dedicated software, edited by other software such as Auto CAD, Corel DRAW, and processed through their dedicated software import.
Application:
It is mainly used in high-efficiency laser spot welding or sealing welding of mobile phone shielding covers, metal mobile phone casings, metal capacitor casings, metal shielding nets in computers, razor blades, electronic connectors and other electronic products.
Features:
1. In the single-point welding, the production efficiency is 4-10 times higher than that of the ordinary laser spot welding because the space-positioning time is greatly reduced.
2. It consists of YAG solid-state laser, laser power supply, optical scanning system, three-dimensional adjustable workbench, industrial computer system, refrigeration system, laser indicating system, operating cabinet, etc.
3.Provide dedicated laser welding software based on windows platform.
4.Welder joints or graphics can be directly entered and edited in their dedicated software, edited by other software such as Auto CAD, Corel DRAW, and processed through their dedicated software import.
Application:
It is mainly used in high-efficiency laser spot welding or sealing welding of mobile phone shielding covers, metal mobile phone casings, metal capacitor casings, metal shielding nets in computers, razor blades, electronic connectors and other electronic products.
Specification:
Model | DP-MW200 |
Maximum laser power | 200W |
Pulse frequency | 1-100Hz |
Rated Power | 10KW |
Laser work material | Nd:YAG |
Focus lens | 100-150mm |
Laser wavelength | 1064nm |
Minimum spot size | 0.2mm |
Pulse width | 0.1-20ms |
Observation system | Cross microscope |
Cooling mode | Chilling machine |
Power requirement | three phase 380VAC 15% 50HZ 40A above |
Working table | 500×350mm |
Movement workbench | XY Manual, Z electric lift 300*200*300mm |
Frame | Aluminum alloy |
Dimension | Machine: 150*60*118cm Chiller:60*46*85cm |
Consumables | Xenon lamp, protective lens (Recommend buy two more units) |
