| Quantity: | |
|---|---|

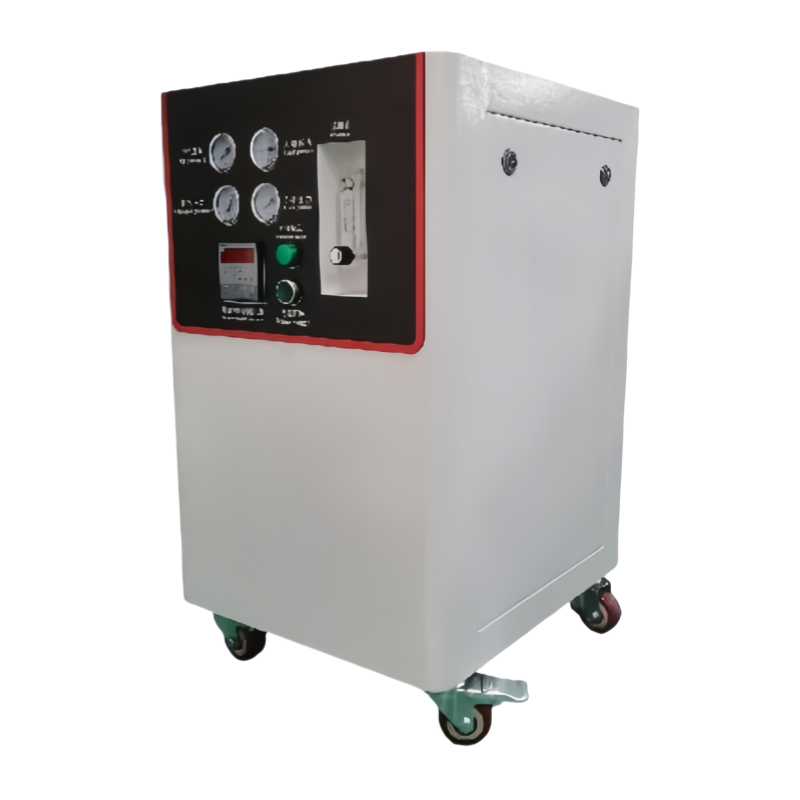

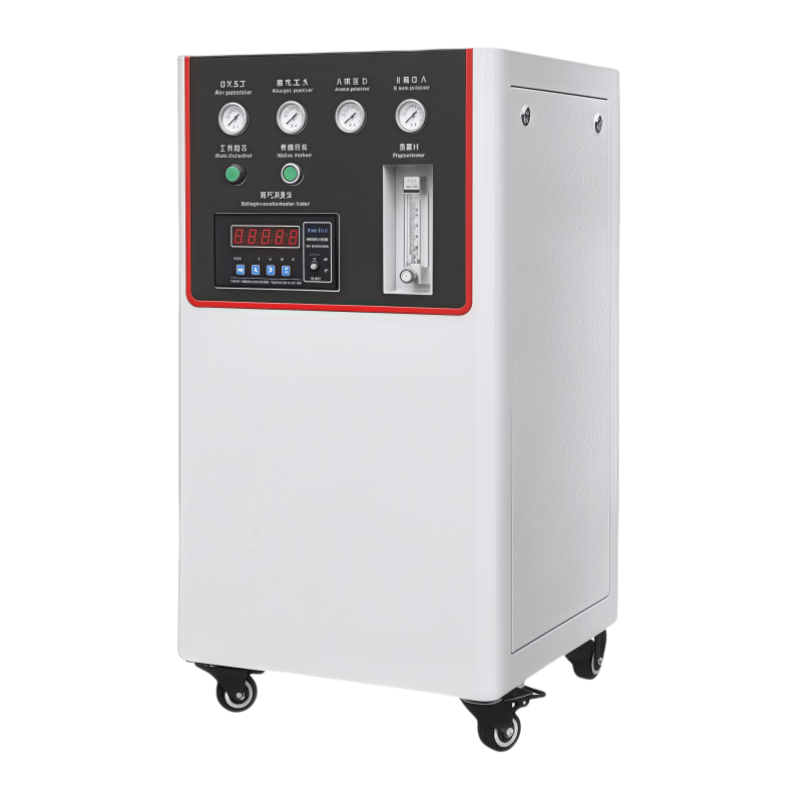

ZHN-01
(Precision Gas Supply System for Oxidation-Free Welding)
| Parameter | Specification |
|---|---|
| Nitrogen Flow Rate | 20 Nm³/h (adjustable 5-22L/min) |
| Purity Range | 95%-99.999% (digital control) |
| Intake Pressure | 0.6-0.8 MPa (compressed air required) |
| Output Pressure | 0.5-0.8 MPa (±1% stability) |
| Air Consumption | 31 m³/min (oil-free air) |
| Power Consumption | 50W (energy-saving mode) |
| Voltage/Frequency | AC 100-250V, 50/60Hz (global use) |
| Air-Nitrogen Ratio | 6.4:1 (optimized efficiency) |
| Weight | 59 kg (portable design) |

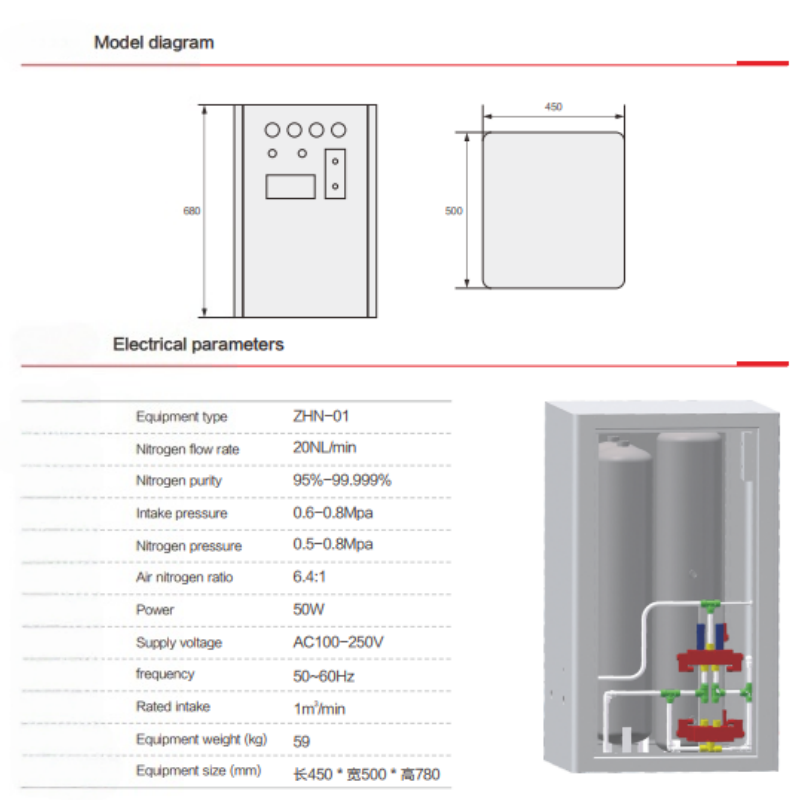

| Dimensions (L×W×H) | 450×500×780 mm |
✔ High-Precision Control
Real-time purity adjustment (95%-99.999%)
±0.5% O₂ analyzer accuracy (built-in)
✔ Energy Efficient
50W power (saves 60% vs. competitors)
Auto-standby mode during idle
✔ Compact & Robust
30% smaller footprint than standard units
Powder-coated steel casing (IP54 rating)
✔ Smart Operation
7-inch touchscreen (supports 5 languages)
Fault self-diagnosis system
| Material | Optimal Purity | Flow Rate | Weld Quality |
|---|---|---|---|
| Stainless Steel | 99.9% | 15L/min | Ra 0.4μm, no oxidation |
| Aluminum | 99.99% | 12L/min | Porosity <0.05% |
| Titanium | 99.999% | 10L/min | Medical-grade finish |
PSA nitrogen generator unit
3-stage filtration system (5μm+0.1μm+activated carbon)
Automatic drainage valve
Multilingual user manual
