ZHN-02

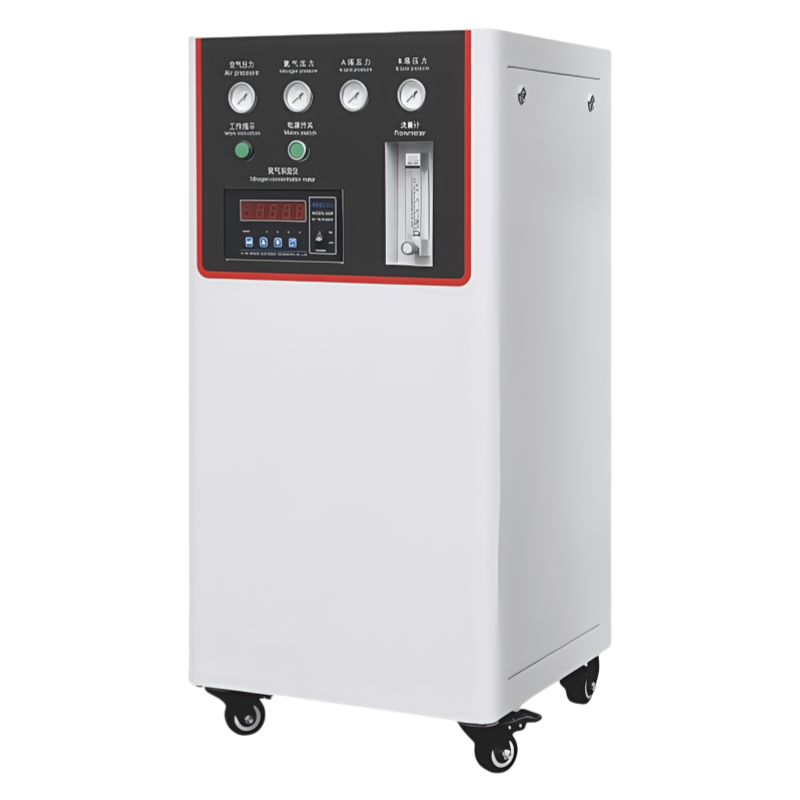

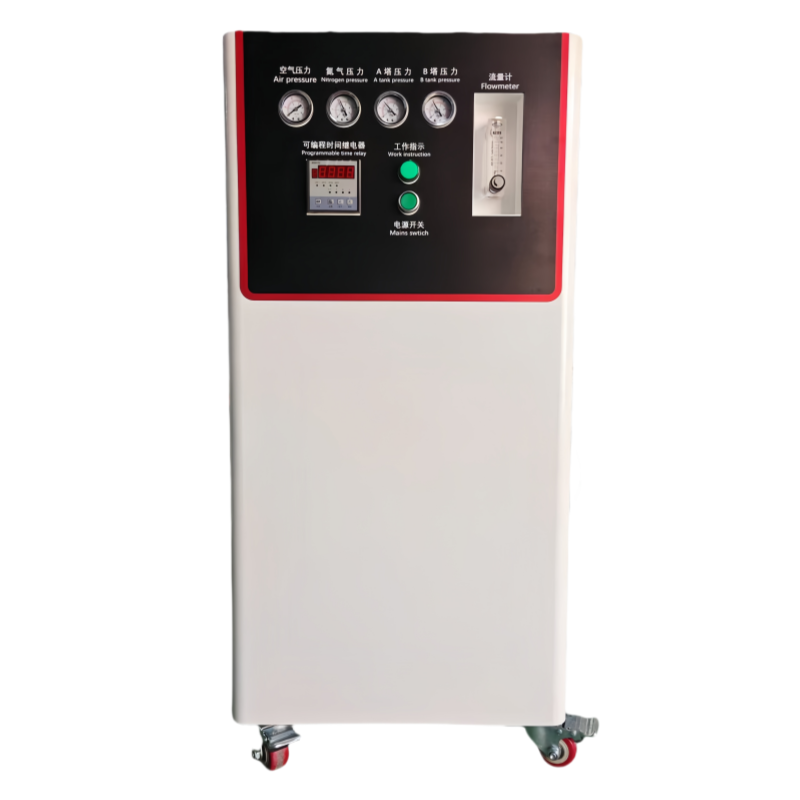

ZHN-02 Industrial Nitrogen Generator for Laser Welding
The ZHN-02 Industrial Nitrogen Generator is designed to provide a stable and high-purity nitrogen supply for 2-3 laser welding machines simultaneously. It ensures efficient and cost-effective nitrogen generation, enhancing welding quality by minimizing oxidation and improving weld seam integrity.

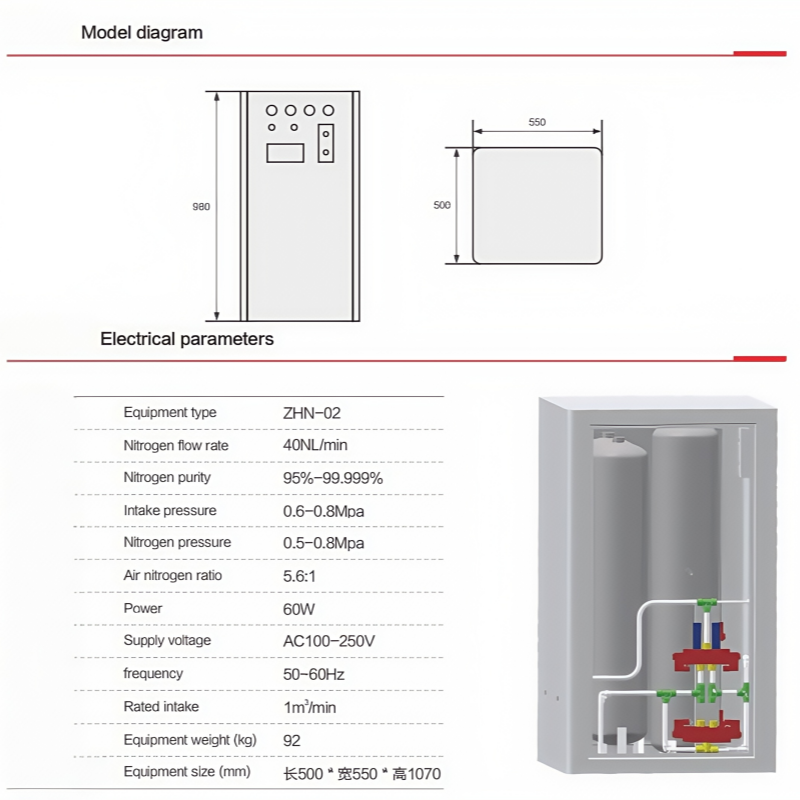

| Parameter | Value |
|---|---|
| Model | ZHN-02 |
| Nitrogen Flow Rate | 40 Nm³/min |
| Nitrogen Purity | 95%~99.999% |
| Intake Pressure | 0.6~0.8 MPa |
| Output Pressure | 0.5~0.8 MPa |
| Air-to-Nitrogen Ratio | 5.6:1 |
| Power Consumption | 60W |
| Supply Voltage | AC 100-250V |
| Frequency | 50~60Hz |
| Rated Air Intake | 31 m³/min |
| Weight | 92 kg |
| Dimensions (L×W×H) | 500 × 550 × 1070 mm |
Multi-Machine Support: Supplies nitrogen for 2-3 laser welders simultaneously (40 Nm³/min).
Precision Purity: Adjustable 95%~99.999% purity for oxidation-free welds.
Compact Footprint: Space-efficient design (0.5×0.55×1.07m) for workshop integration.
Energy Efficient: Low power draw (60W) via PSA technology.
Industrial Durability: Heavy-duty construction (92 kg).
High Purity Output: Delivers nitrogen with purity levels up to 99.99%, suitable for precision laser welding applications.
Large Flow Capacity: Supports the nitrogen demand of 2-3 laser welding machines concurrently, ensuring uninterrupted operation.
Energy-Efficient Design: Advanced PSA (Pressure Swing Adsorption) technology reduces power consumption while maintaining consistent performance.
Compact & Robust Structure: Space-saving industrial design with durable components for long-term reliability.
Intelligent Control System: Automated operation with real-time monitoring of pressure, flow, and purity for optimal performance.
Low Maintenance: Minimal upkeep required due to high-quality filtration and adsorption materials.
Laser Welding: Prevents oxidation for cleaner, stronger welds in metals like stainless steel, aluminum, and titanium.
Laser Cutting: Improves cut quality by reducing slag and burr formation.
Electronics & Semiconductor Manufacturing: Provides inert atmosphere protection for sensitive processes.
Nitrogen Flow Rate: Adjustable to match demand (suitable for 2-3 laser welders).
Output Pressure: 0.5~0.8 MPa (customizable).
Dew Point: ≤ -40°C.
Power Supply: Standard industrial voltage (custom options available).
The ZHN-02 ensures a reliable, on-site nitrogen supply, eliminating dependency on high-pressure cylinders or liquid nitrogen, reducing operational costs, and improving workflow efficiency.
