HN-QX300(Y)
Model: HN-QX300(Y)

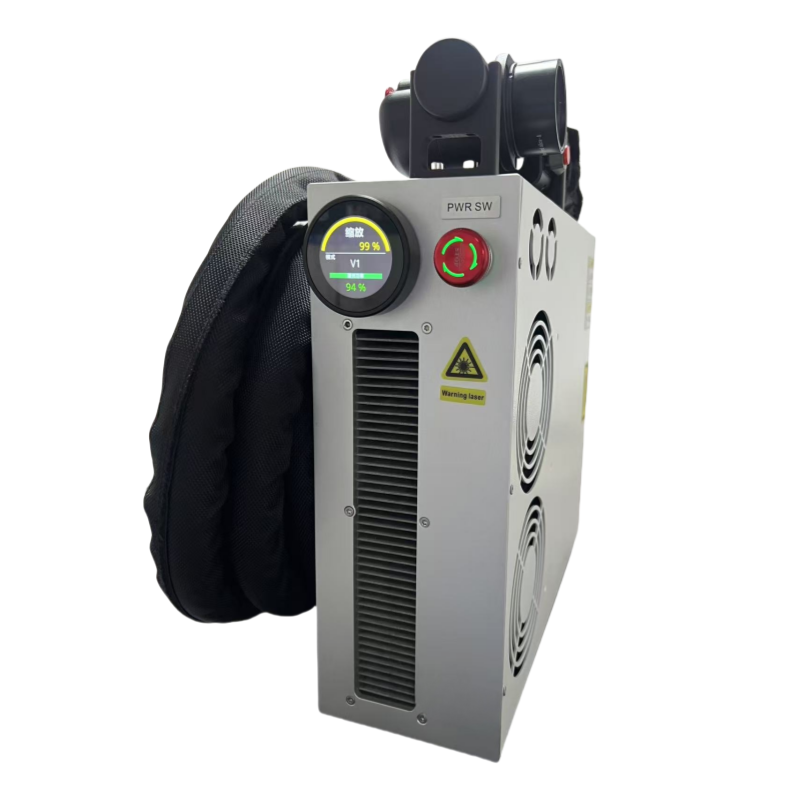

The HN-QX300(Y) is a lightweight, portable laser cleaning system designed for efficient removal of rust, paint, oxides, oil, and other surface contaminants. Powered by a 300W pulsed fiber laser, it offers powerful, non-contact cleaning with minimal damage to base materials. Its forced air cooling system eliminates the need for water cooling, enhancing portability and ease of use on-site.
Laser Power: 300W (Pulsed)
Laser Wavelength: 1064nm
Laser Class: Class 4
Cleaning Width: 100mm
Cleaning Modes: 6 selectable modes
Cooling Method: Forced air cooling (no water chiller needed)
Input Power Supply: AC110-220V
Machine Power Consumption: 1000W
Fiber Cable Length: 5 meters
Dimensions: 370 × 205 × 390 mm (L × W × H)
Weight: 13.5 kg
Enables cordless operation for field work.
| Model | DC-24 | DC-42 |
|---|---|---|
| Voltage | DC60V | DC60V |
| Capacity | 23.4Ah | 41.6Ah |
| Current | 20A | 20A |
| Battery Life | ~1 hour | ~2 hours |
| Weight | 15 kg | 22 kg |
| Dimensions | 373 × 276 × 150 mm | 458 × 347 × 206 mm |
Rust and oxide removal
Paint stripping
Surface preparation before welding or coating
Restoration of metal parts
Oil and grease cleaning
The HN-QX300(Y) laser cleaning machine is a compact, portable, and air-cooled system designed to remove rust, paint, oil, oxidation, and other contaminants from various surfaces with precision and without damage to the substrate. Its pulsed laser technology provides safe, efficient, and environmentally friendly cleaning for both industrial and delicate applications.
Automotive Manufacturing & Repair
Cleaning oil, rust, and welding residues on parts such as engine blocks, tools, or brackets.
Mold & Die Industry
Removes rubber/plastic residue, release agents, and carbon buildup from precision molds without abrasion.
Shipbuilding & Railway
Rust and paint removal from large steel structures and weld prep for hulls, frames, and rails.
Metal Processing & Fabrication
Removal of burrs, oxide layers, and preparation of metal surfaces before coating or welding.
Cultural Heritage & Art Restoration
Non-contact cleaning of oxidized or soiled surfaces without damaging fragile artifacts.
Aerospace
Precision cleaning of components prior to coating or inspection.
Sheet metals (carbon steel, stainless steel, aluminum)
Tubes, castings, forged parts
Laser cut parts with oxide layers
Painted or oily machine components
Precision molds and dies
Welded structures
| Task | Description |
|---|---|
| Rust Removal | Effectively removes all levels of corrosion, revealing clean metal beneath. |
| Paint Stripping | Strips coatings or adhesives without damaging the substrate. |
| Oil & Grease Cleaning | Removes industrial oils and lubricants from mechanical parts. |
| Weld Cleaning | Cleans weld seams and splatter zones, enhancing weld quality. |
| Surface Preparation | Prepares surfaces for painting, coating, or bonding with improved adhesion. |
| Artifact Restoration | Gently removes dirt and oxides from cultural relics and sculptures. |
Non-contact Process: No mechanical force or damage to surfaces
Eco-friendly: No chemicals, abrasives, or secondary waste
High Selectivity: Precisely removes contaminants without harming base material
Efficient: 300W power supports rapid cleaning for industrial tasks
Portable Design: Lightweight (13.5 kg), battery-supported for outdoor/on-site use
Low Operating Cost: Long laser life, minimal maintenance
