FL-A300

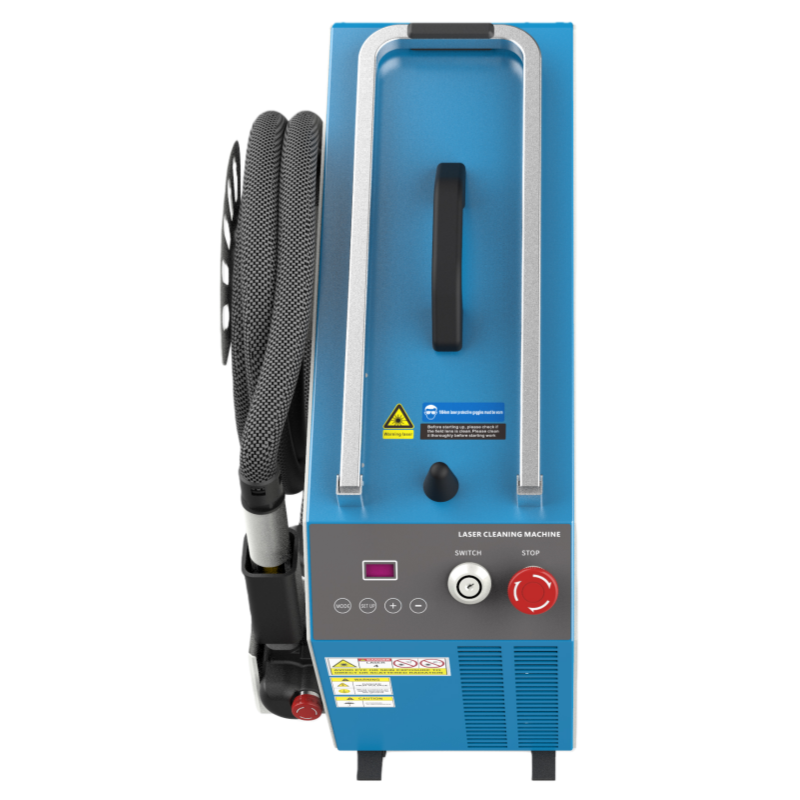

The 300W Portable Air-Cooled Pulsed Laser Cleaning Machine is an advanced, eco-friendly surface treatment solution designed for efficient and precise cleaning of various materials. Using pulsed fiber laser technology, this handheld laser cleaner removes rust, paint, oil, grease, oxide layers and surface contaminants without damaging the base material.
With an air-cooled system, the machine does not require a water chiller, making it compact, lightweight and ideal for on-site, workshop and mobile applications. Its ergonomic handheld laser gun allows flexible operation even in narrow or complex working areas.
| Item | FL-A50 | FL-A100 | FL-A200 | FL-A300 |
|---|---|---|---|---|
| Model | FL-A50 | FL-A100 | FL-A200 | FL-A300 |
| Rated Voltage | 220V~ | 220V~ | 220V~ | 220V~ |
| Rated Frequency | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz | 50 / 60 Hz |
| Total Power | 300 W | 500 W | 1000 W | 1500 W |
| Laser Power | 50 W | 100 W | 200 W | 300 W |
| Laser Class | Class 4 | Class 4 | Class 4 | Class 4 |
| Laser Wavelength | 1064 nm | 1064 nm | 1064 nm | 1064 nm |
| Cooling Mode | Air Cooling | Air Cooling | Air Cooling | Air Cooling |
| Cleaning Modes | 6 | 6 | 6 | 6 |
| Max. Scanning Width | 100 mm | 100 mm | 100 mm | 100 mm |
| Optical Fiber Length | 3 m | 3 m | 5 m | 5 m |
| Overall Dimensions (L×W×H) | 530 × 295 × 411 mm | 530 × 295 × 411 mm | 530 × 295 × 461 mm | 530 × 295 × 461 mm |
300W Pulsed Fiber Laser Output
High peak power pulses ensure efficient removal of surface contaminants while protecting the substrate.
Air-cooled Design
No water chiller required. Compact structure, low maintenance, ideal for on-site and mobile applications.
Handheld & Portable
Lightweight laser cleaning gun with ergonomic design allows long-time operation and flexible use.
Non-contact & Non-abrasive Cleaning
No mechanical stress, no chemical agents, no secondary pollution.
Multiple Scanning Modes
Supports linear, rectangular, circular and custom scan patterns to match different cleaning tasks.
Easy Operation
Intelligent control system with adjustable parameters (power, frequency, scan width, speed).
Energy-efficient & Eco-friendly
No consumables such as sand, chemicals or solvents; clean and green technology.
Laser Power: 300W (Pulsed)
Laser Type: Pulsed Fiber Laser
Wavelength: ~1064 nm
Cooling Method: Air Cooling
Operation Mode: Handheld / Portable
Scanning System: High-speed galvanometer scanner
Power Supply: AC 110V / 220V, 50/60Hz
Fiber Length: 5 m (customizable)
Machine Weight: Approx. 20–30 kg (depending on configuration)
Rust removal on steel, carbon steel, stainless steel and iron
Paint and coating stripping
Oil, grease and dirt cleaning before welding or coating
Oxide layer removal after heat treatment or welding
Mold and tooling cleaning
Automotive parts restoration
Shipbuilding, railway and steel structure maintenance
Cultural heritage and surface restoration (non-destructive cleaning)
No damage to base material
No consumables, low operating cost
High precision and controllability
Safe, clean and environmentally friendly
Suitable for complex shapes and precision parts
Manufacturers, maintenance companies, workshops, automotive repair, metal fabrication plants, shipyards and on-site service providers seeking a portable, efficient and professional laser cleaning solution.
