FL-300Y

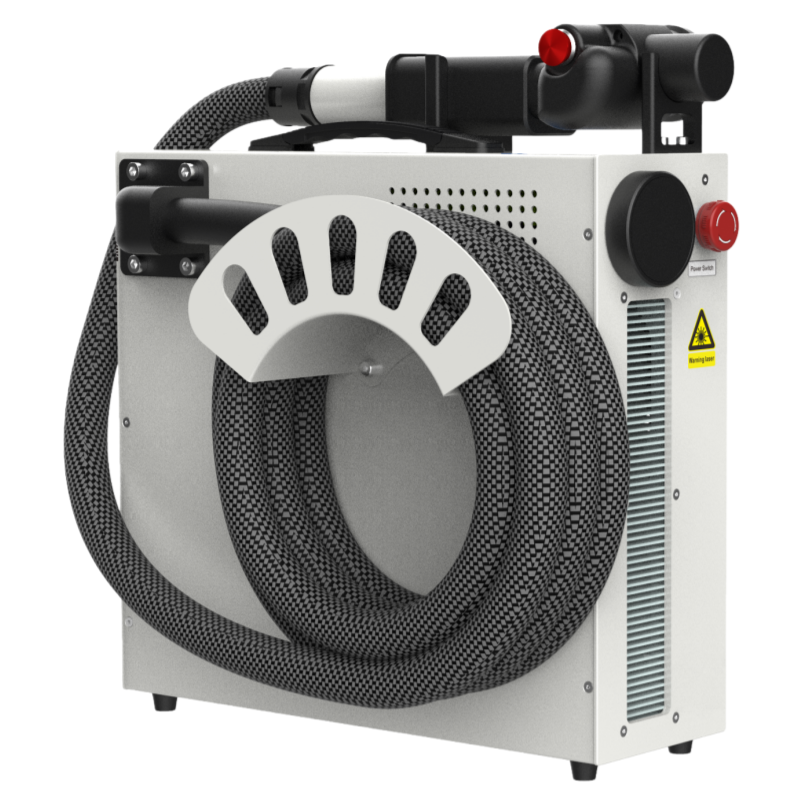

The 300W Pulse Laser Cleaning Machine is a compact, portable, and high-efficiency laser cleaning system designed for non-contact surface treatment. It is widely used for rust removal, paint stripping, oil and grease cleaning, oxide layer removal, and surface preparation on metal materials.
By using high-energy pulsed laser technology, contaminants are instantly vaporized or peeled off without damaging the base material. Compared with traditional methods such as sandblasting or chemical cleaning, laser cleaning is environment-friendly, precise, and maintenance-free.
300W pulsed laser power with stable and reliable performance
Portable and lightweight design, easy to move and operate on site
Non-contact cleaning, no abrasion to the substrate
No consumables, low operating cost
Adjustable parameters: power, frequency, scanning speed, and patterns
High cleaning precision, suitable for localized or detailed cleaning areas
Rust removal from steel, carbon steel, stainless steel, and aluminum
Paint and coating removal
Oil, grease, and contamination cleaning
Mold and tooling maintenance
Automotive parts, shipbuilding, machinery maintenance
Weld seam and surface pre-treatment
Laser Power: 300W (Pulsed)
Laser Wavelength: 1064 nm
Cooling Method: Air-cooled
Scanning Width: Up to 100 mm
Power Supply: AC 220V / 110V, 50/60Hz
Operation Mode: Handheld / Portable
Environmentally friendly, no chemicals or secondary pollution
High efficiency with excellent cleaning consistency
Safe and easy operation with minimal training
Ideal for both industrial maintenance and mobile applications
| Item | FL-200Y | FL-300Y |
|---|---|---|
| Equipment Model | FL-200Y | FL-300Y |
| Laser Power | 200 W | 300 W |
| Laser Wavelength | 1064 nm | 1064 nm |
| Laser Class | Class 4 | Class 4 |
| Maximum Scanning Width | 100 mm | 100 mm |
| Cleaning Modes | 6 Modes | 6 Modes |
| Total Power Consumption | 1000 W | 1500 W |
| Cooling Mode | Forced Air Cooling | Forced Air Cooling |
| Overall Dimensions (Main Unit) | 389 × 205 × 368 mm | 389 × 205 × 368 mm |
| Weight (Main Unit) | 13.5 kg | 13.5 kg |
| Input Power Supply | AC 110–220 V / DC 24 V | AC 110–220 V / DC 24 V |
| Item | DC-24 | DC-42 |
|---|---|---|
| Battery Capacity | 23.4 Ah | 41.6 Ah |
| Output Voltage | 24 V | 24 V |
| Overall Dimensions | 373 × 276 × 150 mm | 458 × 347 × 204 mm |
| Weight | 15 kg | 22 kg |
| Model | DC-24 Battery | DC-42 Battery |
|---|---|---|
| FL-200Y | Approx. 2.5 h | Approx. 3.5 h |
| FL-300Y | Approx. 1 h | Approx. 2 h |
200W / 300W pulsed laser power
Compact & lightweight design, easy to carry
Battery-powered operation available for outdoor and mobile use
Forced air cooling, no water chiller required
Non-contact & non-abrasive cleaning, no surface damage
Low operating cost, no consumables
Small metal parts rust removal
Maintenance and repair work
Outdoor or on-site rust cleaning
Equipment surface preparation
Light mold and tool cleaning
