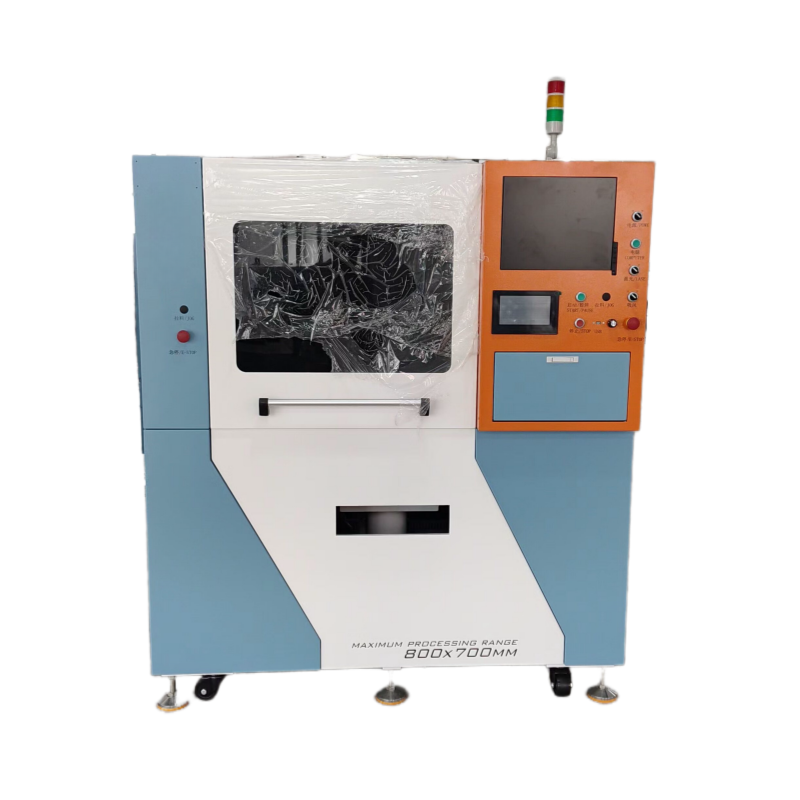

JG-7080D/7080DC
Item: JG-7080D/7080DC
Main Application: Cutting Polarizer Film, Optical Film, Backlight Film, Foam, and other Optical Materials.
| Item | Unit | JG-7080D/7080DC |
|---|---|---|
| Feed Width | mm | 700 |
| Processing Range (WxL) | mm | 700 x 800 |
| Cutting Speed | mm/s | 0-400 |
| Laser Type | - | CO₂ Metal Laser |
| Laser Power | W | 30/55 |
| Laser Wavelength | μm | 9.3 |
| Cutting Accuracy | mm | 0.03 |
| Positioning Accuracy | mm | 0.01 |
| Total Power | kW | AC220V4.0 |
| Net Weight | kg | 1000 |
| Main Engine Size (LxWxH) | mm | 1450 x 1300 x 1400 |
| Graphic Format Support | - | DXF, AI, PLT |
| Sucker Type | - | Vacuum Chuck |
| Cutting Energy Control | - | Software-controlled, 0-99% |
| Heat Dissipation Mode | - | Air Cooling |
| Operating Temperature | °C | 5-30 |
3M, EVA, PET, PC, PAPER, POLO, OCA (Optical Clear Adhesive), Polarizer Film, Optical Film, Backlight, Foam, Leather, and other Non-Metallic Materials.
High Precision: With a cutting accuracy of up to 0.03mm, this machine ensures precise cuts for complex designs.
Versatile Cutting Range: Suitable for a wide range of materials including optical films, backlight films, and non-metallic materials.
Efficient Laser Power: The CO₂ laser with up to 55W of power offers clean, sharp cuts with excellent energy efficiency.
Compact Design: The machine’s compact size (1450 x 1300 x 1400 mm) fits in various work environments.
Vacuum Chuck System: Ensures stable and precise material holding during the cutting process.
Easy to Use: Compatible with common graphic formats such as DXF, AI, and PLT for quick setup and operation.
Heat Management: Efficient air cooling system keeps the machine running smoothly and ensures long operational lifetimes.
Wide Range of Applications: Ideal for cutting various types of films and foam materials used in industries such as electronics, optics, and automotive
