MSP-M800

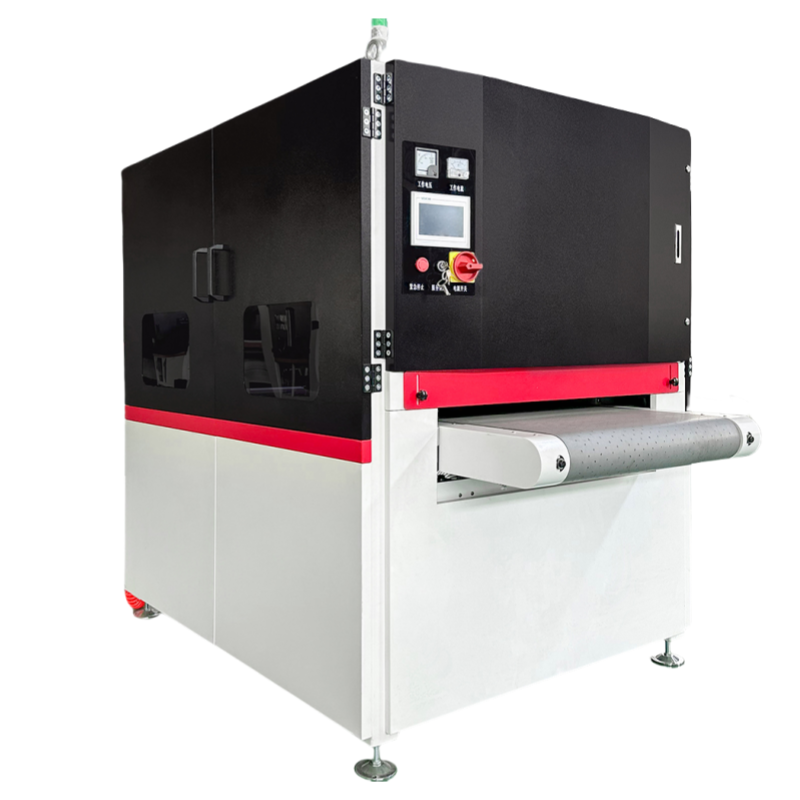

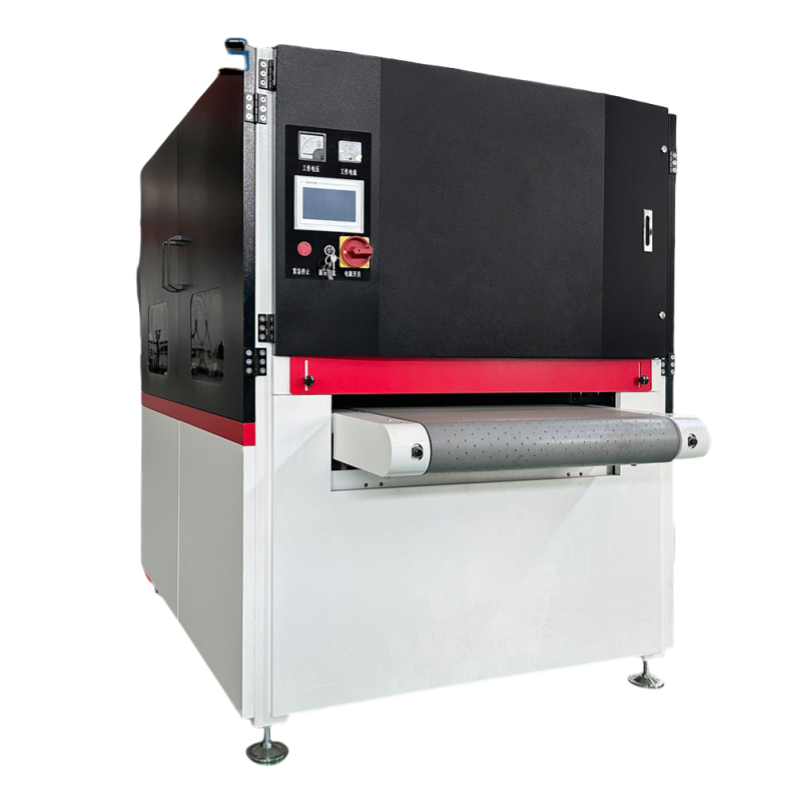

800mm Deburring and Edge Rounding Machine for Sheared Sheet Metal
The 800mm Deburring Machine is a highly efficient and reliable solution designed for removing burrs and sharp edges from sheet metal parts after shearing. This machine ensures smooth edges, improved safety, and consistent surface quality—making it ideal for downstream processing such as welding, painting, or powder coating.
It is compatible with a wide range of metals including carbon steel, stainless steel, aluminum, and other non-ferrous materials. The machine uses a combination of abrasive belts and rotary brushes to remove shearing burrs and round the edges uniformly.
Working Width: 800mm
Material Compatibility: Carbon steel, stainless steel, aluminum, copper, etc.
Processing Range: From 0.5mm to 80mm thickness
Edge Rounding Radius: Up to R0.5mm
Deburring System: Abrasive belt + rotary brush + optional vacuum table
Brush Type: Roller or disc brushes for uniform deburring
Speed Control: Variable feed speed and brush speed (frequency inverter)
Dust Collection: Integrated dust extraction system
Control System: Touchscreen HMI interface with memory settings
Safety: Emergency stop and overload protection
Deburring of sheared sheet metal edges
Rounding internal and external corners after shearing
Preparing surfaces for painting or coating
Improving edge quality for safe handling
Finishing aluminum and stainless steel blanks
Applicable Materials:
Carbon steel, stainless steel, aluminum plates, copper plates, and various non-ferrous metals.
Main Functions:
The MSP-M800 is a dry-type deburring machine equipped with four sets of planetary universal abrasive roller brushes. It is specifically designed for removing burrs from part edges and holes, especially those caused by stamping, shearing, or laser cutting processes. It provides complete 360° deburring in a single pass and produces a uniform small-radius edge rounding effect (R angle). The deburring process is safe, reliable, and enhances the overall surface quality without damaging the workpiece.
The machine uses four groups of planetary universal abrasive roller brushes. Adjacent brushes rotate in opposite directions (self-rotation and planetary rotation), creating high-speed centrifugal grinding, scraping, cutting, and filing actions on part edges and inner holes.
This ensures full coverage deburring without blind spots, while preserving dimensional accuracy. The machine achieves uniform R angle edge rounding, with the radius adjustable by selecting different abrasive materials and brush configurations.
This through-feed machine is particularly effective for laser-cut or CNC-punched sheet metal parts with protective film. It removes burrs thoroughly without damaging the film or scratching the sheet. The specially designed soft abrasive filaments target only burrs, making the machine ideal for scratch-free deburring of delicate sheet metal parts, including irregularly shaped components.
The powerful vacuum table fixes parts securely during processing. Parts as small as 50mm × 50mm (without holes) can be processed directly without additional tooling. Special jigs can be provided for irregular parts.
Conveyor feed is variable-frequency adjustable for speed control.
The machine is equipped with a wet-type dust collector, using a top-mounted high-pressure blower to extract grinding dust into a sealed chamber. Water mist traps dust particles, and clean air is exhausted into the atmosphere.
This system:
Improves the working environment.
Reduces safety hazards.
Enables environmentally friendly recycling of metal powder.
Increased Productivity:
Continuous feed-through processing meets high-volume production demands.
Superior Product Quality:
Consistent and uniform surface finishing far exceeds manual results.
Lower Operational Costs:
Much lower cost per unit area compared to manual deburring.
Safe and Eco-friendly:
Effective dust collection ensures operator safety and a cleaner work environment.
| Item | Specification |
|---|---|
| Max. Working Width | ≤ 780mm |
| Processing Thickness | 0.5~80mm |
| Min. Part Size | 50mm × 50mm |
| Total Power | 22 kW |
| Brush Size | Φ300mm × 300mm |
| Feed Speed | 0.5~6 m/min (Variable frequency) |
| Brush Self-Rotation Speed | 8~26 m/s (Variable frequency) |
| Brush Planetary Rotation Speed | 1~15 r/min (Variable frequency) |
| No. of Planetary Revolution Heads | 1 |
| No. of Planetary Rotation Brush Heads | 4 |
| Servo Thickness Adjustment Accuracy | 0.01mm |
| Abrasive Media | Roller brushes |
| Dust Extraction Volume | 3000 m³/h |
| Machine Dimensions | L2350mm × W1750mm × H2150mm |
| Machine Weight | Approx. 1.6T |
Installation Space: At least 4m × 3.5m (flat and level).
Power Supply: 380V, 50Hz (±10%).
Compressed Air: Clean and dry compressed air required.
