PM660

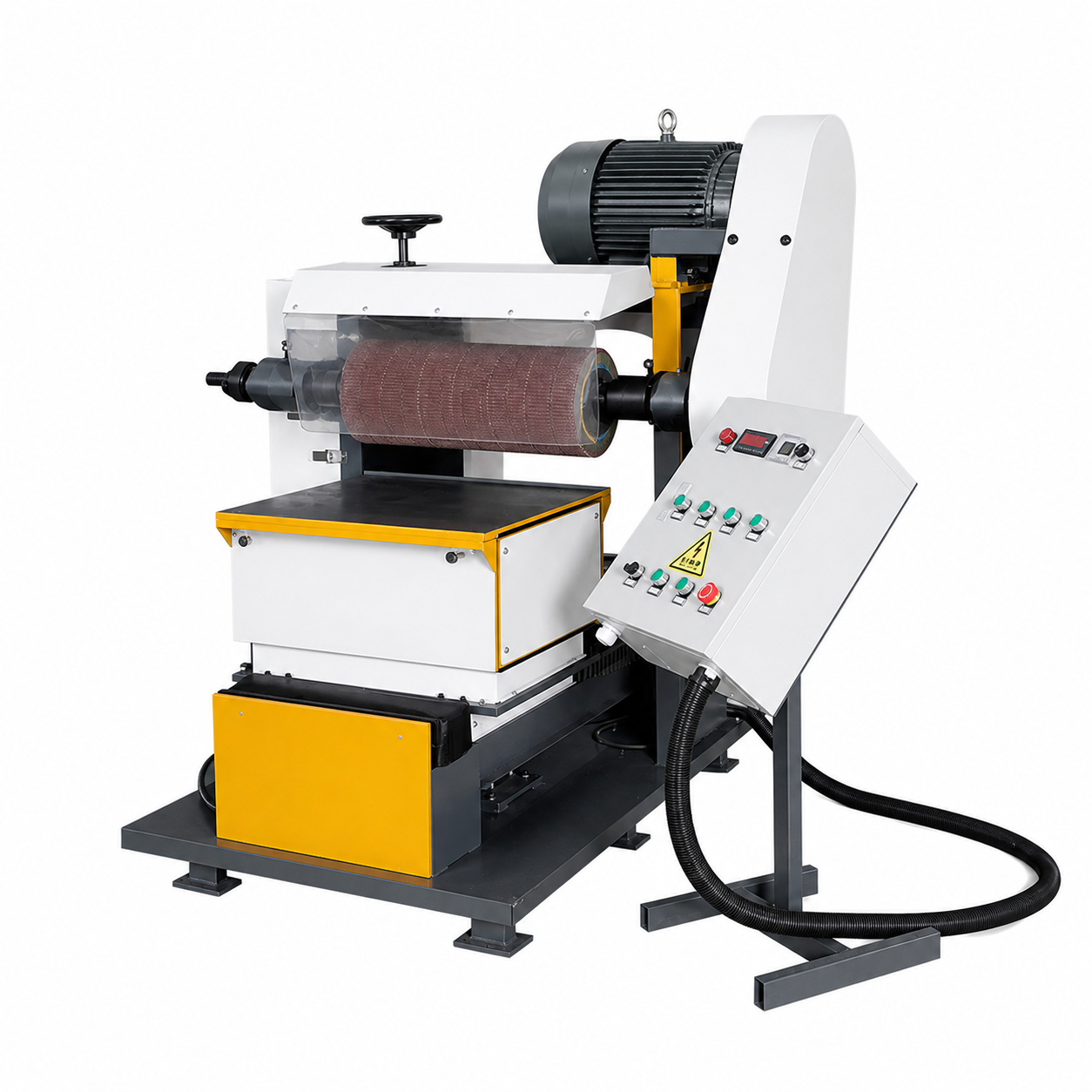

The 600×600mm Automatic Flat Metal Polishing Machine is specially designed for surface polishing and mirror finishing of flat metal products, including stainless steel plates, metal sheets, hardware parts, kitchenware components, and other flat workpieces.
The machine adopts a PLC automatic control system, with a 600mm wide polishing wheel, pneumatic polishing head lifting, adjustable polishing pressure, and a movable worktable. The worktable can move forward and backward along the guide rail and perform left-right oscillating movement, ensuring uniform polishing results and high surface quality.
It is suitable for applications requiring high gloss, smooth surface, and consistent polishing performance.
Maximum polishing area: 600 × 600mm
Maximum workpiece size: 600 × 600 × 100mm
Suitable for flat metal components and stainless steel products
Worktable movement controlled by PLC
Front and rear movement through precision guide rail system
Left and right oscillation movement for uniform polishing
Adjustable working stroke according to different products
Polishing wheel width: 600mm
Polishing wheel size: Ø250 × 600mm
Suitable for large-area flat surface polishing
Provides consistent finishing quality
Polishing head adopts pneumatic lifting structure
Manual handwheel adjustment for polishing wheel compensation
Easy adjustment according to polishing wheel wear and product thickness
PLC control system for automatic operation
Adjustable polishing cycles
Automatic forward/backward reciprocating polishing
Automatic stop after reaching preset polishing times
Equipped with liquid polishing wax pressure barrel
Manual wax spraying operation
Suitable for different polishing processes and surface requirements
| Item | Specification |
|---|---|
| Machine Type | Automatic Flat Metal Buffing Machine |
| Application | Stainless Steel / Metal Flat Surface Polishing |
| Working Table Size | 600 × 600mm |
| Maximum Workpiece Size | 600 × 600 × 100mm |
| Polishing Wheel Size | Ø250 × 600mm |
| Polishing Wheel Width | 600mm |
| Polishing Motor | 11KW |
| Oscillation Motor | 370W |
| Worktable Forward/Backward Motor | 370W |
| Control System | PLC Automatic Control |
| PLC Brand | Delta |
| Polishing Head Lifting | Pneumatic Cylinder + Manual Adjustment |
| Wax System | Manual Liquid Wax Spraying |
| Machine Dimension | 1500(L) × 1400(W) × 1600(H) mm |
| Worktable Movement | Front/Rear + Left/Right Oscillation |
| Operation Mode | Automatic / Manual |
| Power Supply | Customized according to customer requirement |
| Component | Quantity | Specification / Brand |
|---|---|---|
| Main Polishing Motor | 1 set | 11KW Dongguan Motor |
| Oscillation Motor | 1 set | 370W Dongguan Motor |
| Forward/Backward Feeding Motor | 1 set | 370W Dongguan Motor |
| Pressure Wax Tank | 1 set | Liquid Wax Supply |
| Polishing Wheel Holder | 1 set | Customized |
| PLC Controller | 1 set | Delta |
| Electrical Control Cabinet | 1 set | Customized |
| Polishing Wheel | 1 set | Ø250×600mm Customized |
| Machine Frame | 1 set | Heavy Duty Steel Structure |
Place the workpiece on the polishing table.
Set polishing parameters through PLC controller.
Polishing wheel automatically lowers to working position.
Worktable moves forward and backward while oscillating left and right.
The polishing wheel performs repeated reciprocating polishing.
After reaching the preset polishing cycles, the machine automatically stops.
Polishing head rises and the finished product can be removed.
Suitable for polishing:
Stainless steel sheets
Stainless steel panels
Metal plates
Kitchenware parts
Stainless steel bowls and covers
Hardware components
Decorative metal parts
Flat aluminum and steel products
✔ Large 600mm polishing width for high efficiency
✔ Automatic PLC-controlled operation
✔ Uniform mirror finishing quality
✔ Suitable for mass production
✔ Adjustable polishing pressure
✔ Reduced labor cost compared with manual buffing
✔ Stable performance and easy maintenance
