MSP-M1000

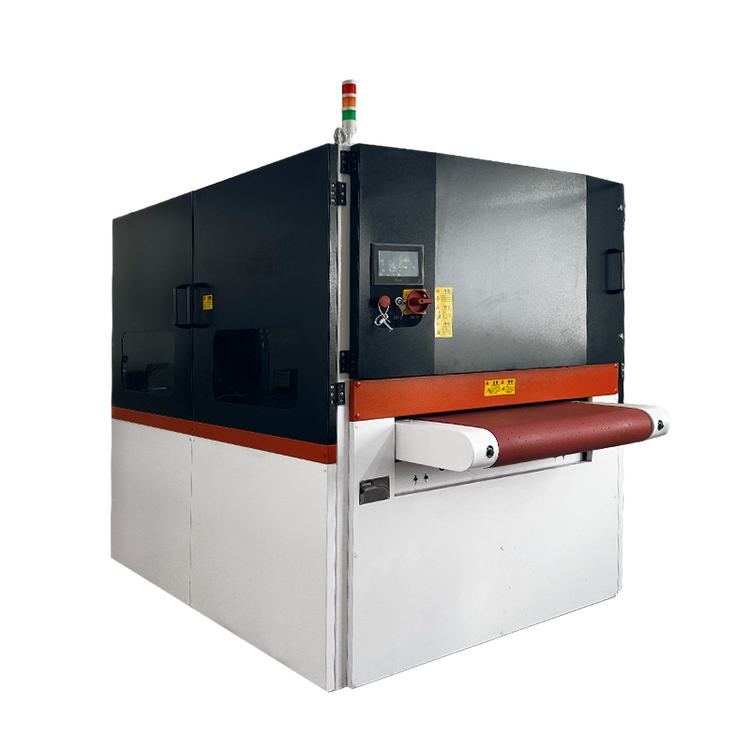

The MSP-M1000 1000mm Edge Rounding Machine is an industrial-grade equipment designed for deburring and radiusing the edges of metal plates after cutting processes (e.g., laser, plasma, or flame cutting). It effectively removes sharp burrs and creates smooth, rounded edges, significantly improving workplace safety and preparing the metal surface for subsequent finishing stages like painting or powder coating. The machine is ideal for metal fabrication shops handling large and heavy plates, ensuring consistent quality and operational efficiency.
| Parameter | Specification |
|---|---|
| Model | MSP-M1000 |
| Compatible Materials | Steel, Aluminum, Stainless Steel |
| Process | Edge Rounding |
| Material Thickness Range | 0 - 80 mm |
| Max. Material Width | 1000 mm |
| Min. Part Dimensions | 50 × 50 mm |
| Max. Material Weight | 500 kg |
| Conveyor Speed | 0.5 - 6.0 m/min (adjustable) |

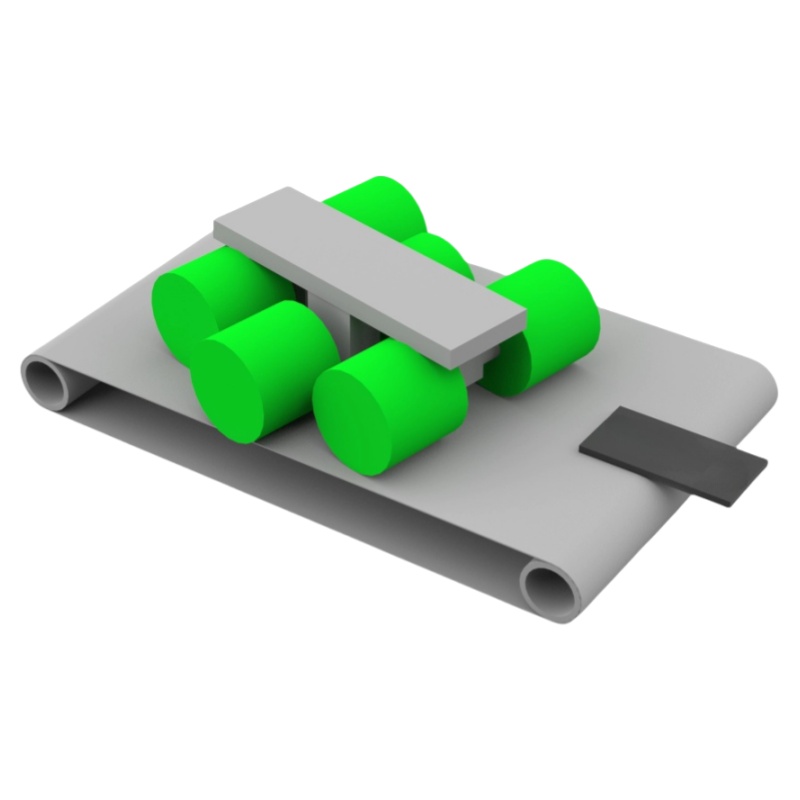

| Flap Wheels | 6 × Ø300 × 300 mm |
| Working Height | 80 mm |
| Power Consumption | 12.7 kW / 20.2 kW |
| Holder System | Magnetic (Vacuum Optional) |
| Min. Deduster Requirement | 3500 m³/h |
| Machine Weight | 2800 kg |
High-Capacity Processing: Handles large plates up to 1000 mm wide and 500 kg heavy, with a material thickness range of 0-80 mm, suitable for substantial metal fabrication projects4.
Efficient Automated Operation: The magnetic conveyor (with optional vacuum for non-ferrous metals) ensures secure and continuous material feeding4. Adjustable conveyor speed (0.5-6.0 m/min) allows precise control over the rounding process based on material type and desired finish.
Enhanced Safety & Quality: Automates the critical edge rounding process, protecting operators from sharp edges and repetitive strain injuries. Produces consistent, uniform rounded edges that improve paint adhesion and product aesthetics.
Robust Construction & Power: With a machine weight of 2800 kg and a powerful drive, it ensures stable operation even under heavy loads, reducing vibration and ensuring processing consistency4.
Effective Dust Extraction: Equipped with a connection for an external dust extraction system (min. 3500 m³/h), crucial for maintaining a clean workshop and protecting operator health4.
