H1000B
| Parameter | Specification |
|---|---|

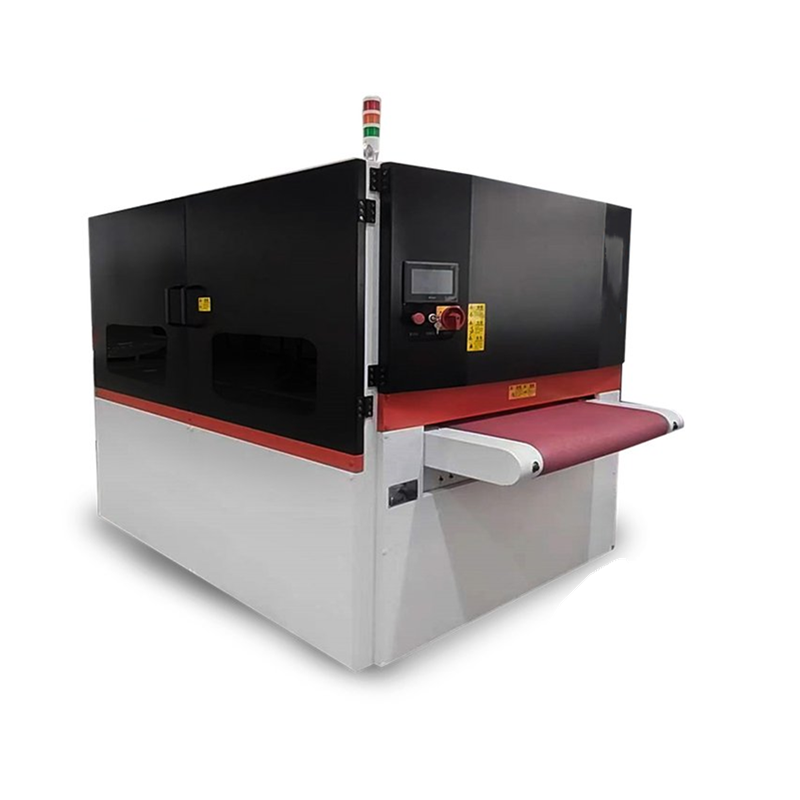

| Model | H1000B Automated Edge Rounding & Deburring Machine |
| Applications | - Laser-Cut Parts: Efficient deburring and edge rounding for laser-cut edges. - Small Parts (50x50mm): Can handle small parts down to 50x50mm with ease. - Punching & Shearing: Removes burrs and rounds edges from punched or sheared parts. - Aluminum, Steel, Stainless Steel: Suitable for a variety of materials including stainless steel, steel, and aluminum. - Automated Operations: Suitable for industries requiring high throughput and consistent quality. |
| Working Capacity (mm) | 1000 x 50 |
| Cross Belt Stations | 1 |
| Cross Belt Speed (m/s) | 2 – 8 |
| Feeding Speed (m/min) | 0.5 – 3 |
| Cross Belt Motor (kW) | 2 x 4 |
| Feeding Motor (kW) | 0.18 |
| Total Power (kW) | 8.7 |
| Power Consumption (A) | 19 |
| Dust Extraction Connection (Ø mm) | 200 |
| Dimensions (mm) | 2840 x 1710 x 2000 |
| Weight (kg) | 2075 |
| Minimum Part Size (mm) | 50 x 50 |
| Edge Rounding Capability | Strong edge rounding on all edges, including internal holes |
| Automated Adjustments | Yes (motorized adjustments for thickness & cross-belt pressure) |
| Abrasive Wear Compensation | Yes (automatic compensation based on abrasive wear) |

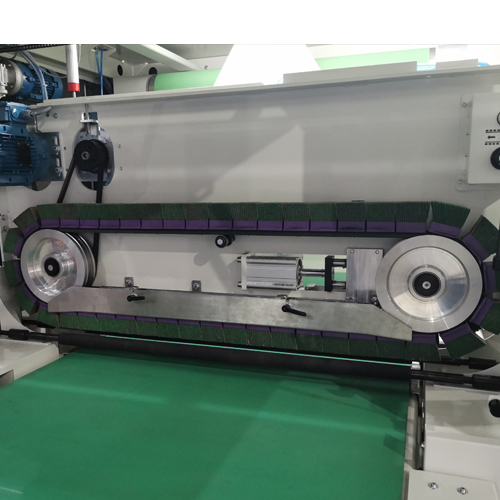

Cross Belt Technology: Two counter-rotating abrasive belts work in opposite directions, ensuring uniform edge rounding on the entire workpiece.
Efficient Small Part Processing: Handles small parts down to 50x50mm, ideal for high-precision industries.
Strong Edge Rounding: Achieves consistent rounding on both external and internal edges, including internal holes.
Automated Adjustments: The control panel allows for easy motorized adjustments of thickness and cross-belt pressure.
Abrasive Wear Compensation: Automatically compensates for abrasive wear, ensuring consistent edge rounding pressure.
STAY LINKED Monitoring: The optional system allows for remote monitoring, real-time troubleshooting, program management, and detailed consumables tracking via barcode scanning.
