| Quantity: | |
|---|---|
2000
Double sided deburring of small parts - Deburring and uniform edge rounding on all sides of parts, both on outer- and inner contours, in a single pass
Deburring machine for grinding, deburring and edge rounding of punched, laser and high definition plasma cut parts in one single pass
Deburring and edge rounding of laser, plasma and oxy fuel cut parts on both sides in one single pass
Equipment processing width : 800 mm、1000mm、1350mm、1600mm、2000mm、2200mm、2500mm
Equipment processing thickness: 1-100 mn
Feeding speed: 0.5-8 m/min(variable frequency adjustable)
Optional feeding mode:
1. Conveyor belt + rubber roller clip feeding (for ordinary workpieces.Workpiece length ≥ 150 mm）
2.Strong permanent magnet adsorption conveying material for carbon steel workpieces. Workpiece size ≥ 30 mmx30 mm)
3.Vacuum negative pressure adsorption conveying feeding (for stainless steel plate, copper platealuminum plate, etc.)is not magnetically
adsorbed.Workpiece size ≥ 50 mmx50 mm)
Rubber roller + rubber roller clip feeding

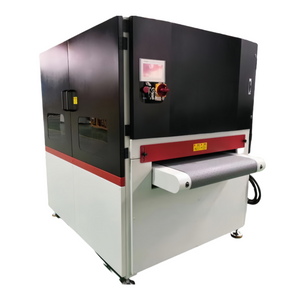

2000mm grinding and deburring machine with four units on both the top and bottom is an advanced system designed for large-scale, high-efficiency processing of steel and stainless steel parts. This machine is particularly effective for edge rounding on both sides and deburring, ensuring consistent and high-quality results across a wide range of applications.
Large Working Width:
2000mm Width: This extra-wide working area allows the machine to handle large and wide workpieces, making it suitable for heavy-duty industrial applications.
Four Units on Top and Bottom:
Enhanced Processing Power: With four processing units on both the top and bottom, the machine is designed to deliver superior deburring and edge rounding in a single pass, ensuring thorough and consistent treatment of both sides of the workpiece.
Comprehensive Edge Rounding:
Double-Sided Edge Rounding: The machine is equipped to round edges on both sides simultaneously, providing smooth and uniform edges, which are crucial for improving the safety and handling of steel and stainless steel parts.
Rotary Brush and Disc Technology: The use of rotary brushes and edge rounding discs ensures that all edges are treated evenly, even on complex geometries.
High-Efficiency Deburring:
Top and Bottom Deburring: The machine's design allows for simultaneous deburring of both the upper and lower surfaces of the workpiece, removing burrs quickly and effectively.
Adaptable to Material Thickness: Capable of processing varying thicknesses, the machine can handle anything from thin sheets to thicker plates, making it versatile for different types of steel and stainless steel parts.
Material Versatility:
Steel and Stainless Steel: While optimized for steel and stainless steel, the machine can also be adapted to process other metals like aluminum and non-ferrous materials if required.
Selective Processing Options: The machine can operate on either the top side, the bottom side, or both sides depending on the specific needs of the job.
Unit Configuration:
Provides the final surface treatment, enhancing the appearance and texture of the material.
Focuses on creating a smooth and uniform edge around the workpiece.
Equipped with brushes or abrasive discs for removing burrs from edges and holes.
Removes larger burrs and prepares the surface for finer processing.
Unit 1: Pre-Grinding:
Unit 2: Deburring:
Unit 3: Edge Rounding:
Unit 4: Finishing:
Automation and Control:
HMI Control Panel: The machine is equipped with an intuitive HMI interface, allowing operators to control and adjust various parameters such as brush speed, pressure, and material feed rate.
Servo Motor Adjustments: Offers precise control over the processing units, ensuring repeatable and high-quality results for each batch.
Dust and Debris Management:
Integrated Dust Extraction: A powerful dust collection system is integrated to manage debris, maintaining a clean working environment and ensuring that the machine operates efficiently without clogging or downtime.
Applications:
Large Steel and Stainless Steel Parts: Ideal for industries that require precise deburring and edge rounding of large, heavy-duty metal parts.
Automotive, Aerospace, and Heavy Manufacturing: Suitable for sectors where high-quality edge treatment and surface finishing are critical for safety and functionality.
Efficiency and Throughput:
Single-Pass Processing: The ability to deburr and round edges on both sides of large workpieces in a single pass significantly reduces processing time.
High Throughput: The machine’s large working width and powerful processing units enable high-volume production, making it ideal for large-scale operations.
Comprehensive Treatment: Handles both deburring and edge rounding on large metal parts, ensuring all surfaces are treated uniformly.
High Productivity: The four-unit configuration on both sides maximizes processing efficiency, allowing for continuous operation with minimal downtime.
Versatility: Can be tailored to different material types and processing needs, offering flexibility across various industrial applications.
2000mm Model: This specific model is equipped with four units on both the top and bottom, designed for large-scale deburring and edge rounding of steel and stainless steel parts.
Material Compatibility: Primarily optimized for steel and stainless steel, but adaptable for other metals with appropriate settings and tooling.
Processing Flexibility: Capable of adjusting to different material thicknesses and processing requirements, ensuring consistent quality across a wide range of parts.
Deburring Sheet Metal: Efficiently removes burrs from sheet metal parts.
Processing Laser Parts: Suitable for handling laser-cut parts with precision.
Stamping Parts: Effective in processing stamped parts, ensuring smooth edges and surfaces.
Versatile Material Processing: Capable of handling various materials, including stainless steel, steel, aluminum, and non-ferrous metals.
Time Savings: Two-sided processing cuts down operation time significantly.
Automation Ready: Designed for easy integration with automation solutions, improving production efficiency.
Ergonomic and Clean Operation: User-friendly design with minimal dust and noise pollution.
High-Quality Finish: Ensures consistent and high-quality deburring and edge rounding results.
Processing Units: Three units each on the top and bottom.
Material Compatibility: Stainless steel, steel, aluminum, non-ferrous metals.
Processing Options: Upper side, lower side, or both sides simultaneously.
Automation Solutions: Integration with automated production lines.
Dust Extraction Units: Ensures a clean working environment by removing harmful abrasive dust.
Rotating Cleaning Brushes: For cleaning conveyor belts, ensuring consistent performance.
DPG's L Series machines offer a versatile, efficient solution for deburring and processing sheet metal parts, making them ideal for industries requiring high-quality finishes and operational efficiency. With dual-sided processing and easy integration into automated workflows, these machines provide substantial time savings and ergonomic benefits, contributing to a cleaner, safer, and more productive working environment.
