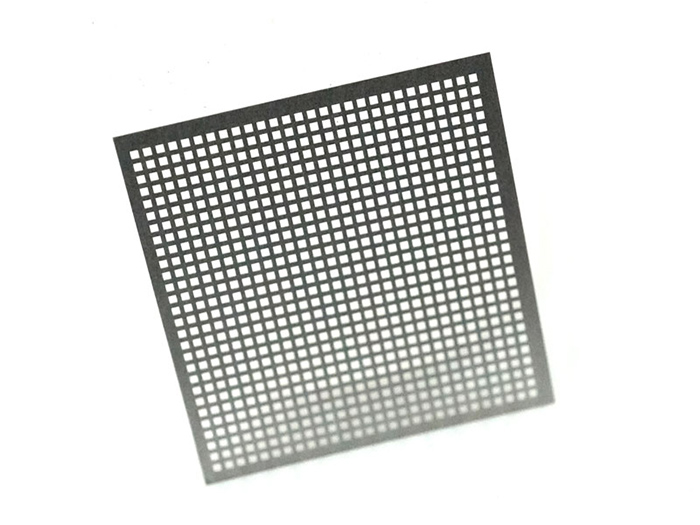

Shadow Masks
In the electronics and semiconductor industries, thin film deposition is a critical process used to build layers of materials onto substrates to form integrated circuits, displays, sensors, and other microelectronic devices. Shadow masks and deposition masks serve as essential tools in these processes, precisely defining the areas where material deposition occurs. The quality and precision of these masks directly impact device performance, yield, and reliability.
To meet the stringent requirements for mask fabrication, precision laser cutting machines have become the industry standard. These machines utilize advanced laser technology to cut ultra-fine holes and intricate patterns on thin metal sheets with exceptional accuracy and repeatability.
Semiconductor Device Fabrication
Shadow and deposition masks are used to pattern thin films in semiconductor wafer processing, enabling the precise placement of conductive, insulating, or active layers required for integrated circuits and microelectromechanical systems (MEMS).
OLED and Flat Panel Display Manufacturing
Masks produced by precision laser cutting control the deposition of organic materials in OLED displays, ensuring uniform pixel formation and high-resolution images.
Optoelectronic Components
Fabrication of masks for thin film coatings in photonic devices, optical sensors, and lasers requires micrometer-level precision to ensure optical performance.
MEMS and Sensor Production
Thin film masks enable selective deposition or etching in the production of microsensors and micro-actuators.
Micron-Scale Precision
Precision laser cutting machines achieve hole sizes and pattern resolutions down to just a few microns, enabling extremely fine mask features essential for high-density electronic components.
Complex Pattern Capability
The machines support highly complex and dense aperture patterns, including varied hole sizes, shapes, and spacing customized for specific device designs.
Superior Edge Quality
Laser cutting produces clean, burr-free edges with minimal heat-affected zones, maintaining mask integrity and enabling uniform thin film deposition.
Material Flexibility
Compatible with various mask materials such as stainless steel, nickel alloys, copper alloys, and specialized thin metals, providing options for durability, thermal resistance, and conductivity.
Automated Production
Integrated CNC control and automation features enable high-volume manufacturing with consistent quality, reducing manual labor and human error.
Software Integration
Advanced CAD/CAM systems allow precise control over cutting paths, optimize material usage, and facilitate rapid prototyping or production changes.
Non-Contact Process
The laser cutting method prevents mechanical stresses, warping, or deformation of delicate mask materials, essential for thin, fragile sheets.
Repeatability & Reliability: Consistent production of identical masks ensures device uniformity and process stability.
Reduced Lead Times: Rapid programming and cutting cycles accelerate mask production and reduce time-to-market.
Minimal Waste: Optimized nesting and cutting strategies minimize material scrap and lower costs.
Real-Time Monitoring: Integrated vision and feedback systems enable immediate quality checks and adjustments.
High Throughput: Suitable for both prototype and mass production runs, balancing flexibility and efficiency.
Precision laser cutting machines are indispensable in the fabrication of shadow masks and deposition masks for thin film deposition in electronics and semiconductor manufacturing. Their ability to deliver ultra-high precision, complex patterning, and consistent quality makes them vital enablers of advanced microfabrication technologies.
By utilizing these machines, manufacturers can improve device performance, increase yield, and maintain competitive advantages in fast-evolving high-tech industries.
