RP630

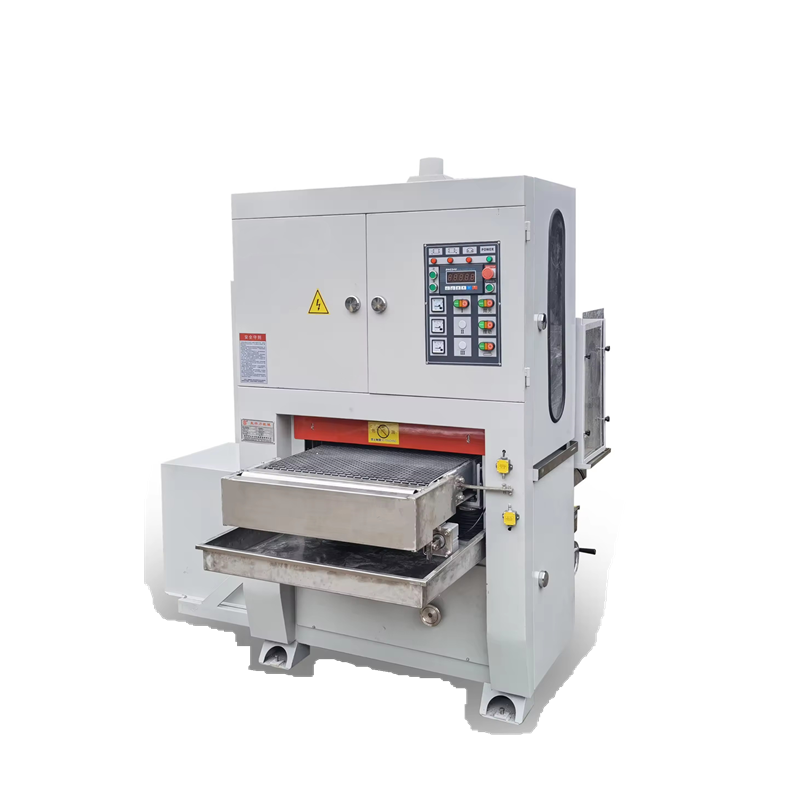

The RP630 Wide Belt Sander is a professional-grade machine designed for deburring, deslagging, edge rounding, and surface finishing of metal components. It features a 2-station system, including 1 sanding head and 1 brush head, ideal for achieving both flat surface grinding and light edge rounding in a single pass. Equipped with a PLC touchscreen control system, the RP630 ensures high precision, user-friendly operation, and consistent processing quality across various metal materials.
| Specification | Unit | RP630 |
|---|---|---|
| Max Working Width | mm | 630 |
| Max Working Height | mm | 60 |
| Min Working Length | mm | 220 |
| First Sanding Belt Power | kW | 15 |
| Brush/Polishing Wheel Power | kW | 11 |
| Feeding Motor Power | kW | 1.5 |
| Lifting Motor Power | kW | 0.37 |
| Oscillating Motor Power | kW | 1.5 |
| Machine Dimensions (L×W×H) | m | 2.1 × 1.9 × 2 |
| Machine Weight | kg | 1600 |
| Abrasive Belt Size | mm | 1900 × 630 |
✅ Dual-Station Design (Sanding + Brush Head):
The RP630 integrates a powerful abrasive belt station for initial grinding and deburring, combined with a brush unit for edge rounding, light polishing, and surface refinement.
✅ Precision PLC Touchscreen Control:
Simple operation with intelligent PLC interface, enabling accurate control of feed speed, sanding pressure, and working height for various metal processing tasks.
✅ Robust Motor Power:
A 15kW sanding head ensures aggressive material removal for burrs and imperfections, while an 11kW brush unit guarantees smooth finishing and uniform edge rounding.
✅ Compact Footprint, Heavy-Duty Frame:
Despite its compact size, the RP630 is built with a rigid industrial frame, delivering stable operation with low vibration during heavy-duty sanding tasks.
✅ Adjustable Feed Speed and Height:
Smooth, controlled feeding system with easy thickness adjustment to accommodate various part sizes.

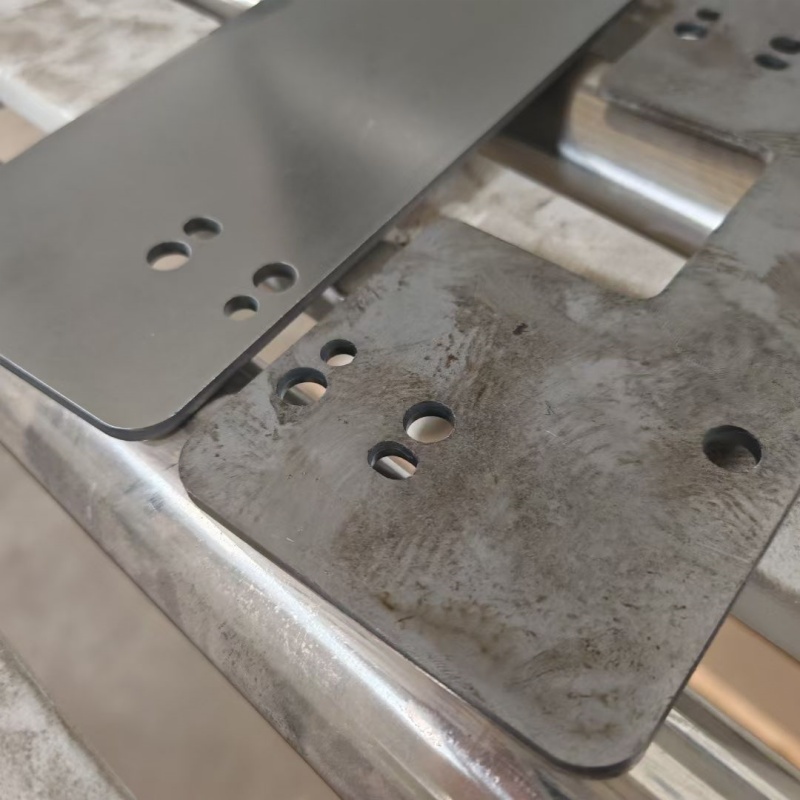

Deburring after laser cutting, plasma cutting, and shearing
Edge rounding of sharp metal edges and punched parts
Oxide layer removal for improved paint adhesion
Surface finishing of stainless steel, mild steel, aluminum, and other non-ferrous metals
Preparation of metal parts for further surface coating (powder coating, painting)
Light polishing to achieve a consistent brushed finish on flat metal surfaces
Sheet metal fabrication workshops
Laser cutting service providers
Metal part manufacturers (3C, appliances, automotive)
Architectural and decorative metalwork companies
Steel service centers
General fabrication and metal processing facilities
✔️ Combines deburring and finishing in one machine
✔️ Efficient two-step processing reduces handling time
✔️ Consistent surface quality on every piece
✔️ Ideal for small workshops and industrial production lines
✔️ Low maintenance, long-term durability
The RP630 Wide Belt Sander with Brush is the optimal choice for manufacturers seeking high-efficiency, precision metal finishing equipment. It is capable of producing high-quality surfaces with minimal manual labor, helping you increase production throughput while improving workpiece quality.
