Raycus

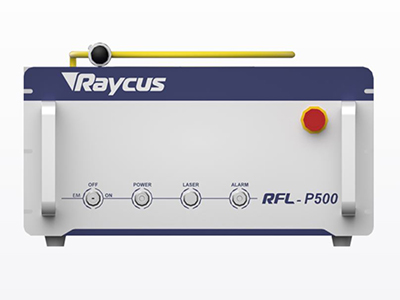

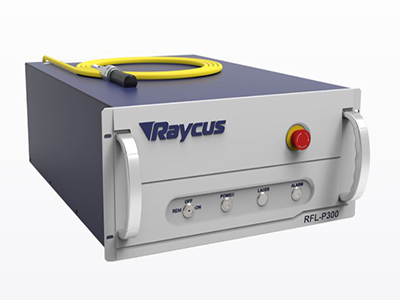

Raycus High power pulsed laser source RFL-P200 RFL-P500 for Laser cleaning Machine
Product Description：
Product Paramenters：
| Model | RFL-P200 | RFL-P300 | RFL-P500 | RFL-P1000 | RFL-P2000 |
| Rated output power: (W) | 100@10kHz，200@20-50kHz | 250@20kHz，300@30-50kHz | 200@10kHz，500@20-50kHz | 400@10kHz，1000@20-50kHz | 2000@20-50kHz |
| Center wavelength: (nm) | 1064±5 | 1064±5 | 1064±5 | 1064±5 | 1064±5 |
| Repetition frequency range (kHz) | 10-50 | 20-50 | 10-50 | 10-50 | 20-50 |
| Output power stability | ＜5% | ＜5% | ＜5% | ＜5% | ＜5% |
| Pulse width range (ns) | 90-130 | 120-160 | 90-160 | 90-160 | 120-160 |
| Maximum single pulse energy (mJ) | 10@20kHz | 12.5@20kHz | 25@20kHz | 50@20kHz | 100@20kHz |
| Output fiber length (m) | 5 (can be customized) | 5 (can be customized) | 10 | 15 | 20 |
| Output core diameter (μm) | 100 | 100 | 200 | 400 | 400/600 |
| Input power (VAC) | 220V,50/60Hz | 220V,50/60Hz | 220V,50/60Hz | 220V,50/60Hz | 380V,50/60Hz |
| Power adjustment range (%) | 10-100 | 10-100 | 10-100 | 10-100 | 10-100 |
| Power consumption (W) | 1000 | 1800 | 2500 | 5000 | 10000 |
| Dimensions (mm) | 485*237*765 (including handle) | 485*237*765 (including handle) | 502*254*755 (including handle) | 698×898×865 (including handle) | 1018×836×850 (including handle) |
| cooling method | Water cooling | Water cooling | Water cooling | Water cooling | Water cooling |
Features：

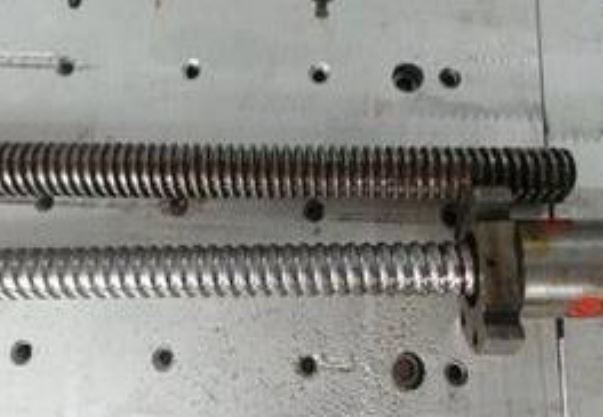

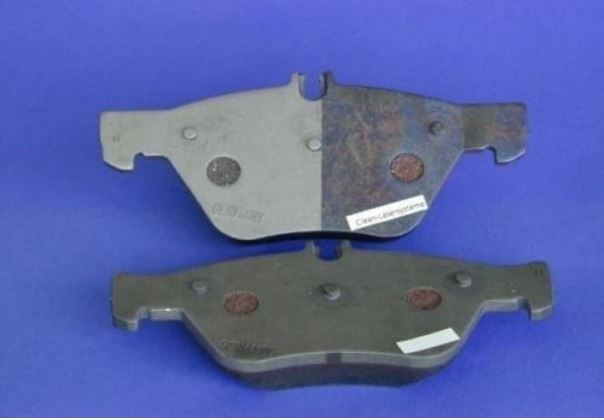

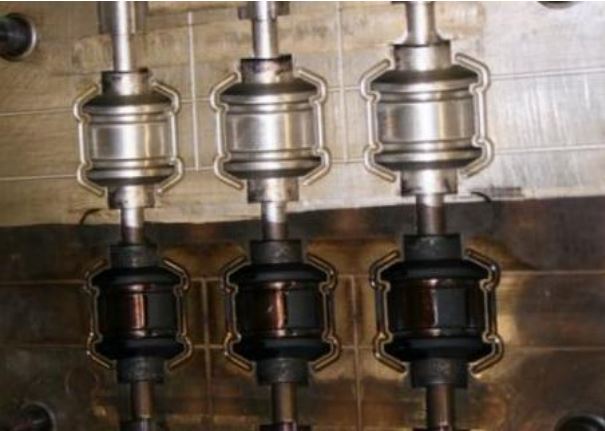

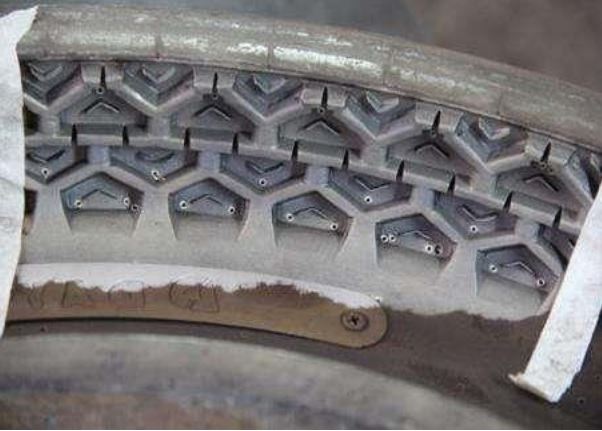

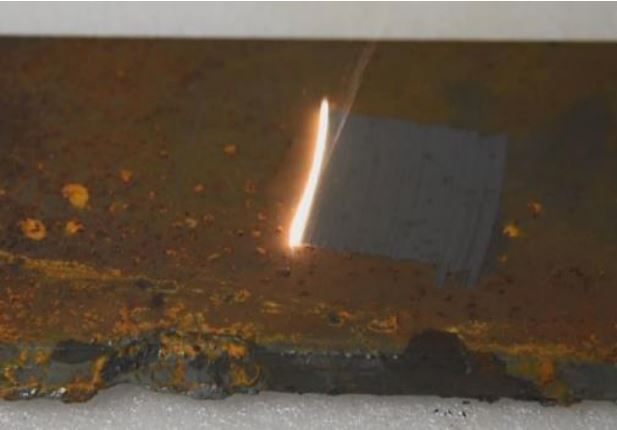

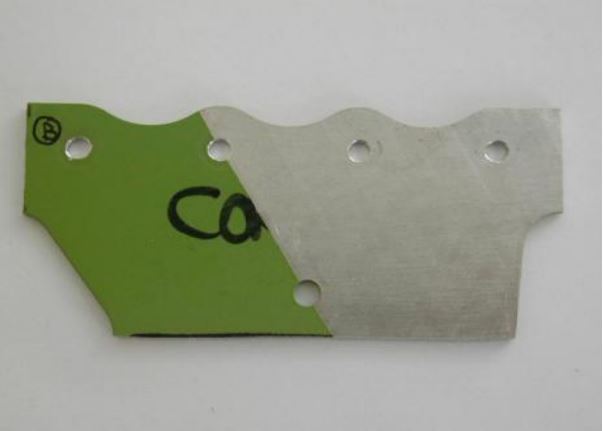

Application：
