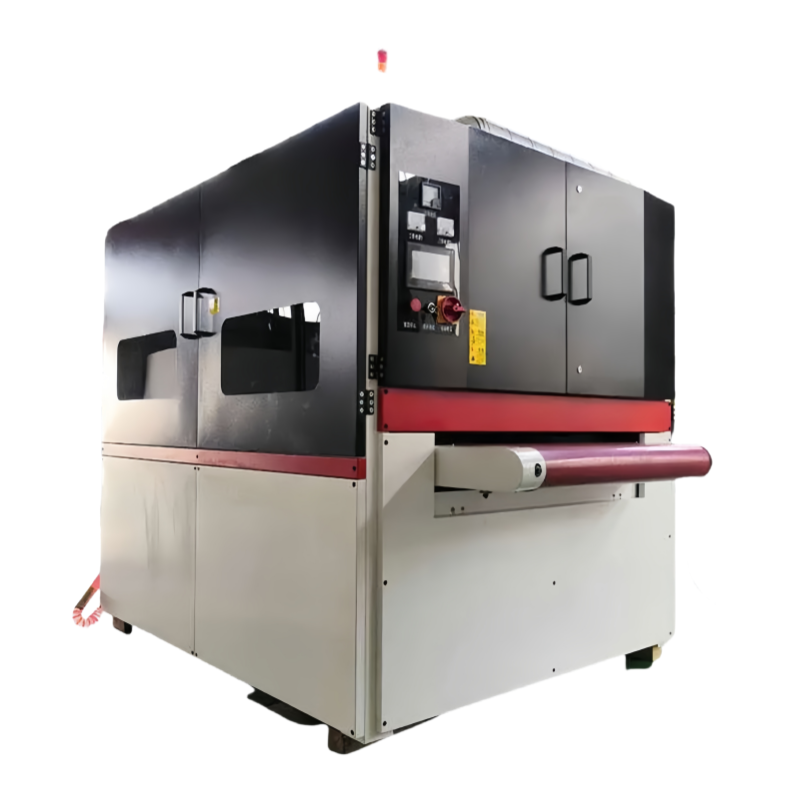

1350mm Deburring And Edge Rounding Machine for Aluminum, Steel, And Stainless Steel

Main Processing Scope of the Equipment

1. Processing Materials:

• Carbon Steel

• Stainless Steel

• Aluminum Plate

• Copper Plate

• Various Non-ferrous Metals

2. Equipment Function: This equipment is a dry sand belt and eight groups of universal sand tablet roller brushes combination model. It is mainly used to handle:

   The equipment efficiently removes burrs produced by stamping, shearing, laser cutting, plasma cutting, flame cutting, and other processes. It ensures that all edges and holes are processed to achieve a smooth R-arc effect. The processing is safe and reliable, ensuring perfect quality for the workpieces.

• Edge deburring

• Hole deburring

• Metal plate hairline treatment

• Deoxidation skin removal

• Polishing and other surface processing treatments

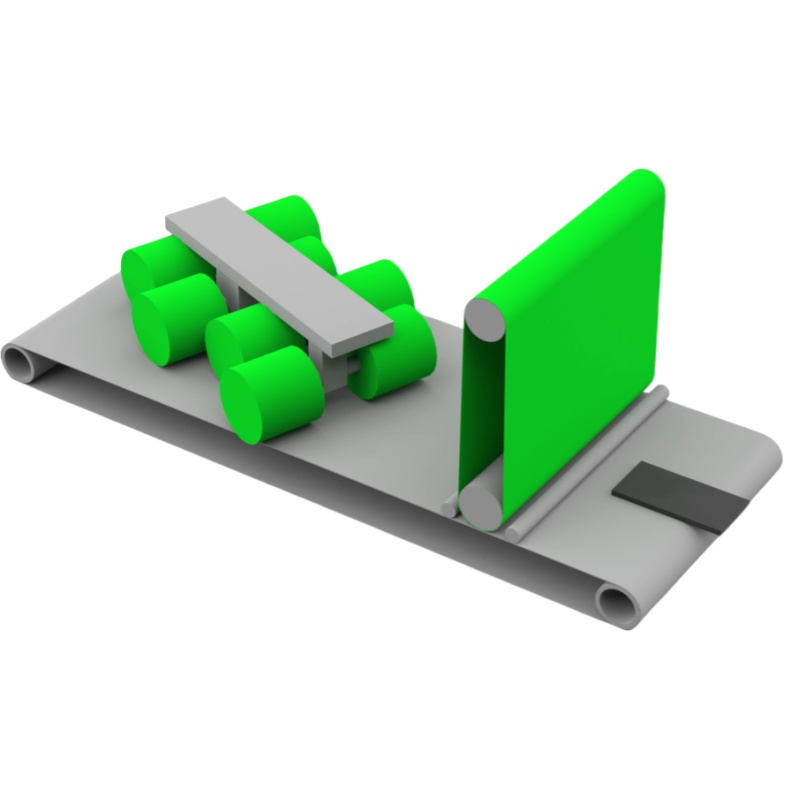

Working Principle of the Equipment

• The equipment operates in two main stages:

• Sand Belt Station: Used for metal hairline treatment, polishing, peeling, slag removal, etc.

• Sand Rolling Brush Station: Used for 360-degree burr treatment, especially for laser-cut or CNC-punched coated sheet metal parts. It ensures burr removal without damaging the coating or scratching the sheet metal surface.

• The sand belt station and sand roller brush station can also work independently:

• The equipment uses special soft abrasive wires, designed specifically for burr removal, ensuring no damage (even with coated sheet metal). It provides superior processing efficiency for irregular or special workpieces.

• Vacuum System: The strong vacuum negative pressure adsorption system fixes workpieces securely for efficient processing. Workpieces greater than 50mm x 50mm can be processed without tooling, while special workpieces can be fixed with supporting tooling.

• Dust Management: The system includes a wet vacuum cleaner, reducing safety risks and efficiently handling grinding dust. A high-pressure fan draws the dust into the dust chamber, and water deposition helps filter and absorb dust, improving air quality for a safer working environment.

1. First Stage: A sand belt station removes larger slag particles and burrs from the surface of the workpiece.

2. Second Stage: Through eight groups of universal sand tablet roller brushes, the workpiece edges and inner holes undergo high-speed centrifugal grinding, scraping, cutting, filing, and burr removal, achieving uniform R-angles (size can be adjusted by changing the abrasive belt and process).

Advantages of Using the Equipment

1. Improved Production Efficiency: Continuous feeding allows high-volume processing, meeting the demand for large orders.

2. Enhanced Product Quality: The consistency of workpiece processing is excellent, with surface treatment far exceeding manual processing.

3. Cost Savings: The processing cost per unit area is significantly lower than manual methods.

4. Safety and Environmental Protection: The dust absorption system ensures a safer operation and better working environment, while reducing pollution and recycling metal powder for environmental protection.
