MSP-M1350
| Feature | Specification |
|---|---|
| Working Width | ≤ 1350mm |
| Processing Thickness (mm) | 0.5 - 80 |
| Minimum Processing Size (mm) | 50 x 50 |
| Power Consumption (kW) | 45.75 |
| Sand Rolling Brush Size | Φ 300mm × 400mm |
| Delivery Speed (m/min) | 0.5 - 6.0 |
| Sand Belt Line Speed (m/s) | 12m/s |
| Rolling Brush Rotation Speed (r/min) | Adjustable frequency conversion of 500-1400r/min |
| Rolling Brush Public Speed (r/min) | 1 - 15 |

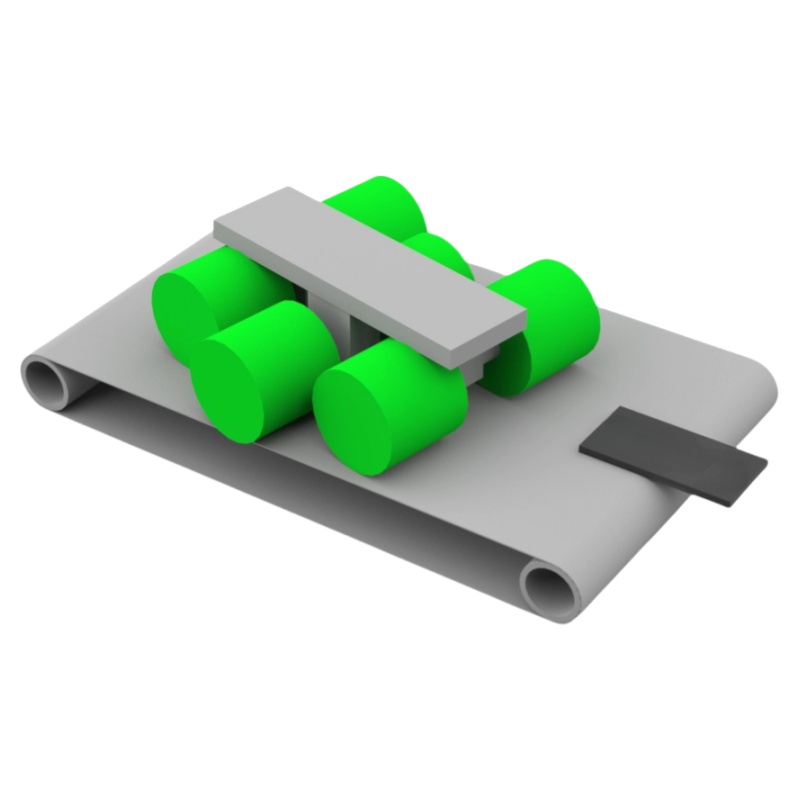

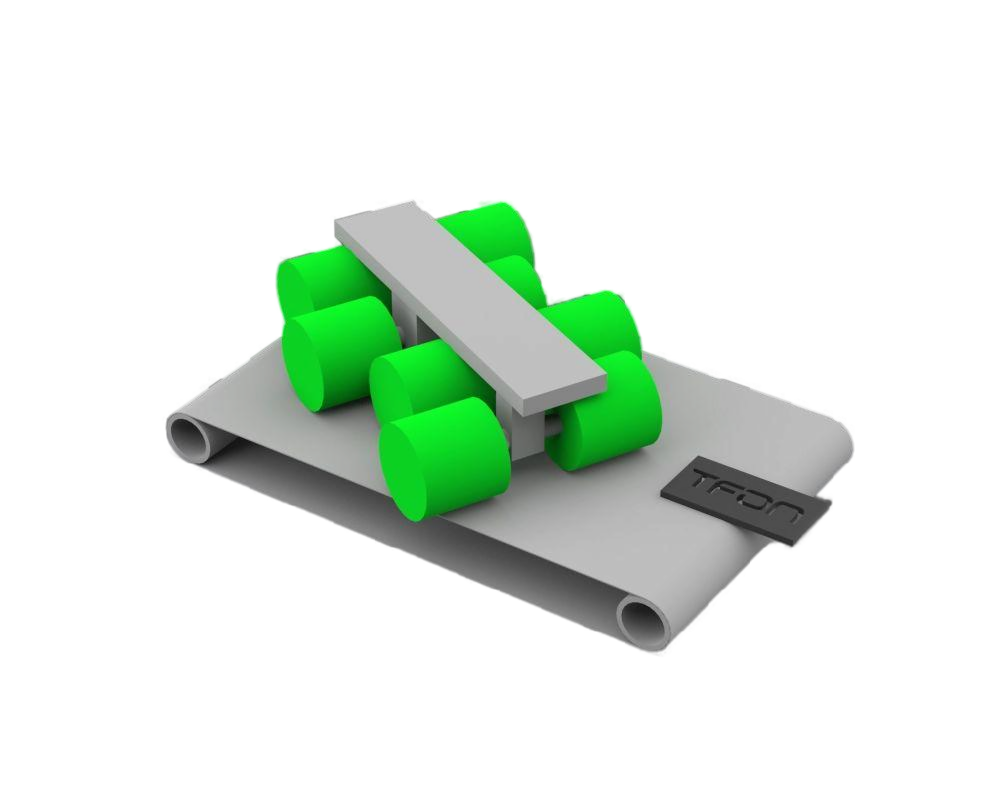

| Number of Roller-Brush Planetary Revolution Shaft Heads | 8 |
| Machined Thickness Servo Adjustment Precision (mm) | 0.01mm |
| Rolling Brush Compensation Servo Adjustment Precision (mm) | 0.01mm |
| Grinding Consumables | Flap Wheels, Rolling Brush |
| Dust Air Volume (m³/h) | 4000 |
| Contour Size (L x W x H) | 3250mm x 2300mm x 2150mm |
| Machine Weight (kg) | ~ 3500 kg |

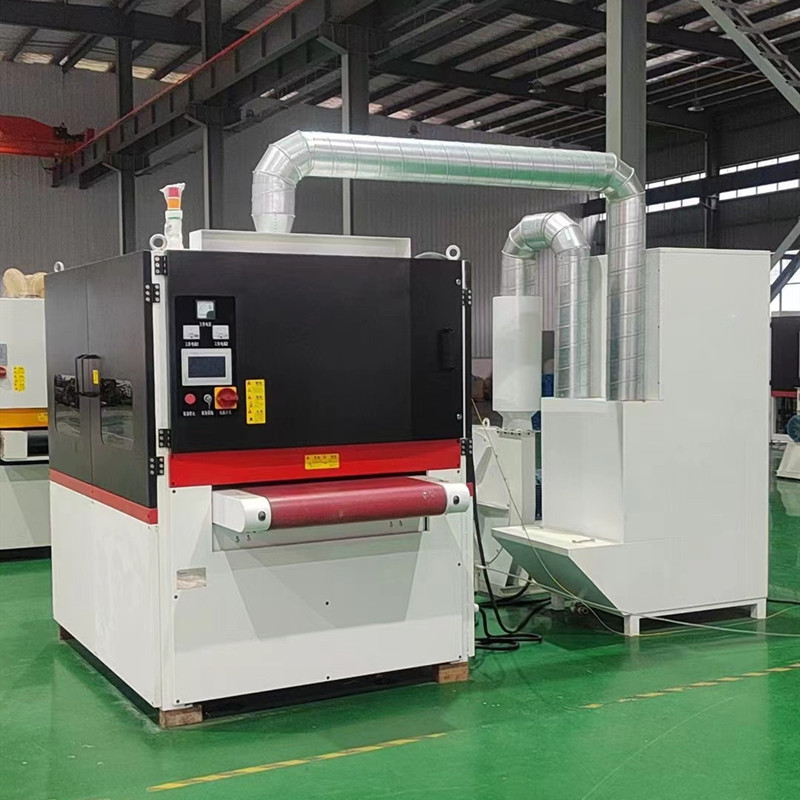

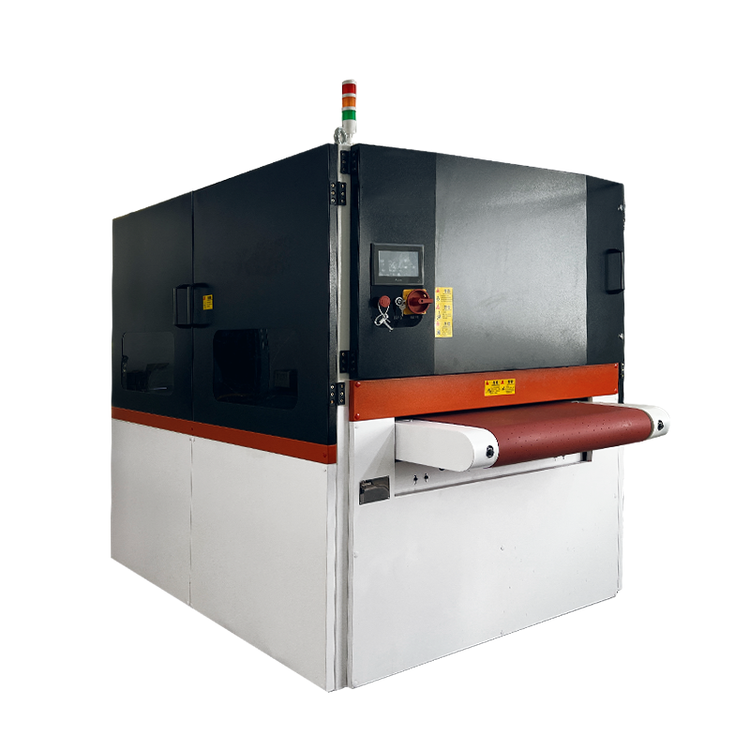

The Edge Rounding Machine is designed to round the sharp edges of metal parts, improving safety and surface preparation. The rounded edges reduce the risk of injury, which is essential for occupational safety. Additionally, it enhances paint adhesion by providing a smoother surface, which is crucial for post-processing and coating applications.
Key Features:
Edge Rounding: The machine rounds sharp edges on metal sheets, making them safer to handle and improving their appearance.
Flap Wheel Station: This machine uses a Flap Wheel as the main tool for the rounding process. The flap wheel ensures a smooth, controlled edge rounding and removes any burrs left after cutting or other manufacturing processes.
Wide Processing Range: It handles materials with a thickness range of 0.5 to 80mm and can process parts as wide as 1350mm, making it suitable for a variety of sheet metal sizes and thicknesses.
Precise Servo Adjustments: The machine features servo adjustments with high precision (0.01mm) for both machined thickness and rolling brush compensation, ensuring consistent quality across different parts and material types.
Efficient Dust Management: With a dust extraction system that manages 4000m³/h, the machine ensures a clean work environment and helps maintain production efficiency by minimizing dust buildup.
High Throughput: The adjustable conveyor speed (0.5 to 6.0 m/min) and sand belt line speed (12m/s) allow for efficient processing of high volumes of metal parts.
Rolling Brush Flexibility: The rolling brush operates at adjustable speeds, allowing for precise control over the edge rounding process, with rotation speeds ranging from 500 to 1400r/min and a public speed of 1-15r/min.
Applications:
Edge Rounding: The machine is primarily used for rounding sharp edges on metal parts, making them safer to handle and improving their overall quality.
Deburring: It also removes burrs formed during the cutting or machining process, contributing to the overall quality and finish of the part.
Surface Preparation: By rounding edges and smoothing surfaces, the machine prepares the metal parts for further treatments like coating or painting, ensuring better adhesion of finishes.
