MSP-M1000
| Feature | Specification |
|---|---|
| Material | Steel, Aluminum, Stainless Steel |
| Process | Edge Rounding |
| Material Thickness (mm) | 0.5 - 80 |
| Max. Material Width (mm) | 1000 |
| Min. Part Dimensions (mm) | 50 x 50 |
| Max. Material Weight (kg) | 500 |
| Conveyor Speed (m/min) | 0.5 - 6.0 |
| Min. Deduster Need (m³/h) | 4000 |
| Machine Power Consumption (kW) | 28.7 / 30.2 |
| Machine Weight (kg) | 2800 |
| Holder System | Magnetic (Vacuum Optional) |
| Model | MSP-M1000 |
| Conveyor Width | 1000mm |
| Working Height | 80mm |
| Flap Wheels Quantity | 6 |
| Flap Wheel Dimensions | Ø300 x 300mm |
| Conveyor Speed | 0.5 - 6.0 m/min |
| Processes | Edge Rounding |
| Power Consumption | 28.7 kW |
| Flap Wheel Dimension (Diameter) | Flap Wheel Dimension (Length) |
|---|---|
| Ø300mm | 300mm |

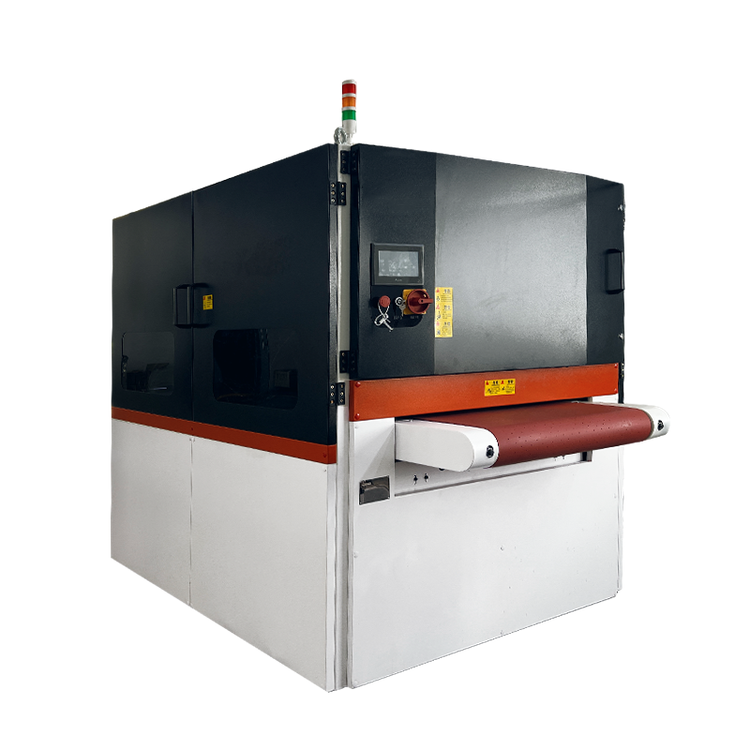

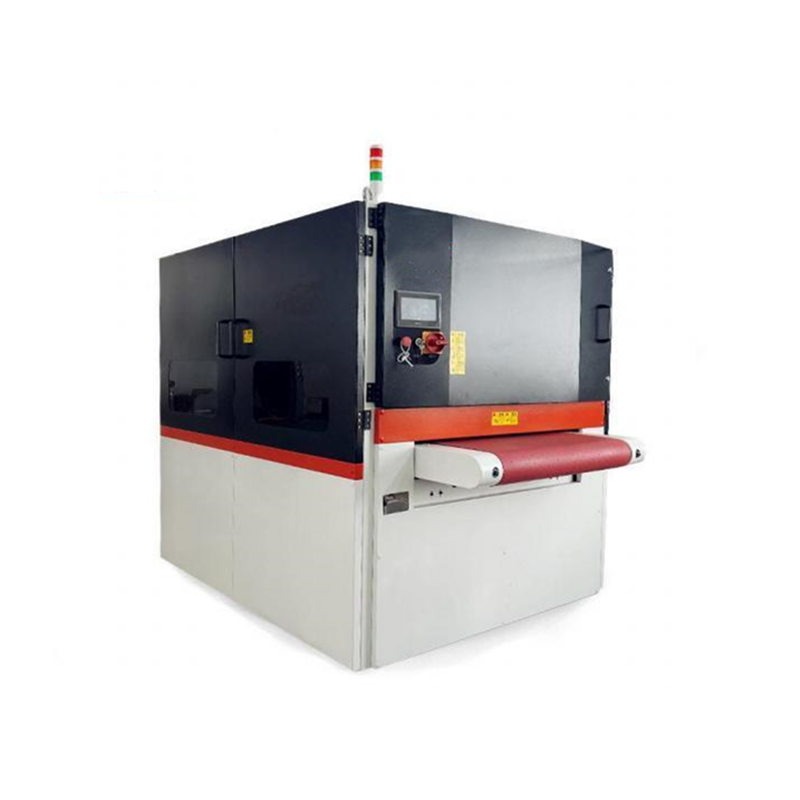

The Edge Rounding Machine is designed specifically to round the sharp edges of metal plates, making them safer and more suitable for handling in post-processing applications. This machine is particularly important for improving occupational safety, as sharp edges on metal parts can be hazardous during further handling, packaging, or installation.
Key Features:
Edge Rounding: The Flap Wheel (Ø300mm) efficiently rounds the sharp edges of metal plates, making the parts safer to handle, reducing the risk of injury, and improving the overall appearance of the part.
Versatile for Various Materials: It is capable of processing different materials such as steel, aluminum, and stainless steel, offering flexibility for manufacturers working with various types of metals.
Wide Material Handling Range: Capable of processing parts with thicknesses ranging from 0.5mm to 80mm, making it suitable for a variety of sheet metal applications.
Efficient Operation: The machine operates with a conveyor speed of 0.5 to 6.0 m/min, allowing for high throughput and precise edge rounding, depending on the size and complexity of the parts.
Magnetic Holding System: The machine uses a magnetic holder system to securely hold parts in place during the process, with the option for a vacuum system for specialized part handling.
Powerful and Durable: With 28.7 kW of power consumption, the machine delivers consistent and high-quality results, ensuring reliable performance over extended periods of operation.
Safety Improvement: By rounding the edges of metal parts, the machine significantly improves workplace safety by eliminating sharp, hazardous edges that could lead to accidents.
Applications:
Edge Rounding: The primary function of the machine is to round the edges of metal parts, making them safer for handling, assembly, and use.
Deburring: It can also remove burrs that form during the cutting or stamping process, improving both the functional and aesthetic quality of the parts.
Surface Finishing: The machine contributes to the smoothening of metal surfaces, providing a clean and polished finish that is crucial for certain manufacturing applications.
