MSP-C1350
High-Efficiency Deburring | Precision Edge Rounding | Heavy-Duty Build

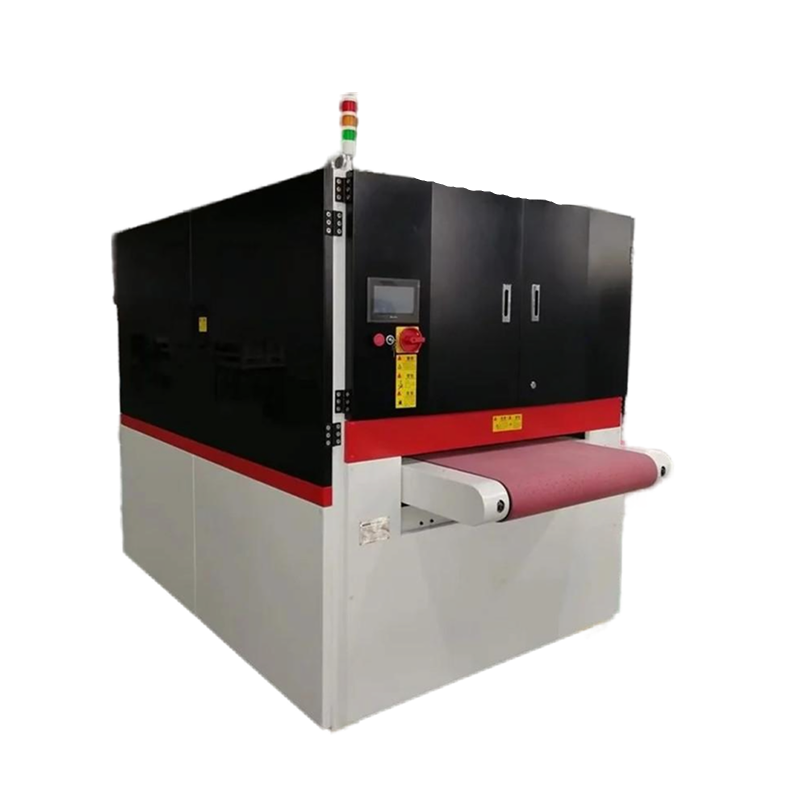

The 1350mm Metal Edge Deburring Machine is designed for processing large metal parts, offering an extra-wide 1350mm working width. It is perfect for deburring, edge rounding, and surface finishing of metal sheets that have undergone laser cutting, plasma cutting, punching, or shearing. This machine is widely used in industries such as metal fabrication, automotive manufacturing, HVAC, and appliance production.
It features advanced abrasive and brush technology to deliver high precision with each pass, ensuring a consistent finish for large and medium-sized metal parts.
Working Width: 1350mm, suitable for large or multiple sheet metal parts

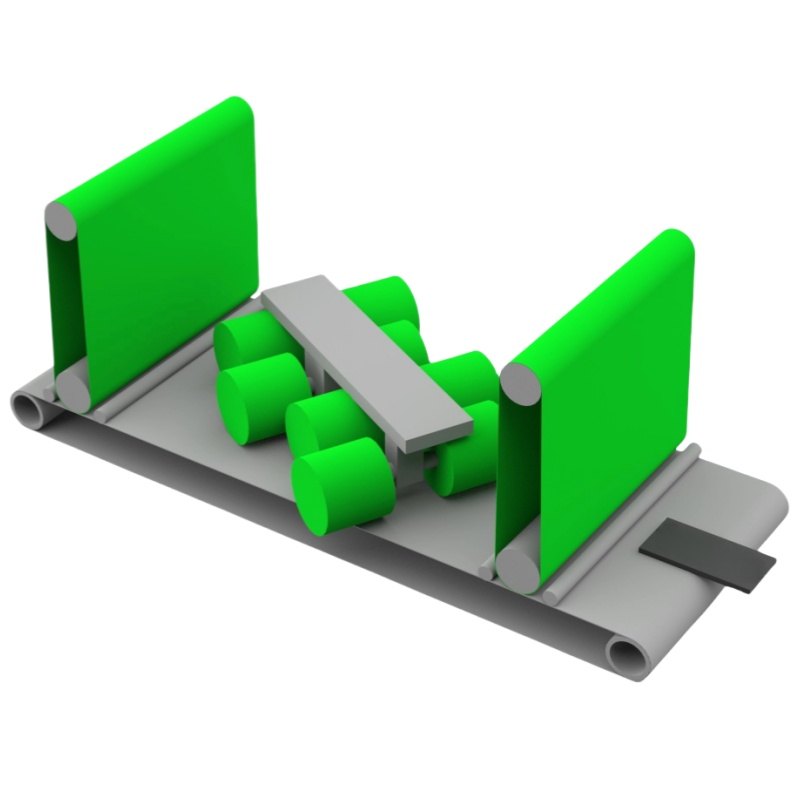

Multi-Stage Processing System:
Abrasive Belt Station: Effective for heavy burr and slag removal
Flap Wheel / Brush Station: Provides precise edge rounding and surface smoothing
Final Polishing / Finishing Station: For smooth, polished finishes without damaging the part
⚙️ Adjustable Speed:
Feed Speed: 0.5 – 6 m/min (adjustable)
Brush Speed: 500 – 1400 rpm (adjustable via frequency control)
Efficient Dust Extraction:
Designed with dust collection ports for easy connection to an external dust extraction system, ensuring a clean workspace
Intuitive Control Panel:
HMI touchscreen for user-friendly interface and easy operation
Pre-programmed settings for different materials and processes
Heavy-Duty Industrial Design:
Robust construction for high-throughput operation and continuous performance
Includes emergency stop button and safety interlocks for enhanced safety during operation
| Specification | Value |
|---|---|
| Max Working Width | 1350mm |
| Min Part Size | 50mm × 50mm |
| Processing Thickness | 0.5 – 80mm |
| Abrasive Belt Size | Ø1910mm × 1050mm |
| Flap Wheel Size | Ø300mm × 300mm |
| Feed Speed | 0.5 – 6 m/min (adjustable) |
| Brush Speed | 500 – 1400 rpm (adjustable) |
| Power Supply | ~45kW (depending on configuration) |
| Machine Dimensions | ~ 3600mm × 2200mm × 2200mm |
| Weight | ~ 4.0 – 4.5 tons |
| Dust Extraction Volume | ≥ 5000 m³/h |
Laser-Cut, Plasma-Cut, and Punch-Cut Deburring
Edge Rounding and Finishing for smooth and uniform edges
Oxide and Slag Removal after cutting, leaving clean edges for further processing
Final Surface Finish before coating or painting (e.g., powder coating, liquid coating)
Deburring of Thin or Thick Metal Sheets
Removal of Oxidation Layers from stainless steel, aluminum, and other metals
Versatile Multi-Stage Processing – Deburrs, rounds edges, and finishes surfaces in a single pass
⚙️ Fully Adjustable Settings – Feed speed and brush speed can be customized for different materials
High Production Capacity – Designed for continuous, high-volume operations
Easy to Maintain – Easy to replace abrasive belts and adjust brushes as required
Environmentally Friendly – No water or chemicals are used in the process, and the dust extraction minimizes secondary pollution
