JG-2616D/2616DC

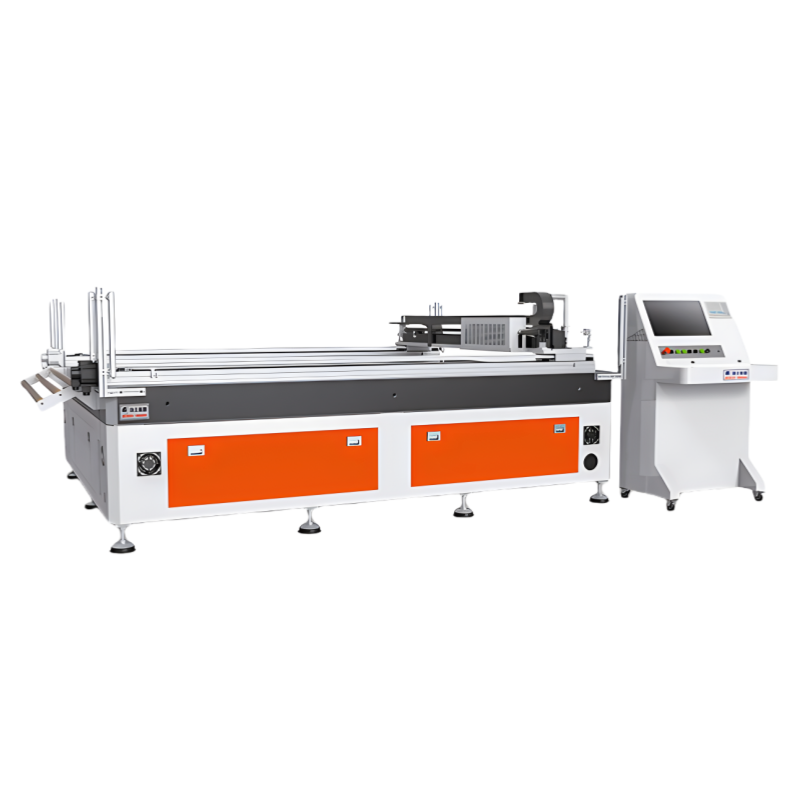

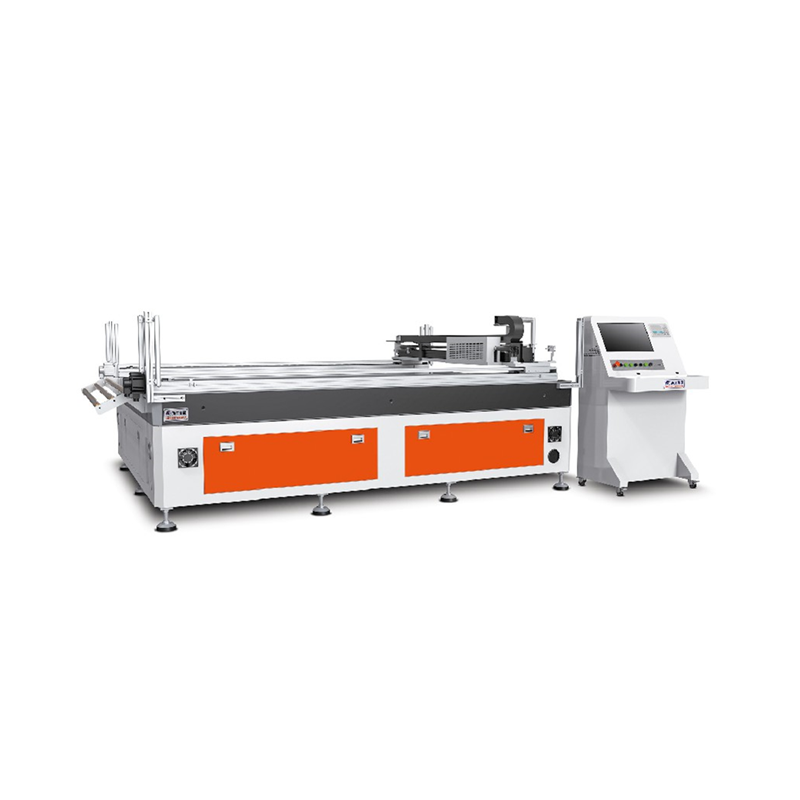

The JG-2616D/2616DC CO₂ Laser Cutting Machine is a high-precision laser cutter designed for non-metallic materials such as EVA foam, PE foam, optical films, and adhesives. With a large processing area of 1600×2600mm, this machine is ideal for industrial-scale cutting of flexible and delicate materials, ensuring smooth edges, high accuracy, and efficient operation.
High Precision Cutting: Cutting accuracy of 0.03mm ensures clean, detailed cuts for even the most intricate designs.
Large Working Area: The 1600×2600mm processing range allows for cutting large sheets in a single pass, improving productivity.
CO₂ Laser Technology: Uses a 55W CO₂ metal laser with a 9.3μm wavelength, optimized for soft and flexible materials.
Advanced Positioning System: Positioning accuracy of 0.01mm for consistent results.
Software Control: Cutting energy adjustable from 0-99%, controlled through software for optimized power usage.
Stratified Cutting: Multi-layer cutting settings enable efficient processing of composite materials.
Versatile Graphic Format Support: Compatible with DXF, AI, and PLT file formats for seamless integration into existing workflows.
Energy Efficient: Operates on AC220V 6.0KW, providing high performance with low power consumption.
Integrated Vacuum System: Ensures secure material fixation for precise cutting results.
1600×2600mm CO₂ Laser Cutting Machine:
| Parameter | Specification |
|---|---|
| Model | JG-2616D/2616DC |
| Feed Width | 1600 mm |
| Processing Range (W×L) | 1600 × 2600 mm |
| Cutting Speed | 0-400 mm/s |
| Laser Type | CO₂ Metal Laser |
| Laser Power | 55 W |
| Laser Wavelength | 9.3 μm |
| Cutting Accuracy | 0.03 mm |
| Positioning Accuracy | 0.01 mm |
| Total Power | AC220V 6.0 KW |
| Net Weight | 3000 kg |
| Main Engine Size (L×W×H) | 3200 × 2550 × 1400 mm |
| Supported Graphic Formats | DXF, AI, PLT |
| Sucker Type | Vacuum Chuck |
| Cutting Energy Control | 0-99% Software Control |
| Stratified Cutting | Yes |
| Cooling Mode | Air Cooling |
| Operating Temperature | 5°C - 30°C |
| Applicable Materials | EVA, PE Foam, 3M, PET, PC, Paper, OCA, Polarizer Films, Optical Films, Backlight Films, Leather, Electronic Insulation Materials, Double-Sided Adhesive, and other non-metallic materials. |
The JG-2616D/2616DC Laser Cutter is widely used for precision cutting in various industries:
Electronics & Optical Industry: Cutting optical films, polarizer films, backlight films, OCA films, and other display materials.
Automotive & Aerospace: Processing EVA foam, insulation materials, and adhesive sheets for soundproofing and sealing applications.
Packaging & Protective Materials: Cutting double-sided adhesive films, cushioning foams, and protective sheets for mobile devices and electronics.
Medical Industry: Cutting medical-grade adhesive tapes, filter membranes, and protective films.
Fashion & Leather Industry: Cutting synthetic leather, decorative materials, and precision textile applications.
✅ High-Speed Cutting for maximum productivity
✅ Smooth, burr-free edges for high-quality finishing
✅ Supports intricate designs with fine detail precision
✅ Low maintenance and long lifespan CO₂ laser
✅ Ideal for flexible, adhesive, and optical materials
