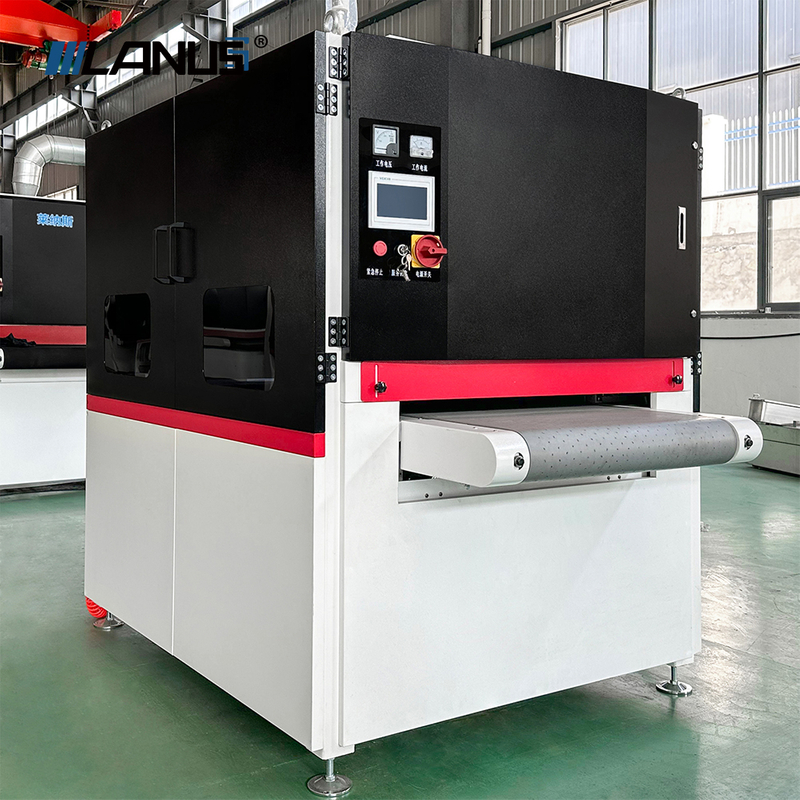

800mm Deburring Machine for Sheet Metal Deburring And Metal Finishing

Product Name:

800mm Deburring and Metal Finishing Machine for Sheet Metal Processing

Product Description:

The 800mm Deburring and Metal Finishing Machine is an advanced and efficient solution designed for deburring, edge rounding, and surface finishing of sheet metal components. Whether your parts are laser cut, punched, stamped, or sheared, this machine delivers clean, safe, and aesthetically pleasing surfaces ready for painting, powder coating, or welding.

Equipped with abrasive belt heads and rotary brush units, it can handle a wide variety of materials including carbon steel, stainless steel, aluminum, and copper. The machine provides consistent R-edge rounding (up to R0.2mm), uniform surface textures, and reduced labor costs by replacing time-consuming manual processes.

Key Features:

• Working Width: 800mm

• Processing Thickness: 0.5 – 80mm

• Minimum Part Size: 50mm × 50mm

• Materials Supported: Mild steel, stainless steel, aluminum, non-ferrous metals

• Deburring System: Combination of wide abrasive belt + oscillating barrel brush or disc brush

• Finishing Capability: Achieves uniform surface finish and edge rounding in one pass

• Edge Radius: Up to R0.2mm

• Feed Speed: 0.5 – 6 m/min (adjustable)

• Brush Speed: 500 – 1400 rpm with inverter control

• Dust Collection: Optional dry or wet dust extraction system

• User Interface: Touchscreen HMI for easy operation with preset programs

Applications:

• Sheet metal deburring after laser cutting or punching

• Edge rounding for safer handling and better coating adhesion

• Surface finishing for aesthetic and protective purposes

• Oxide removal from cut edges

• Pre-treatment before welding or painting

Advantages:

• One-pass solution for deburring and finishing

• High consistency and repeatability for batch processing

• Reduces manual labor and safety risks

• Enhances coating quality by cleaning and rounding edges

• Compact footprint and user-friendly operation

1. Main Processing Scope

1. Applicable Materials:
   Carbon steel, stainless steel, aluminum plates, copper plates, and various non-ferrous metals.

2. Main Functions:
   The MSP-M800 is a dry-type deburring machine equipped with four sets of planetary universal abrasive roller brushes. It is specifically designed for removing burrs from part edges and holes, especially those caused by stamping, shearing, or laser cutting processes. It provides complete 360° deburring in a single pass and produces a uniform small-radius edge rounding effect (R angle). The deburring process is safe, reliable, and enhances the overall surface quality without damaging the workpiece.

2. Working Principle

The machine uses four groups of planetary universal abrasive roller brushes. Adjacent brushes rotate in opposite directions (self-rotation and planetary rotation), creating high-speed centrifugal grinding, scraping, cutting, and filing actions on part edges and inner holes.
This ensures full coverage deburring without blind spots, while preserving dimensional accuracy. The machine achieves uniform R angle edge rounding, with the radius adjustable by selecting different abrasive materials and brush configurations.

This through-feed machine is particularly effective for laser-cut or CNC-punched sheet metal parts with protective film. It removes burrs thoroughly without damaging the film or scratching the sheet. The specially designed soft abrasive filaments target only burrs, making the machine ideal for scratch-free deburring of delicate sheet metal parts, including irregularly shaped components.

3. Workpiece Fixation and Dust Collection

• The powerful vacuum table fixes parts securely during processing. Parts as small as 50mm × 50mm (without holes) can be processed directly without additional tooling. Special jigs can be provided for irregular parts.

• Conveyor feed is variable-frequency adjustable for speed control.

• The machine is equipped with a wet-type dust collector, using a top-mounted high-pressure blower to extract grinding dust into a sealed chamber. Water mist traps dust particles, and clean air is exhausted into the atmosphere.
  This system:

• Improves the working environment.

• Reduces safety hazards.

• Enables environmentally friendly recycling of metal powder.

4. Advantages of Using MSP-M800

1. Increased Productivity:
   Continuous feed-through processing meets high-volume production demands.

2. Superior Product Quality:
   Consistent and uniform surface finishing far exceeds manual results.

3. Lower Operational Costs:
   Much lower cost per unit area compared to manual deburring.

4. Safe and Eco-friendly:
   Effective dust collection ensures operator safety and a cleaner work environment.

5. Technical Specifications

6. Installation Requirements

1. Installation Space: At least 4m × 3.5m (flat and level).

2. Power Supply: 380V, 50Hz (±10%).

3. Compressed Air: Clean and dry compressed air required.
