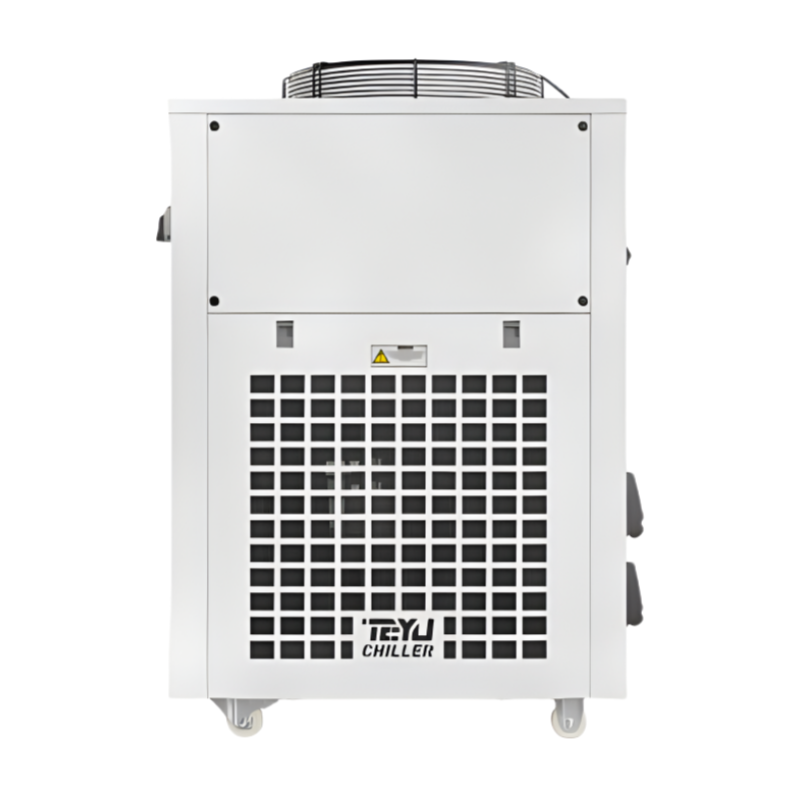

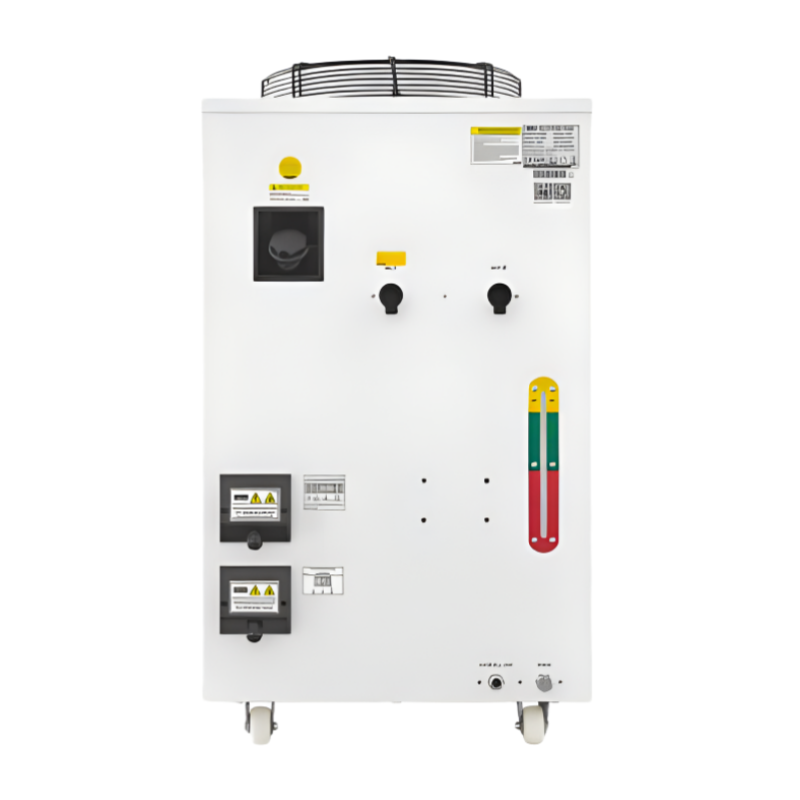

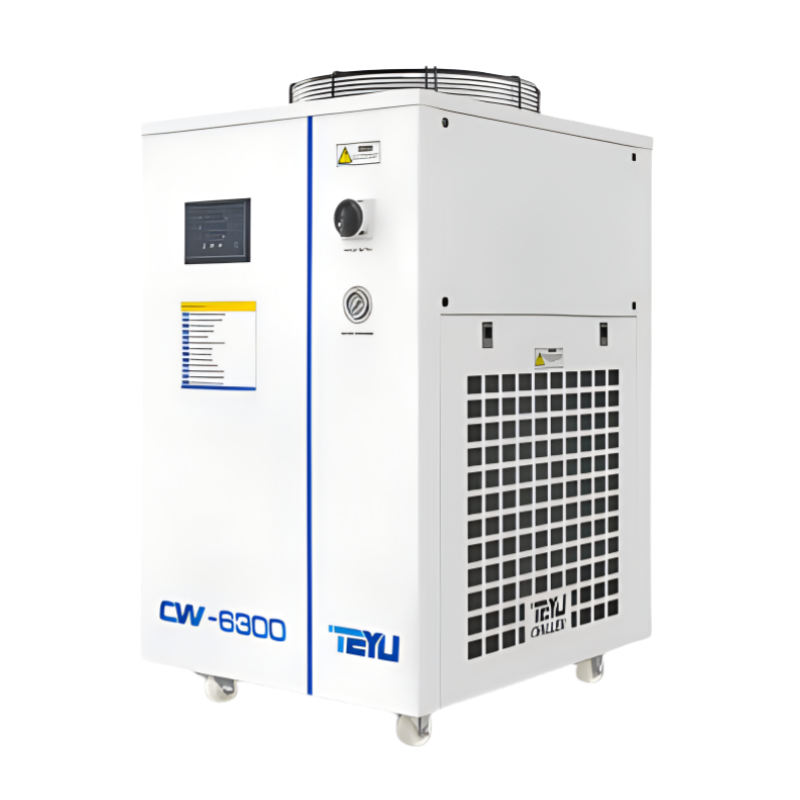

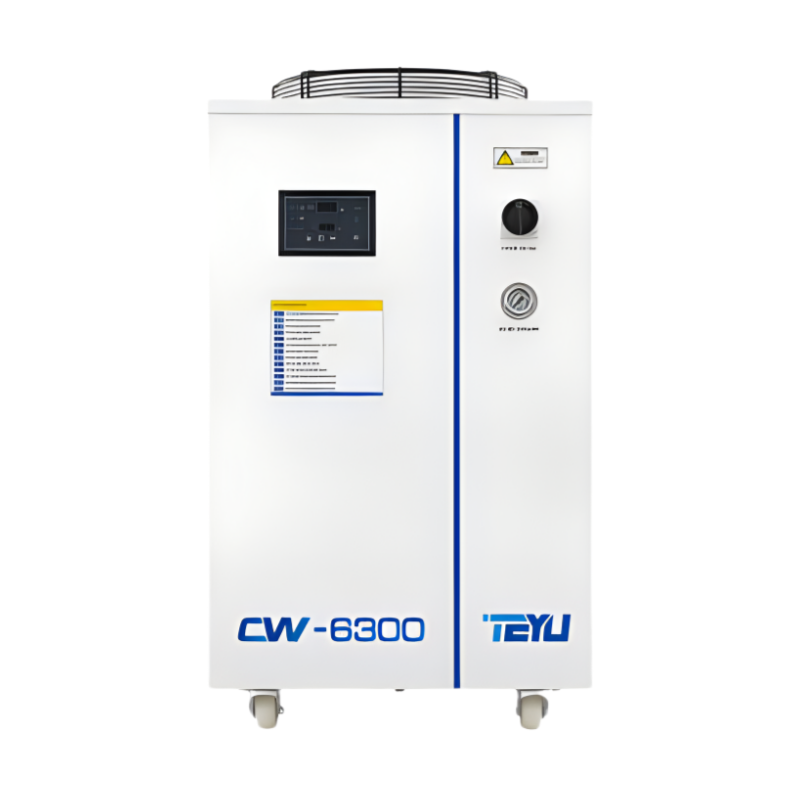

CW-6300
Overview:The CW-6300 Water Chiller is specially designed for cooling high-powered laser systems, including 400W CNC CO2 laser cutting machines. With a robust cooling capacity, this chiller ensures stable operation of your laser equipment by maintaining optimal temperatures and preventing overheating.
Key Features:
High Cooling Capacity:
Provides a cooling capacity of up to 8500W, making it ideal for high-powered 400W CNC CO2 laser machines.
Precision Temperature Control:
Ensures a consistent water temperature with a stability of ±0.5°C, protecting the laser tube from temperature fluctuations.
Temperature Range:
The adjustable temperature control range is 5°C to 35°C, suitable for various operating environments and different laser applications.
Energy Efficient:
Built with energy efficiency in mind, reducing power consumption while delivering excellent performance.
Dual Temperature Modes:
Offers constant temperature mode and intelligent temperature control mode, allowing the user to select the most appropriate mode for their specific laser operation.
Refrigerant:
Uses R-410a refrigerant, which is environmentally friendly and highly effective for cooling purposes.
Integrated Alarms:
Features multiple alarms, including over-temperature, water level, and flow rate alerts, ensuring safe and reliable operation.
User-Friendly Interface:
Comes with an intuitive control panel that allows for easy setup and monitoring of chiller performance.
Durability and Mobility:
Equipped with a corrosion-resistant water tank and a durable steel frame. Caster wheels provide easy mobility, making the chiller portable and convenient to move around the workspace.
The CW-6300 Water Chiller is an efficient cooling solution designed specifically for high-performance CNC CO2 laser cutting machines. It offers precise temperature control and ensures stable operation by effectively dissipating heat from the laser system, thereby extending the lifespan of the laser tube and preventing potential overheating issues.
Key Specifications:
Model: CW-6300
Machine Size: 83 cm (L) x 65 cm (W) x 117 cm (H)
Warranty: 2 years
Compliance Standards: CE, REACH, RoHS
Product Parameters:
| Parameter | CW-6300ANTY | CW-6300BNTY | CW-6300ENTY |
|---|---|---|---|
| Voltage | AC 1P 220-240V | AC 1P 220-240V | AC 3P 380V |
| Frequency | 50Hz | 60Hz | 50Hz |
| Current | 3.4~26.3A | 3.9~29.3A | 1.2~12.6A |
| Max. Power Consumption | 5.24kW | 5.44kW | 5.52kW |
| Compressor Power | 2.64kW (3.59HP) | 2.71kW (4.28HP) | 2.65kW (3.6HP) |
| Cooling Capacity | 30708 Btu/h (9kW, 7738 Kcal/h) | ||
| Refrigerant | R-410a | ||
| Precision | ±1°C | ||
| Pump Power | 0.55kW | 0.75kW | |
| Tank Capacity | 40 liters | ||
| Max Pump Pressure | 4.4 bar | 5.3 bar | 5.4 bar |
| Max Pump Flow | 75 L/min | ||
| Inlet & Outlet | Rp1" | ||
| Net Weight (N.W.) | 113kg | 123kg | 121kg |
| Gross Weight (G.W.) | 140kg | 150kg | 145kg |
| Dimension | 83 x 65 x 117 cm | ||
| Package Dimension | 95 x 77 x 135 cm |
Note: The working current may vary depending on operating conditions. The above information is for reference; please refer to the actual delivered product.
High Cooling Capacity: 9,000W (30708 Btu/h)
Precision Control: Temperature stability of ±1°C for accurate performance
Temperature Control Range: 5°C ~ 35°C, suitable for various laser cutting applications
Refrigerant: Environmentally friendly R-410a for effective cooling
Intelligent Temperature Controller: Offers user-adjustable modes for constant and intelligent temperature control
RS-485 Modbus Communication Function: Enables seamless integration into industrial automation systems
Multiple Alarm Functions: Equipped with alarms for over-temperature, water level, and flow issues to enhance safety
Mobility: Caster wheels make it easy to move around and position
Immediate Usability: Ready for operation upon delivery, minimizing setup time
Voltage Options: Available in both 220V and 380V to suit different electrical systems
Applications:
This water chiller is ideal for industrial CNC CO2 laser cutting machines used in metalworking, manufacturing, engraving, and welding. It ensures that your high-powered laser system remains cool, operating efficiently, and free from heat-related malfunctions.
