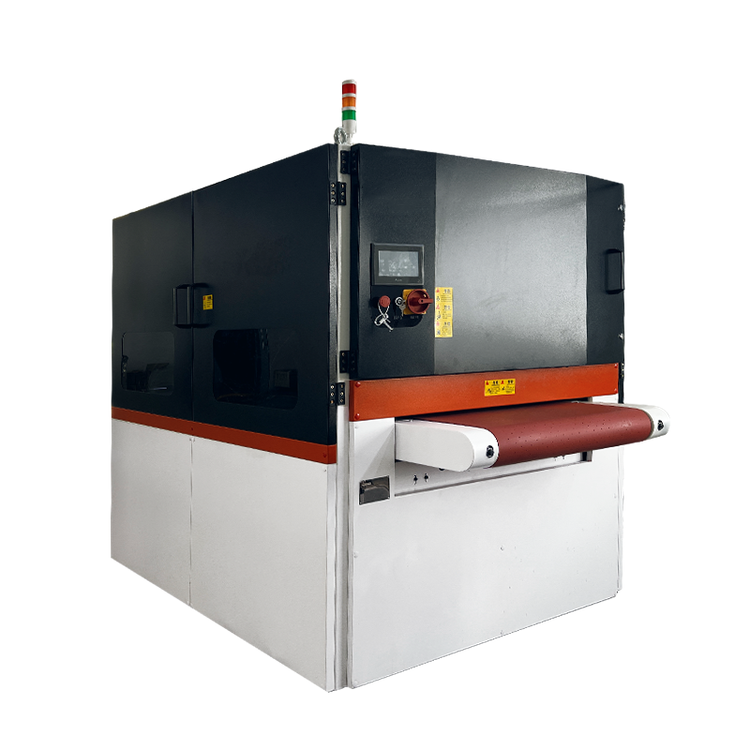

MSP-L800
This machine is used to clean the burrs formed after flame cutting processes of metal parts, round the sharp edges, and provide the parts with a smooth surface. It is suitable for materials like steel, aluminum, and stainless steel.
For Deburring and Edge Rounding After Flame Cutting of Metal Parts

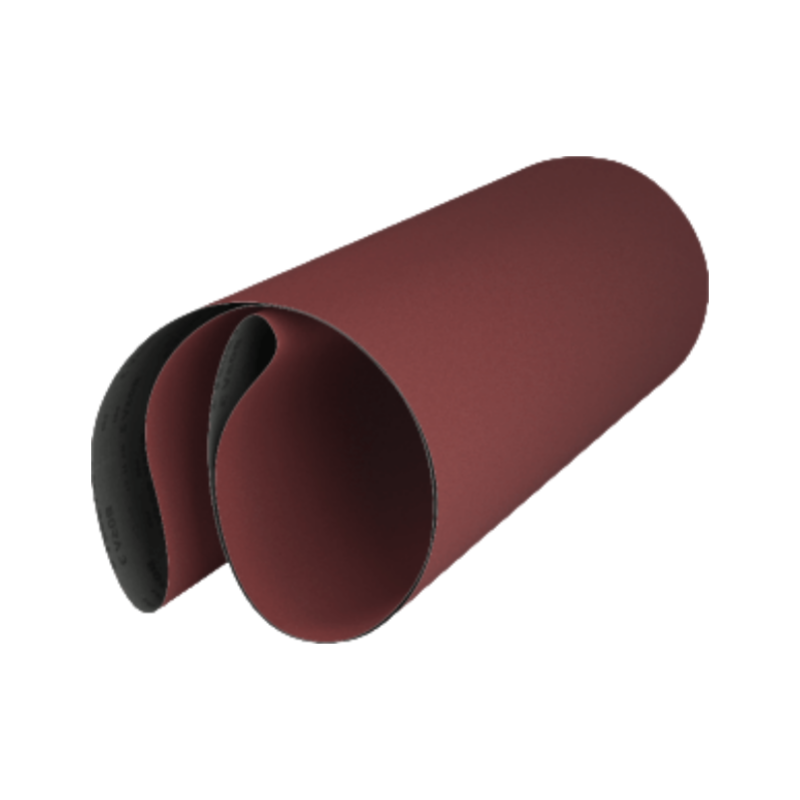

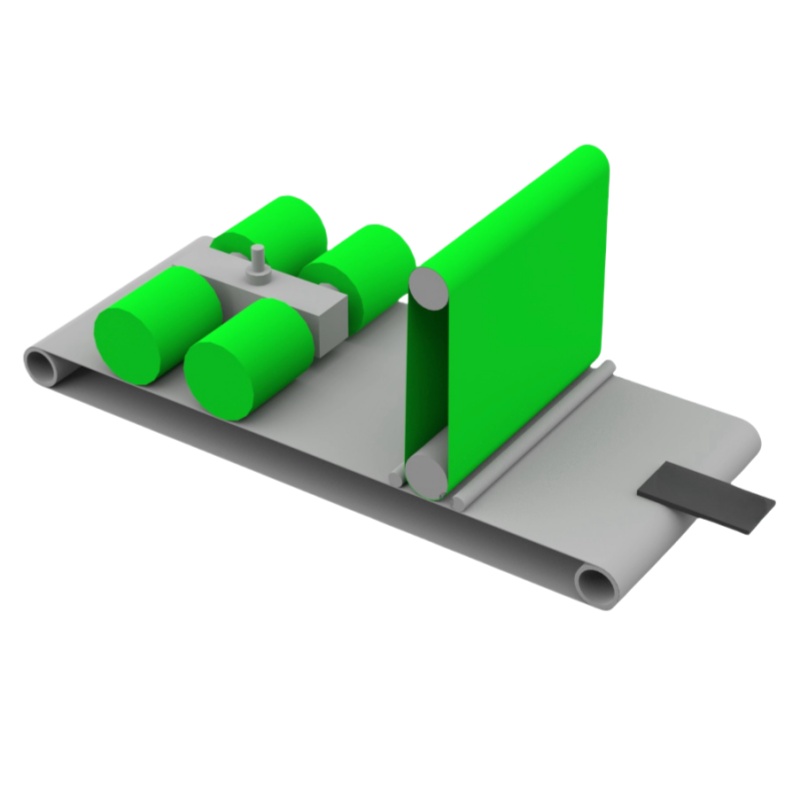

The Deburring and Edge Rounding Machine is designed to remove burrs and round off sharp edges formed during the flame cutting of metal components. It ensures high surface quality, safety, and readiness for subsequent processing steps such as coating or welding. This dual-station model combines a sanding belt (Φ1910mm × 800mm) with a set of four flap wheels (Ø300 × 300mm), providing powerful and consistent performance for both small and large sheet metal parts.
Flame-cut steel parts
Aluminum and stainless steel plates
Laser/plasma cut parts requiring safe, rounded edges
Preparation before powder coating or welding
| Feature | Details |
|---|---|
| Material | Steel, Aluminum, Stainless Steel |
| Processes | Deburring, Edge Rounding |
| Material Thickness (mm) | 0.5 - 80 |
| Max. Material Width (mm) | 800 |
| Min. Part Dimensions (mm) | 50 x 50 |
| Max. Material Weight (kg) | 350 |
| Conveyor Speed (m/min) | 0.5 - 6.0 |
| Dust Extraction Requirement (m³/h) | ≥ 3000 |
| Machine Power Consumption (kW) | 16.8 / 22.8 |
| Machine Weight (kg) | 2500 |
| Workpiece Holding | Magnetic (Vacuum Optional) |
| Model | Flap Wheels | Wheel Size | Belt Size | Conveyor Width | Speed (m/min) | Processes |
|---|---|---|---|---|---|---|
| MSP-L800 | 4 pcs | Ø300 × 300 mm | Φ1910 × 800 mm | 800 mm | 0.5 - 8.0 | Deburring, Edge Rounding |
