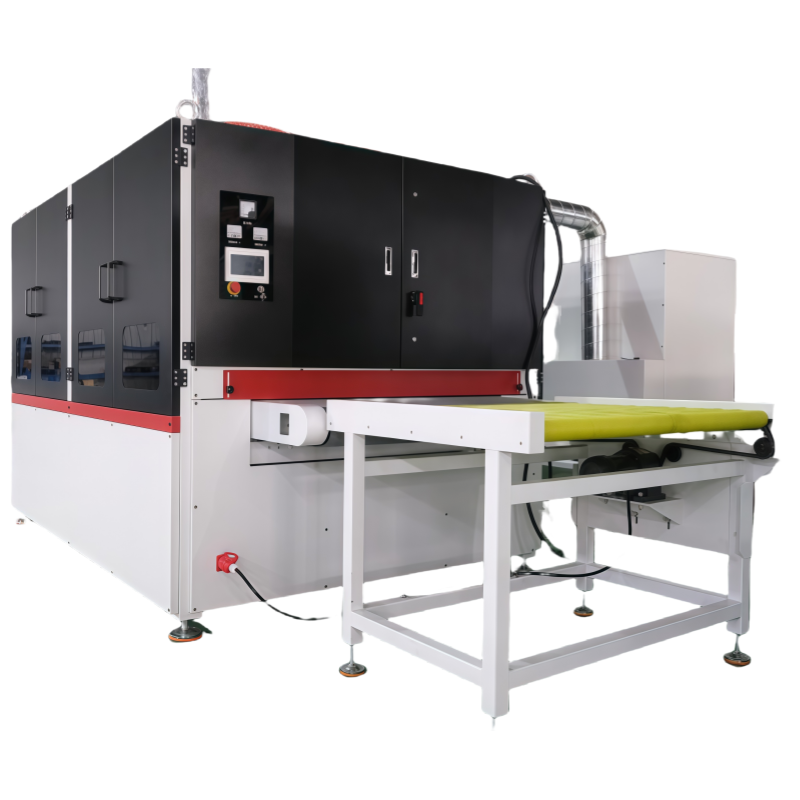

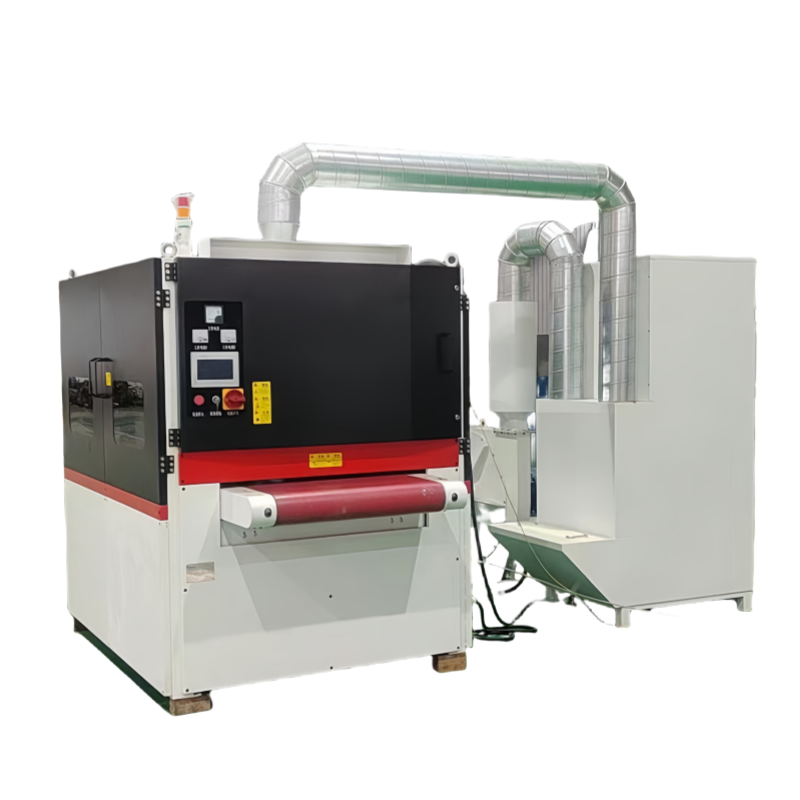

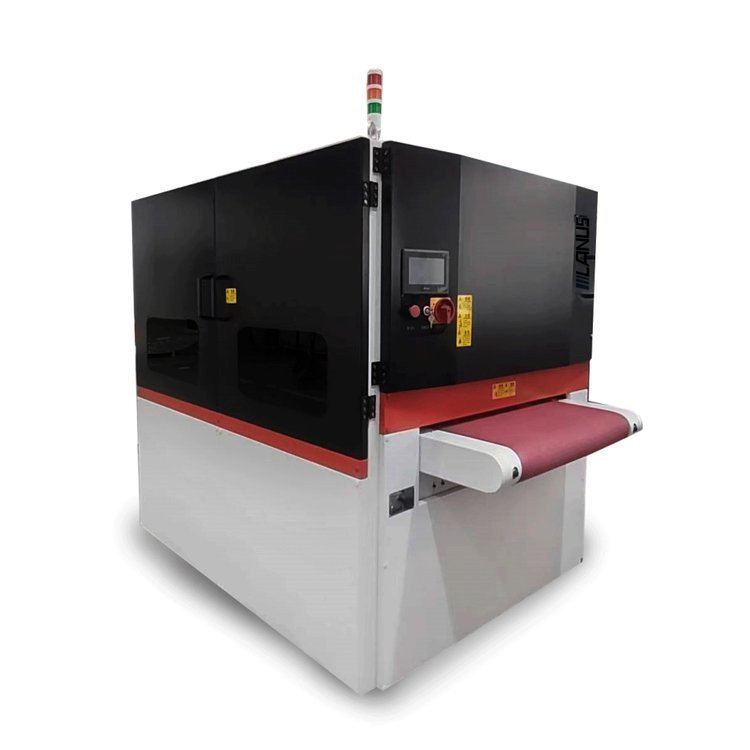

Deburring Machine for Flame-cut And Plasma-cut Parts

Deburring Machine for Flame-Cut and Plasma-Cut Metal Parts

Available in 1000 mm and 1350 mm Working Widths | 1–4 Grinding Stations

This heavy-duty deburring and edge rounding system is specifically engineered to handle the tough slag, burrs, and oxide layers created by oxy-fuel and plasma cutting. With up to four configurable grinding stations, it provides robust performance, flexibility, and superior surface quality for thick and uneven metal parts.

✅ Key Features:

• Working Widths:

• 1000 mm

• 1350 mm

• Material Compatibility:

• Carbon steel

• Stainless steel

• Alloy steels

• Thick plates from 5 mm to 100 mm+

• Suitable for:

• Flame-cut parts

• Plasma-cut parts

• Heavy slag removal

• Edge rounding & oxide removal

️ Grinding Station Configurations:

• 1 Station:

• Single wide abrasive belt for basic slag removal

• 2 Stations:

• First unit: Abrasive belt for slag/burr grinding

• Second unit: Rotary brush or second belt for finer deburring

• 3 Stations:

• Dual abrasive belts for aggressive grinding

• One rotary brush for oxide removal & edge rounding

• 4 Stations:

• Ideal for one-pass deburring and finishing

• Multi-directional brushes + sanding belts for optimal results on thick plates and edges

Machine Highlights:

• Heavy-duty construction for industrial reliability

• High stock removal capacity for thick slag

• Optional oscillating brushes for even edge rounding

• Vacuum or magnetic conveyors to hold large/heavy parts

• Touchscreen HMI with program memory and adjustable speeds

• Optional wet grinding system for heat-sensitive applications

• Dust extraction or wet collection systems integrated

Advantages:

• Deburrs, deslags, and finishes in one pass

• Significantly reduces manual grinding and rework

• Perfect for parts from laser, plasma, flame, and waterjet cutting

• Improves safety, weld prep quality, and coating adhesion
