Precision Laser Cutting Services for SMT Stencils
We specialize in Laser Cut SMT Stencils and Quick-Turn Rework Stencils designed for high-precision applications.

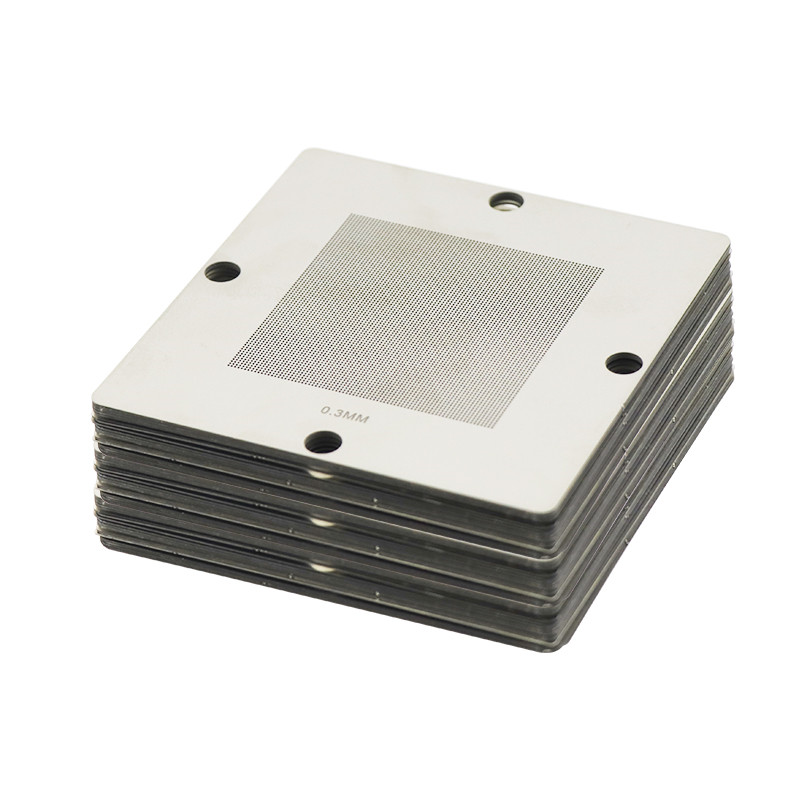

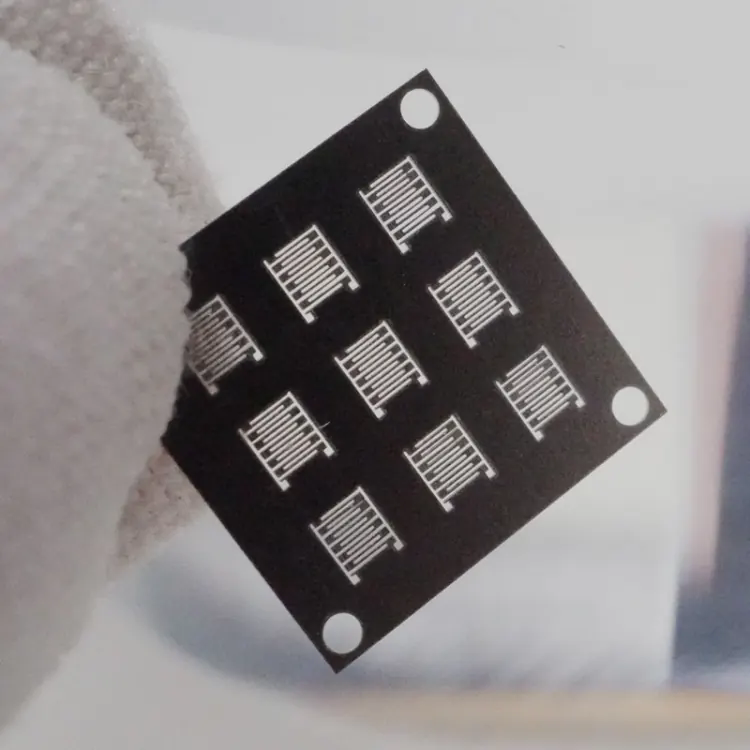

QUICK-TURN REWORK STENCILS
Maximum Size: 2" x 2"
Optional Flaps: Available with or without flaps to facilitate easy handling.
Applications: Primarily used for PCB rework, but also suitable for prototype PCB assembly of simple boards.
SPECIFICATIONS
Technology: 100% Laser Cut
Material: Stainless Steel
Stencil Thickness: .002 - .016 inches
Minimum Cut Width: .002 inches
Maximum Size: 2" x 2" inches
Aperture Tolerance: Within .00025 inches
Fiducial Data: Supported
Precision Laser Cutting Services for SMT Stencils, Laser Cut SMT Stencils, and Quick-Turn Rework Stencils
Our precision laser cutting services are specialized for manufacturing high-quality SMT stencils, laser cut SMT stencils, and quick-turn rework stencils. Using state-of-the-art laser technology, we ensure burr-free, stress-free cuts with exceptional accuracy and consistency. Our stencils are made from premium stainless steel materials, providing durability and reliable performance for even the most demanding surface mount technology (SMT) applications.
Applications:
SMT Stencils: Used for accurately depositing solder paste onto printed circuit boards (PCBs) during the assembly process, ensuring consistent soldering quality and improving production efficiency.
Laser Cut SMT Stencils: Ideal for both prototype and production runs, these stencils offer sharp, clean aperture edges for better paste release and precise component placement.
Quick-Turn Rework Stencils: Designed for fast PCB repairs and modifications, perfect for BGA rework, QFN, and other fine-pitch components. Available with or without handling flaps for easier operation.
Service Features:
100% precision laser cutting with ultra-fine tolerances
Burr-free and stress-free finishing for enhanced stencil life
Support for prototype to high-volume production
Quick-turn manufacturing available for urgent projects
Various thickness options (.002" to .016") to meet different paste printing requirements
Custom designs based on customer-provided Gerber or CAD files
Optional flaps for easier manual handling
Fiducial marks and alignment options available
