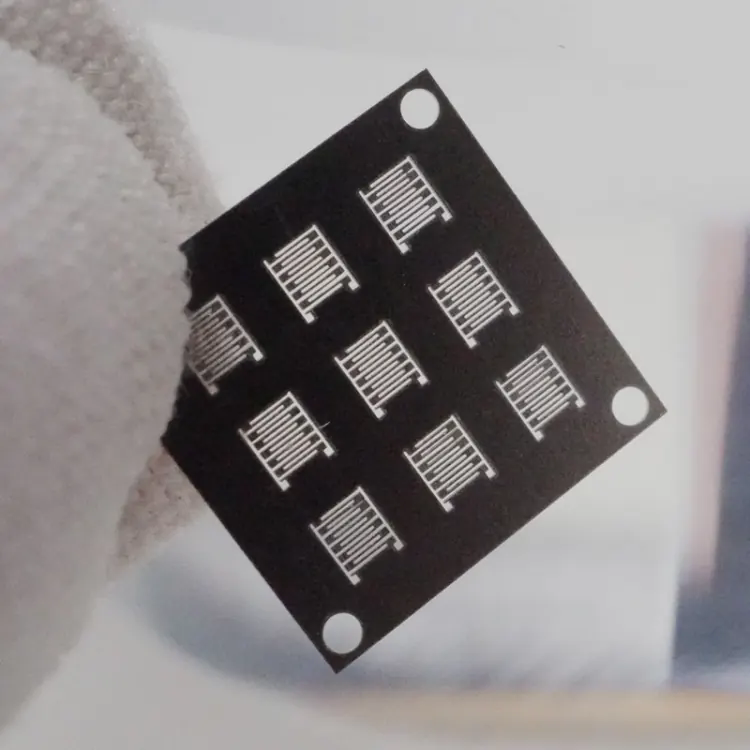

Our Prototype SMT Stencils are laser-cut to precise specifications for manual solder paste printing onto printed circuit boards (PCBs). These frameless SMT stencils are custom-made based on your Gerber or CAD files, ideal for prototype PCB assembly. The stencils are available with or without flaps, and come with a squeegee blade and board holders for easy handling.
With a fast 24-hour lead time, these stencils can help eliminate the tedious process of hand soldering and reduce assembly time for your prototype PCB projects. Plus, we back our process with a money-back guarantee, ensuring satisfaction with your results.
Burr-Free & Stress-Free Finish: Laser cutting ensures clean, precise edges without burrs or stress, enhancing your prototype PCB’s quality.
Quick Turnaround: 24-hour turn on laser-cut stencils, so you can keep your project timeline on track.
Material: High-quality stainless steel, durable for multiple uses.
Thickness Options: Stencil thicknesses from .002” to .016” for different levels of precision.
Easy to Use: Designed for manual paste printing, ideal for small production runs or prototyping.
Kit Includes: Squeegee blade and board holders for easy setup and application.
Eliminates Hand Soldering: No more painstaking hand soldering of prototype PCBs.
Improved Quality: More consistent solder paste application, reducing defects in the soldering process.
Cost-Effective: Less expensive than production-grade stencils, ideal for low-volume or prototype PCB projects.
Time-Saving: Faster prototype assembly thanks to improved efficiency with laser-cut stencils and reflow toaster oven processing.
Versatile: Compatible with double-sided SMT boards.
Technology: 100% Laser Cut
Material: Stainless Steel (durable for multiple uses)
Stencil Thickness: 0.002” - 0.016”
Minimum Cut Width: 0.002 inches
Maximum Size: 12” x 10” inches
Aperture Tolerance: ±0.00025 inches
Fiducial Data: Yes, included for alignment.
Flaps: Choose between with or without flaps for your specific needs.
Aperture Count: Customize the number of apertures based on your PCB design.
Stencil Dimensions: Select length and width for your stencil.
Alignment: Options for offset or center alignment.
Circuit Board Panelization: Option to confirm if your board is panelized.
