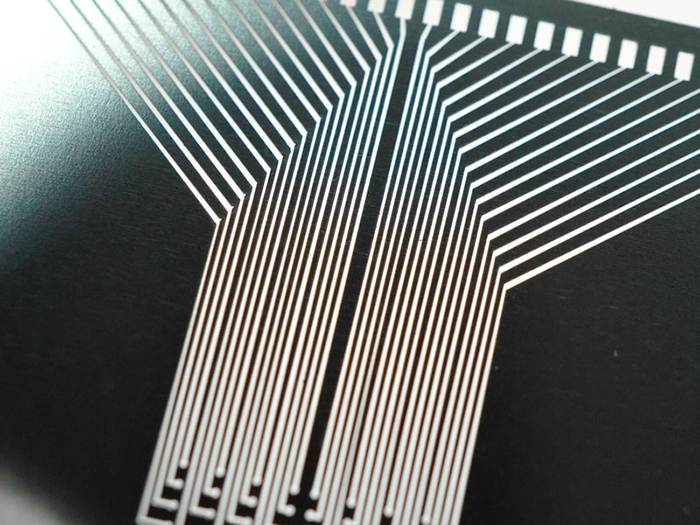

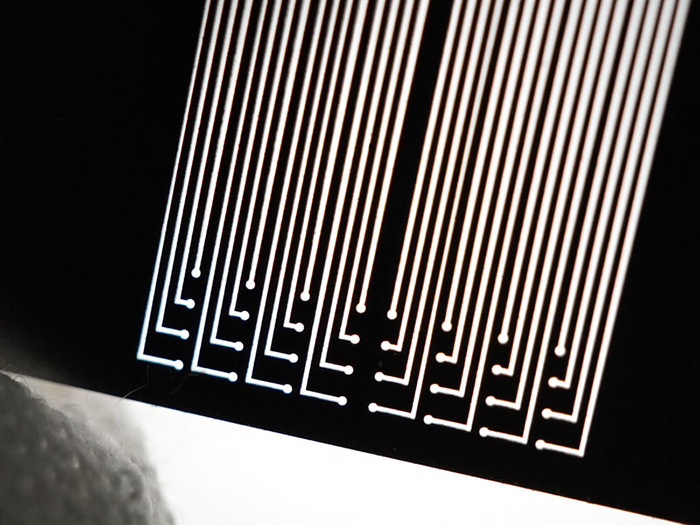

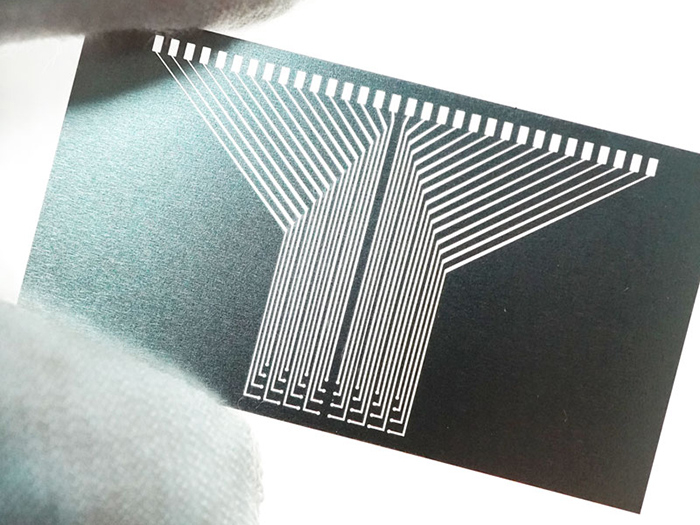

Shadow Masks
Organic Light Emitting Diode (OLED) technology has revolutionized the display industry, offering superior image quality, flexibility, and energy efficiency. A critical step in OLED display and panel fabrication is the precise deposition of organic materials onto substrates. This is achieved through the use of shadow masks and deposition masks, which control the spatial pattern of material deposition to form pixels and subpixels with exact dimensions.
To meet the demanding precision and quality requirements of OLED manufacturing, precision laser cutting machines are widely used to fabricate these masks with micron-level accuracy and complex aperture patterns.
Defining Pixel Geometry:
Masks precisely shape the organic emissive layers to create red, green, and blue subpixels essential for full-color displays.
Ensuring Uniformity:
Accurate aperture sizes and placement enable consistent material deposition, critical for uniform brightness and color fidelity across the display panel.
Supporting Flexible and Curved Displays:
Masks can be designed and cut to fit flexible substrates, enabling the production of bendable and foldable OLED panels.
Micron-Level Aperture Accuracy:
Laser cutting achieves extremely small hole sizes (down to a few microns), essential for high-resolution displays with fine pixel pitches.
Complex Patterning Capability:
The technology supports intricate patterns, including varied aperture shapes and sizes required for different subpixel designs.
Minimal Thermal Distortion:
Laser cutting minimizes heat-affected zones, preserving mask flatness and dimensional stability, which is critical for precise alignment during deposition.
Material Compatibility:
Common mask materials like stainless steel, nickel, and other alloys can be processed to deliver durable, corrosion-resistant masks suitable for repeated use.
High Throughput and Repeatability:
CNC-controlled laser cutting systems ensure consistent production quality for large volumes, supporting mass manufacturing of OLED panels.
Large-Area OLED Displays:
Precision laser-cut masks enable uniform material deposition over large substrate areas, ensuring consistent display performance.
Flexible and Foldable OLEDs:
Masks tailored for flexible substrates maintain pattern accuracy despite bending or deformation during use.
Micro-LED and Emerging Display Technologies:
Adaptable laser cutting processes support the evolving requirements of next-generation display fabrication.
Precision laser cutting machines play a pivotal role in the fabrication of shadow masks and deposition masks for OLED display and panel manufacturing. Their ability to deliver unmatched accuracy, intricate patterning, and reliable production quality directly contributes to the superior performance and visual quality of modern OLED devices.
By leveraging advanced laser cutting technology, manufacturers can meet the evolving demands of the OLED market, ensuring high yields, improved display uniformity, and cost-effective production.
