RRRR1300

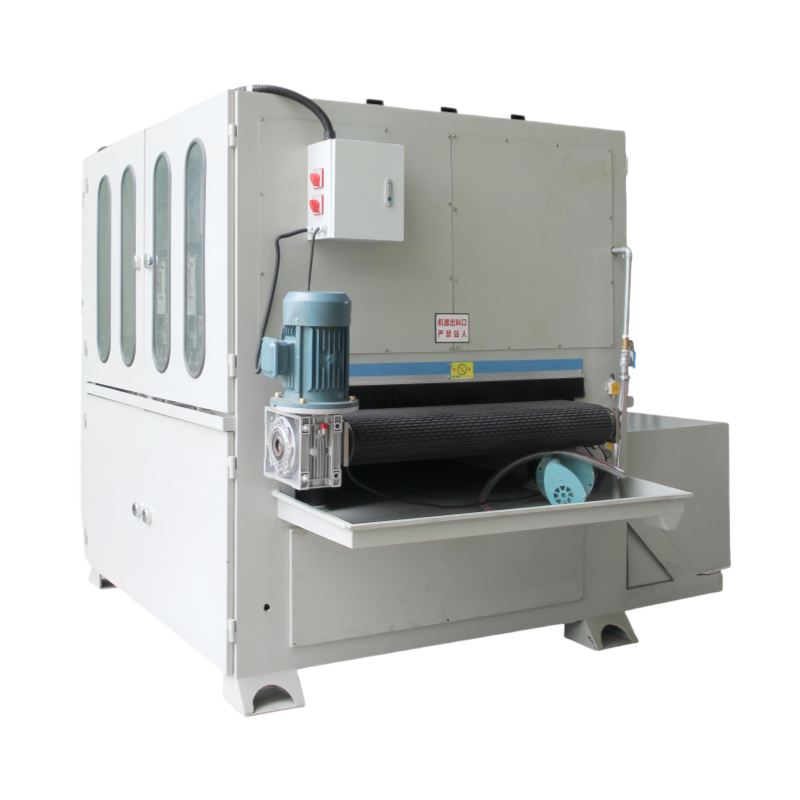

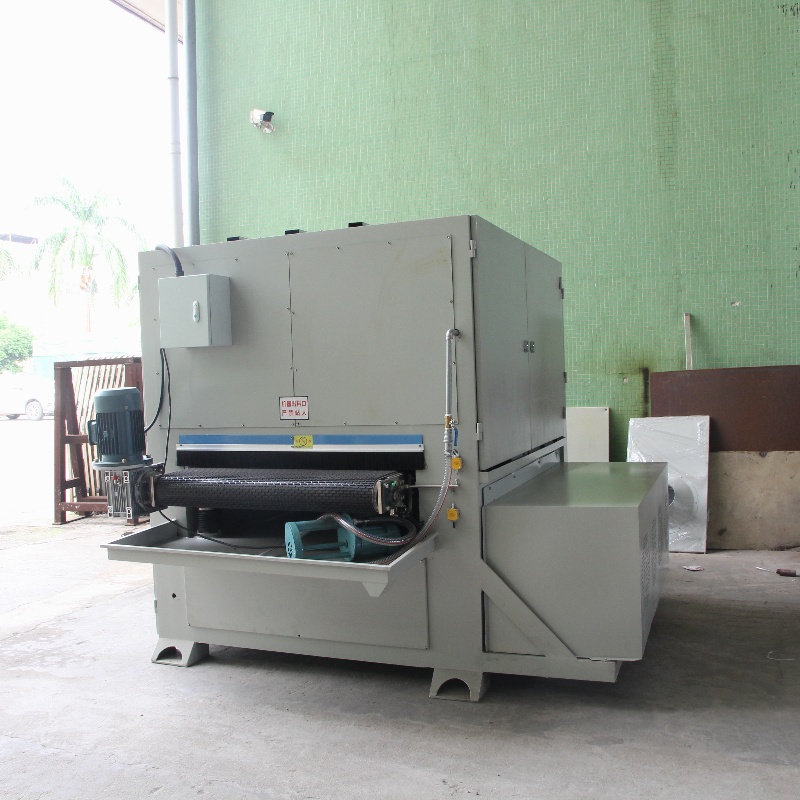

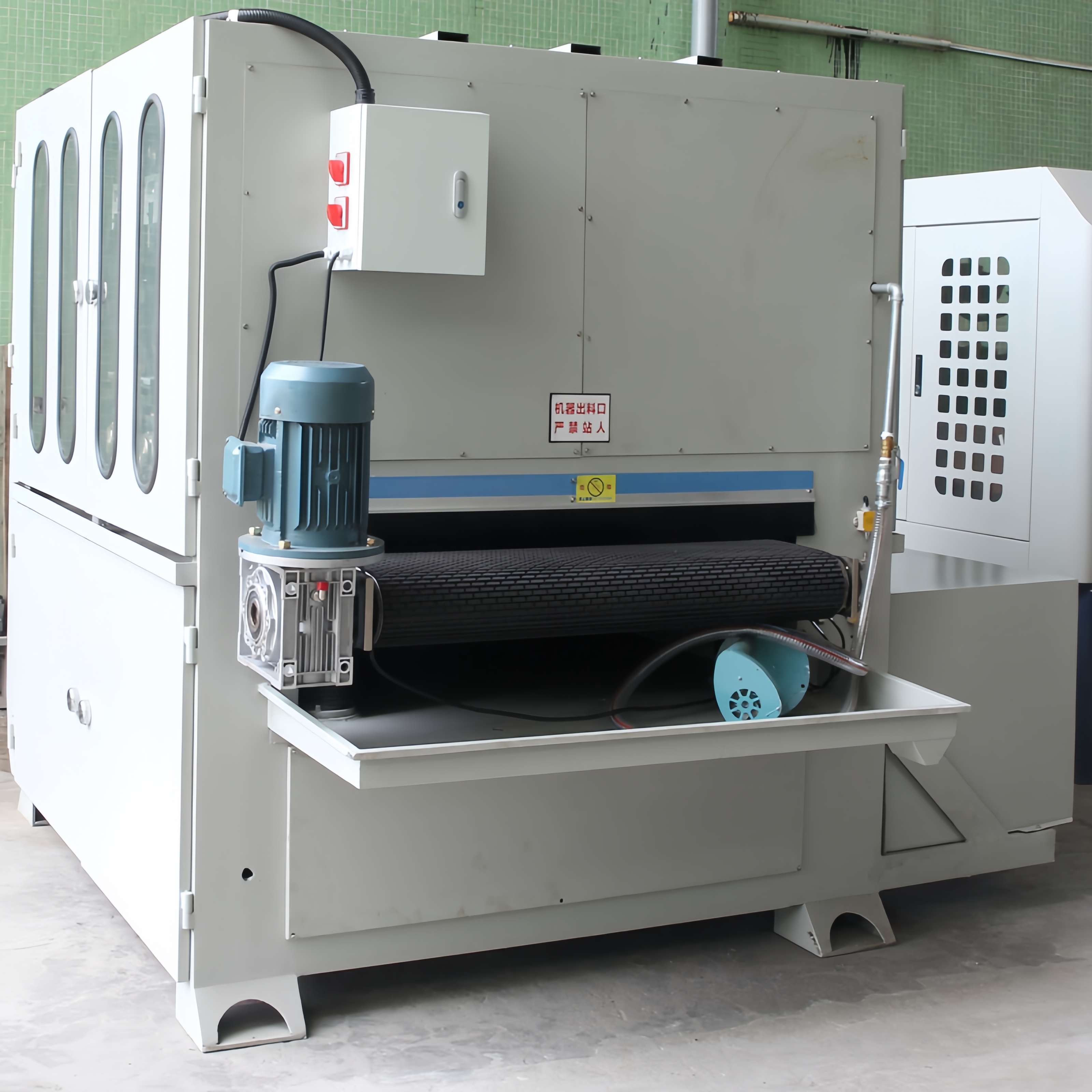

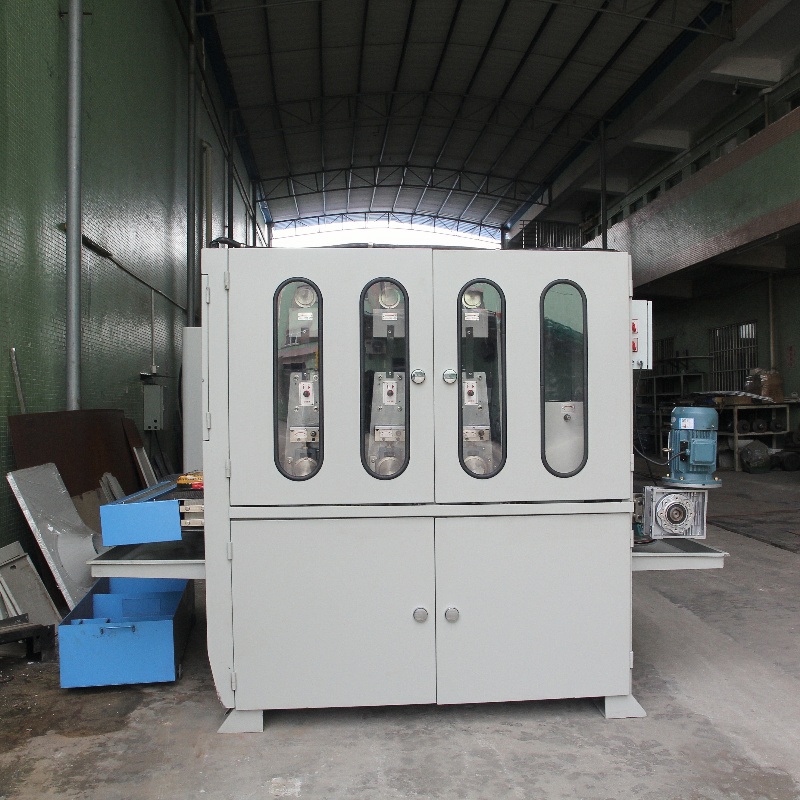

The RRRR1300 Wet Wide Belt Sander is a high-performance industrial metal finishing machine designed for deburring, slag removal, edge rounding, oxide removal, and fine surface finishing on large metal sheets and parts. With a 1300mm working width, multi-head configuration, and a built-in wet filtration collector, this model delivers safe, clean, and efficient processing of a wide range of ferrous and non-ferrous metals.
✅ Extra-Wide 1300mm Working Capacity: Designed for large format sheet metal processing — suitable for steel, stainless steel, aluminum, copper, and special alloys.
✅ Wet Processing System: Equipped with a cooling water spray system that eliminates heat buildup, suppresses dust, and prevents oxidation, resulting in perfect surface quality.
✅ Heavy-Duty Multi-Head Design: Combines dual/triple abrasive belt heads, rotating brush stations, and optional planetary brushes for comprehensive finishing in a single pass.
✅ Integrated Wet Collector: Includes a high-capacity wet dust and sludge filtration system to efficiently capture grinding residues, keeping the workshop clean and dust-free.
✅ Industrial Conveyor Belt: Heavy-duty feed belt with variable speed drive (0.5-6 m/min) ensures steady and precise material handling.
✅ Precision Thickness Control: Servo or manual adjustment with ±0.01mm accuracy supports a wide processing thickness range of 0.8mm to 80mm.
Heavy slag removal after plasma or flame cutting.
Deburring of sharp edges and internal cut-outs from laser-cut metal sheets.
Oxide layer cleaning for carbon steel, improving paint or coating adhesion.
Edge rounding (up to R2 mm radius) for improved safety and corrosion protection.
Decorative surface finishing on stainless steel panels, including hairline or matte finishes.
Pre-painting or pre-welding surface preparation.
| Specification | Unit | RRRR1300 |
|---|---|---|
| Maximum Working Width | mm | 1300 |
| Working Thickness | mm | 0.8 - 80 |
| Minimum Workpiece Size | mm | 50 × 50 |
| Conveyor Speed | m/min | 0.5 - 6 (adjustable) |
| Abrasive Belt Size | mm | 1910 × 1300 |
| Sanding Head Power | kW | 22-30 kW per head |
| Total Power Consumption | kW | 55-70 kW |
| Wet Collector Air Volume | m³/h | 5000-8000 m³/h |
| Cooling Method | - | Wet (water circulation) |
| Machine Weight | kg | ~5000 kg |
✅ All-in-One Processing Line: Deburring, slag removal, oxide cleaning, edge rounding, and surface finishing in one pass.
✅ Cleaner Production: Built-in wet collector reduces dust emissions and improves environmental compliance.
✅ Higher Productivity: Suitable for 24/7 industrial production, cutting down on manual grinding and rework.
✅ Reduced Consumable Costs: Wet grinding extends abrasive belt life and reduces tool consumption.
✅ Improved Product Quality: Uniform, high-precision finishing with repeatable results across all parts.
✅ Operator Safety: Wet process minimizes fire risks, ensures a cooler working environment, and reduces dust inhalation hazards.
✅ Rotary brush station for edge rounding.
✅ Planetary brush system for complex hole deburring.
✅ PLC touchscreen controller with recipe storage.
✅ Vacuum bed for small parts.
✅ Closed water circulation system with sludge separator.
