JG-4050J/4050JC

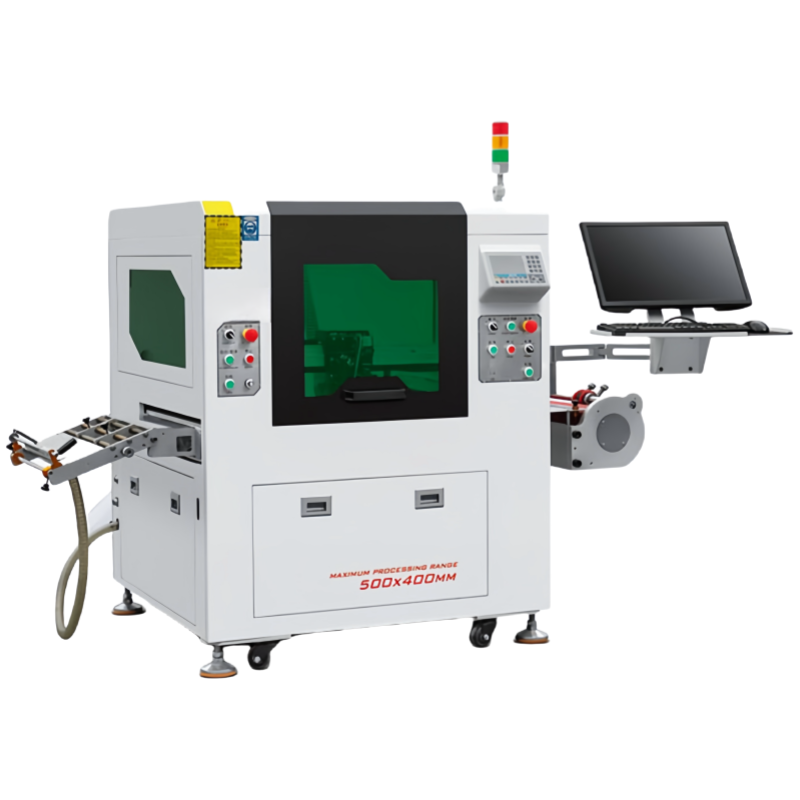

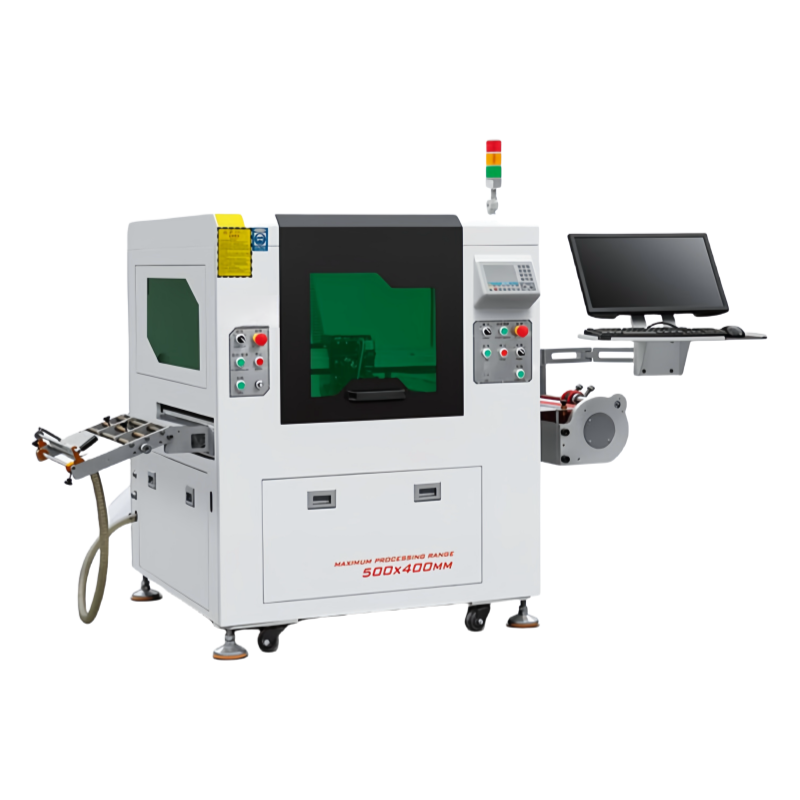

400×500mm CO₂ Laser Cutting Machine for film roll cutting:
| Parameter | Specification |
|---|---|
| Model | JG-4050J/4050JC |
| Feed Width | 400 mm |
| Processing Range (W×L) | 400 × 500 mm |
| Cutting Speed | 0-400 mm/s |
| Laser Type | CO₂ Metal Laser |
| Laser Power | 30 W / 55 W |
| Laser Wavelength | 9.3 μm |
| Cutting Accuracy | 0.03 mm |
| Positioning Accuracy | 0.01 mm |
| Total Power | AC220V 4.5 KW |
| Net Weight | 700 kg |
| Main Engine Size (L×W×H) | 1100 × 1100 × 1400 mm |
| Combined Size (L×W×H) | Not specified |
| Supported Graphic Formats | DXF, AI, PLT |
| Sucker Type | Vacuum Chuck |
| Cutting Energy Control | 0-99% Software Control |
| Stratified Cutting | Yes (Multiple cutting parameters by color) |
| Cooling Mode | Air Cooling |
| Operating Temperature | Not specified |
| Applicable Materials | 3M, EVA, PET, PC, Paper, POLO, OCA, Polarizer Films, Optical Films, Backlight Films, Foam, Leather, Electronic Insulation Materials, Double-Sided Adhesive, and other non-metallic materials. |
The 400×500mm CO₂ Laser Cutting Machine is designed for high-precision cutting of non-metallic materials, especially thin films like EVA, PET, and optical films.
High Precision Cutting:
The laser cutting machine delivers precise cutting with an accuracy of 0.03 mm, allowing for fine detailing on materials like films and foams.
The positioning accuracy is extremely fine, at 0.01 mm, ensuring precise cuts for complex designs.
Software Control:
The cutting energy can be controlled via software, allowing users to adjust the cutting parameters like intensity and speed based on the material being processed.
Multiple cutting parameters can be set for stratified cutting, making it suitable for cutting materials with varying thickness or specific patterns.
Versatility in Material Handling:
The machine supports a wide range of non-metallic materials, including 3M, EVA, PET, PC, optical films, polarizer films, leather, electronic insulation materials, foam, double-sided adhesives, and more.
Its precision and capability to work with such materials make it ideal for industries that require intricate designs, such as electronics, packaging, automotive, and textiles.
Vacuum Chuck for Material Handling:
The vacuum chuck ensures that the material remains fixed and stable during the cutting process, preventing misalignment and ensuring high-quality cuts.
Air Cooling System:
The air cooling system helps maintain the optimal operating temperature of the machine, ensuring continuous operation without overheating.
Film Cutting:
Ideal for cutting thin films used in electronics, packaging, and optical applications. This includes protective films, optical films, polarizer films, and more.
Commonly used in the production of smartphone screen protectors, backlight films, and LCD/LED displays.
Foam Cutting:
The machine can precisely cut EVA and PE foam, which are often used in packaging, automotive, and insulation applications.
Ideal for creating foam inserts, protective layers, or customized packaging solutions for delicate items.
Leather Cutting:
Suitable for cutting leather used in fashion, automotive interiors, and accessory production. The high precision ensures clean and accurate cuts for intricate designs.
Electronic Insulation:
It is frequently used in cutting materials like electronic insulation films for electrical components and devices, which require high accuracy to ensure proper functionality and safety.
Customizable Layers and Shapes:
The stratified cutting feature makes it possible to cut layers of materials with varying thicknesses or different cutting patterns. This feature is particularly useful in industries that require custom shapes or multi-layer designs.
