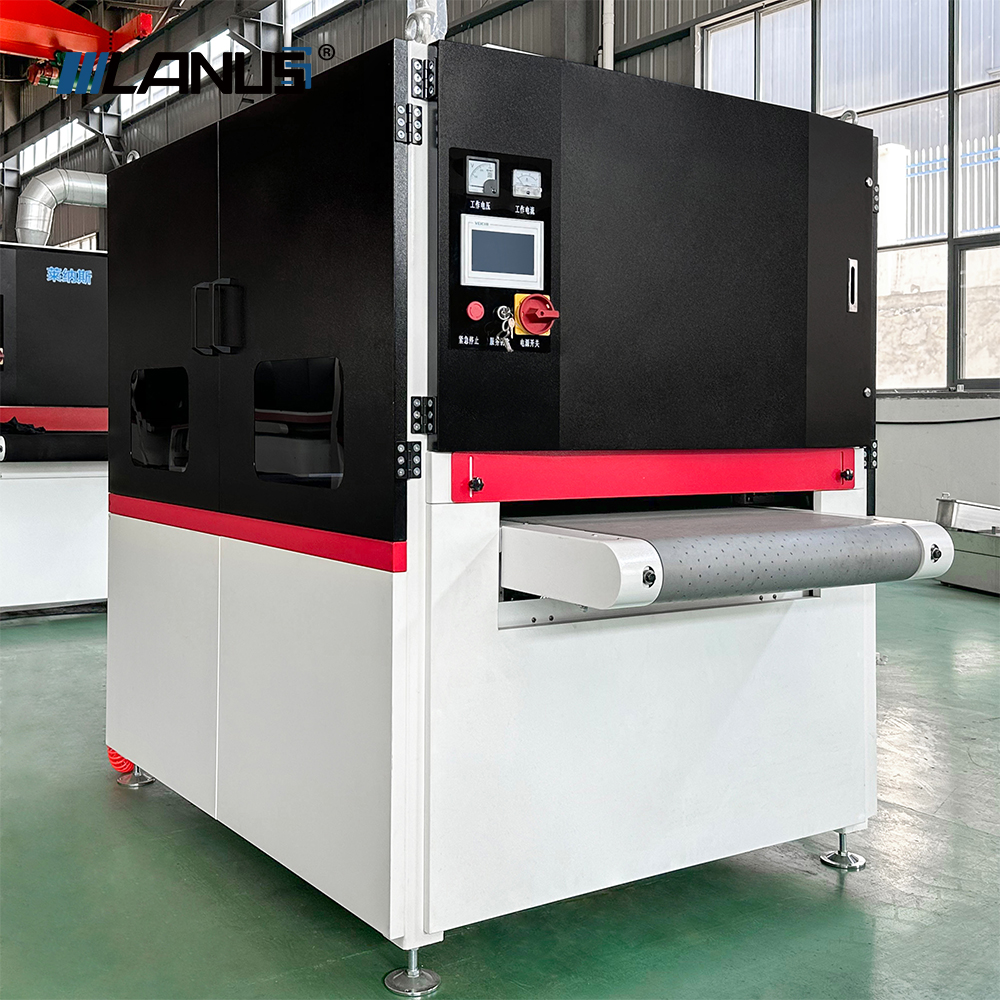

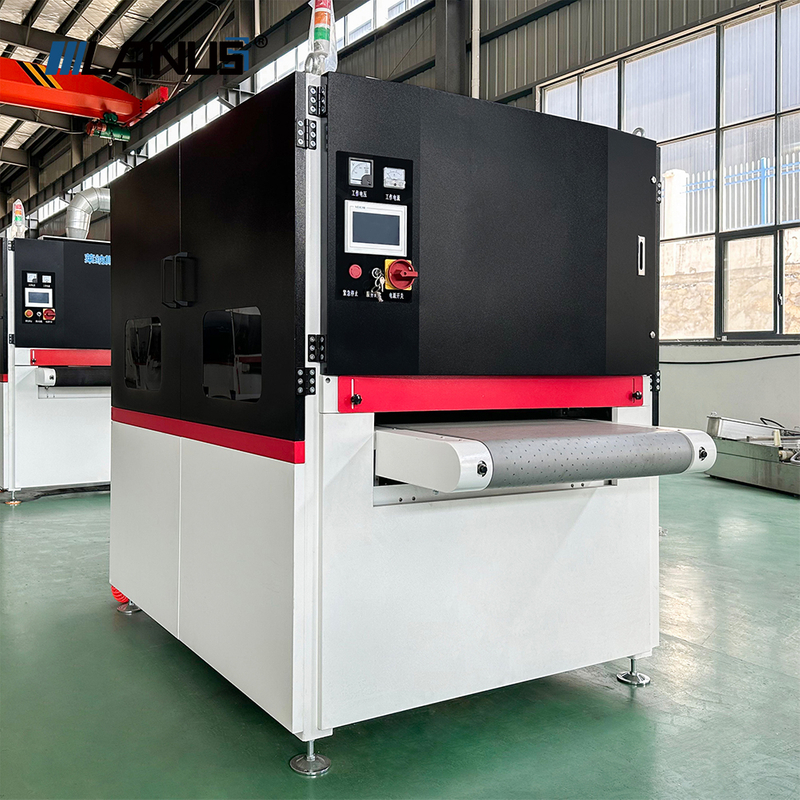

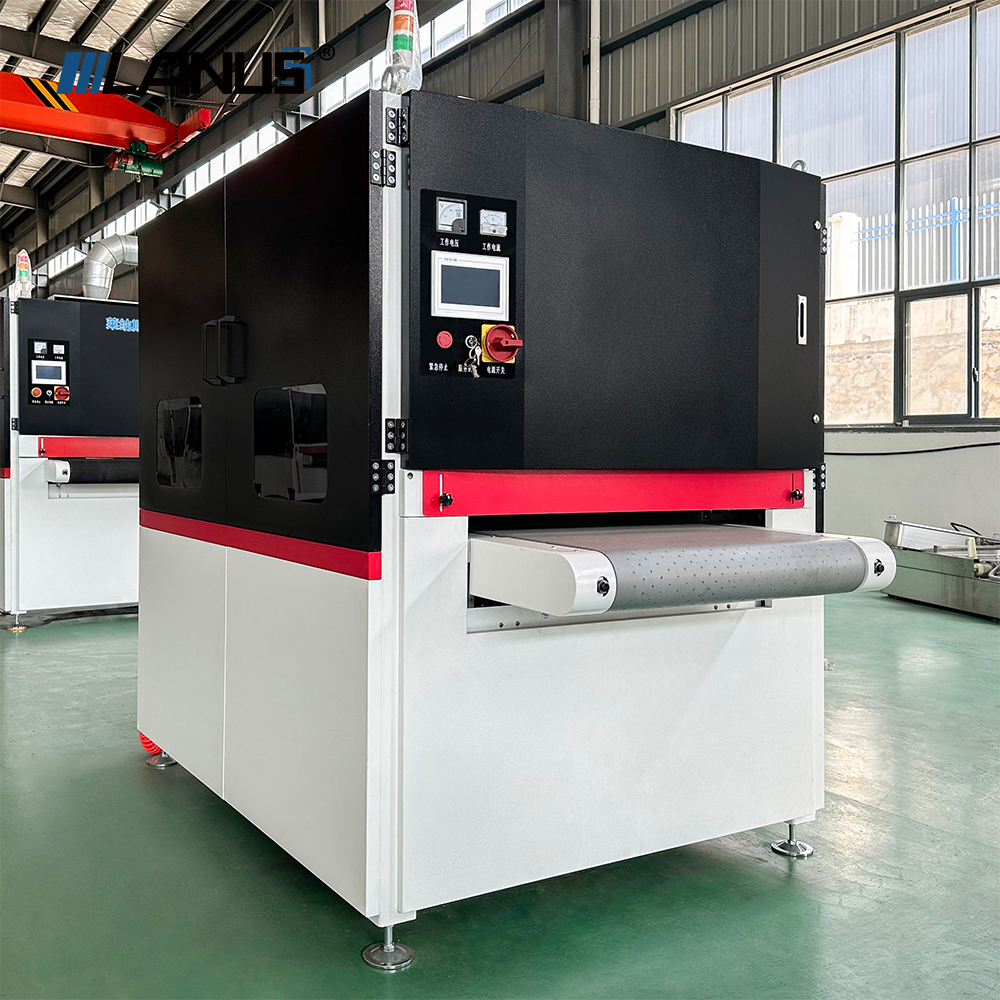

800mm Deburring Machine for Laser Oxide Removal And Sheet Metal Deburring

Product Name:

800mm Deburring Machine for Laser Oxide Removal and Sheet Metal Deburring

Product Description:

The 800mm Deburring Machine is a powerful and efficient solution for removing laser oxide layers and deburring sheet metal parts after laser cutting, punching, or stamping. It ensures smooth, oxide-free edges and consistent surface finishes, making parts ready for welding, powder coating, painting, or further assembly.

This machine combines abrasive belt heads and rotary brush technology to handle various materials such as carbon steel, stainless steel, aluminum, and non-ferrous metals. It efficiently removes laser oxide film from cut edges while simultaneously deburring and rounding inner and outer edges (up to R0.2mm), all in a single pass.

Key Features:

• Working Width: 800mm

• Processing Thickness: 0.5 – 80mm

• Minimum Part Size: 50mm × 50mm

• Edge Rounding Radius: Up to R0.2mm

• Laser Oxide Removal: Effective oxide film and heat-affected zone cleaning

• Deburring System: Abrasive belt + oscillating or rotary brush heads

• Materials Supported: Carbon steel, stainless steel, aluminum, copper

• Feed Speed: Adjustable (0.5 – 6 m/min)

• Brush Speed: Inverter-controlled (500 – 1400 rpm)

• Dust Collection: Dry or wet filtration system optional

• Control System: Touchscreen HMI with process presets

Applications:

• Laser oxide removal from cut edges

• Deburring of laser cut, punched, or sheared sheet metal

• Rounding edges for improved coating/welding adhesion

• Surface preparation for powder coating or painting

• Post-cutting edge safety enhancement

Benefits:

• Removes oxide layers quickly and uniformly

• Reduces manual grinding and improves consistency

• Prepares surfaces for optimal downstream processing

• Combines deburring, oxide removal, and finishing in one step

• Compact, energy-efficient, and easy to operate

1. Main Processing Scope

1. Applicable Materials:
   Carbon steel, stainless steel, aluminum plates, copper plates, and various non-ferrous metals.

2. Main Functions:
   The MSP-M800 is a dry-type deburring machine equipped with four sets of planetary universal abrasive roller brushes. It is specifically designed for removing burrs from part edges and holes, especially those caused by stamping, shearing, or laser cutting processes. It provides complete 360° deburring in a single pass and produces a uniform small-radius edge rounding effect (R angle). The deburring process is safe, reliable, and enhances the overall surface quality without damaging the workpiece.

2. Working Principle

The machine uses four groups of planetary universal abrasive roller brushes. Adjacent brushes rotate in opposite directions (self-rotation and planetary rotation), creating high-speed centrifugal grinding, scraping, cutting, and filing actions on part edges and inner holes.
This ensures full coverage deburring without blind spots, while preserving dimensional accuracy. The machine achieves uniform R angle edge rounding, with the radius adjustable by selecting different abrasive materials and brush configurations.

This through-feed machine is particularly effective for laser-cut or CNC-punched sheet metal parts with protective film. It removes burrs thoroughly without damaging the film or scratching the sheet. The specially designed soft abrasive filaments target only burrs, making the machine ideal for scratch-free deburring of delicate sheet metal parts, including irregularly shaped components.

3. Workpiece Fixation and Dust Collection

• The powerful vacuum table fixes parts securely during processing. Parts as small as 50mm × 50mm (without holes) can be processed directly without additional tooling. Special jigs can be provided for irregular parts.

• Conveyor feed is variable-frequency adjustable for speed control.

• The machine is equipped with a wet-type dust collector, using a top-mounted high-pressure blower to extract grinding dust into a sealed chamber. Water mist traps dust particles, and clean air is exhausted into the atmosphere.
  This system:

• Improves the working environment.

• Reduces safety hazards.

• Enables environmentally friendly recycling of metal powder.

4. Advantages of Using MSP-M800

1. Increased Productivity:
   Continuous feed-through processing meets high-volume production demands.

2. Superior Product Quality:
   Consistent and uniform surface finishing far exceeds manual results.

3. Lower Operational Costs:
   Much lower cost per unit area compared to manual deburring.

4. Safe and Eco-friendly:
   Effective dust collection ensures operator safety and a cleaner work environment.

5. Technical Specifications

6. Installation Requirements

1. Installation Space: At least 4m × 3.5m (flat and level).

2. Power Supply: 380V, 50Hz (±10%).

3. Compressed Air: Clean and dry compressed air required.
