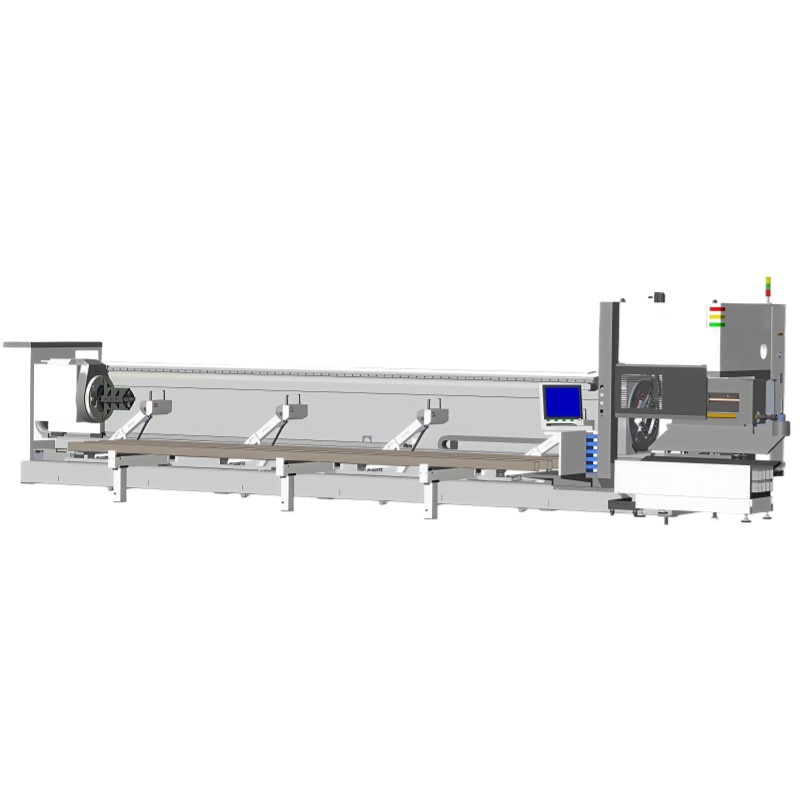

6000W Fiber Laser Tube Cutting Machine 2-Chuck for 250mm Tube Cutting

G25-7025B-6000W Fiber Laser Tube Cutting Machine:

Main Parameters and Application Range:

• Laser Power: 6000W

• Compatible Tube Types: Round tubes, square tubes, rectangular tubes, oval tubes, waist-shaped tubes, I-beams, channel steels, angle steels, and other special-shaped tubes.

• Tube Sizes:

• Round tube diameter: φ12~250mm

• Square tube: 12~175mm

• Rectangular tube: Maximum 200×120mm

• Industries of Application: Steel structures, aerospace, automotive manufacturing, garden machinery, agricultural machinery, fitness equipment, smart home products, electric vehicles/bicycles, escalator shelves, and other industries related to tube processing.

Key Components Configuration:

1. Fiber Laser: Chuangxin 6000W (Top-tier domestic brand)

2. Cutting Head: Osprey 6000W (Top-tier domestic brand)

3. Gear and Rack: YYC, Taiwan, M2-6 grade

4. Reducer: Shinbo, Japan, 110-090

5. Linear Guide: AIRTAC, Taiwan, CGH35

6. Motor: Yaskawa, High-performance motor, 4000rpm max bus type

7. Water Cooler: Hanli, Top-tier domestic brand

8. Electrical Components: Schneider, France

9. Pneumatic Components: AIRTAC, Taiwan

Mechanical Structure and Motion Control:

• Bed: Made from welded pipes, length of 8.5 meters, heat-treated for stress relief.

• Chuck: QL-250 pneumatic chuck with continuous air supply, max weight capacity of 220kg.

• Operating System: Shanghai BaiChu 5000 bus system

• Servo System: Imported AC servo motor and driver, stable, reliable, dynamic performance with strong load-bearing capacity.

• X/Y/Z/U Axis Precision: ±0.03mm, U-axis maximum rotation speed: 120RPM.

Cutting Speed and Material:

• Carbon Steel Cutting Speed:

• 1mm thickness: 8.0-12 m/min, with oxygen/air assist gas

• 10mm thickness: 2.0-2.6 m/min, using oxygen assist gas

• Stainless Steel 304 Cutting Speed:

• 1mm thickness: 35.0-60.0 m/min, with nitrogen/air

• 10mm thickness: 2.3-3.0 m/min, with nitrogen assist gas

• Aluminum Alloy Cutting Speed:

• 1mm thickness: 35.0-60.0 m/min, with nitrogen/air

• 10mm thickness: 1.5-2.3 m/min, with nitrogen assist gas

• Brass Cutting Speed:

• 1mm thickness: 30.0-60.0 m/min, with nitrogen

• 10mm thickness: 1.0-1.6 m/min, with nitrogen assist gas

• Copper Cutting Speed:

• 1mm thickness: 30.0-60.0 m/min, with oxygen

• 10mm thickness: 0.7-1.2 m/min, using oxygen assist gas

Electrical and Gas Requirements:

• Electrical Requirements:

• Voltage: 380V±2%, Three-phase five-wire, power not less than 60KVA.

• Single cable diameter should be at least 16 square millimeters.

• Power must be properly grounded (≤3Ω).

• Provide 3 circuit breaker interfaces for connection to the laser cutter.

• Cooling Water Requirements:

• Type: Distilled/deionized water, 40L with conductivity lower than 10us.

• Gas Requirements:

• Oxygen: Purity ≥99.6%, Pressure: 1MPa, Flow rate: ≥1m³/min, used for cutting carbon steel and various iron plates.

• Nitrogen: Purity ≥99.99%, Pressure: 2.5MPa, Flow rate: ≥2.5m³/min, used for cutting stainless steel, galvanized sheets, etc.

• Compressed Air: Pressure ≥1.3MPa, Flow rate ≥1.8m³/min, Requires self-provided compressor, dryer, and four-stage filter.

Installation Environment:

• Temperature Range: 5~30°C

• Humidity: Less than 70%

• Foundation Requirements:

• The area must be level, with no strong vibrations.

• If there is strong vibration, anti-vibration grooves should be added.

• The foundation must ensure strength and no settlement.

• Installation should follow the provided foundation diagram.

Remarks:

• The equipment should be placed in an environment with good ventilation, no dust, no corrosion, and no water leakage.

• Avoid interference from electromagnetic waves, such as from arc welding machines or EDM machines, to ensure normal operation.
