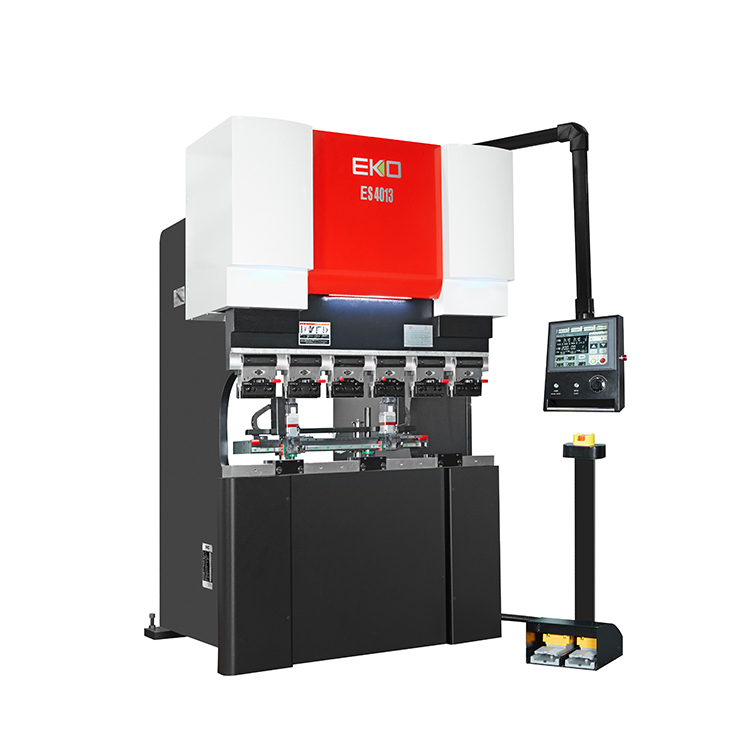

ES4013 CNC Full Servo Press Brake 40 ton 1300mm Electric Bending Press Brake Machine for Sheet Metal Bend
| Model | ES4013 |
| Length（mm） | 1600 |
| Width（mm） | 1400 |
| Height（mm） | 2550 |
| Opening height（mm） | 420 |
| Height in operation（mm） | 300 |
| Throat depth（mm） | 410 |
| Frame distance（mm） | 960 |
| Lower worktable height（mm） | 970 |
| Capacity (T) | 40 |
| Bending length（mm） | 1300 |
| Stroke（mm） | 150 |
| Back gauge stroke（mm） | 500 |
| Total power (KW) | 15.2 |
| Total weight (T) | 3.7 |
| Number of axis | 6 |
| Accuracy of axis D1 | ±0.005 |
| Accuracy of axis D2 | ±0.005 |
| Accuracy of axis L | ±0.01 |
| Accuracy of axis Z | ±0.1 |
| Accuracy of axis Y1 | ±0.1 |
| Accuracy of axis Y2 | ±0.1 |
| Approach speed of axis D1/D2 | 150mm/s |
| Bending speed of axis D1/D2 | 0.2-50mm/s |
| Return speed of axis D1/D2 | 150mm/s |
| Moving speed of axis L | 500mm/s |
| Moving speed of axis Z | 125mm/s |
| Moving speed of axis Y1 | 700mm/s |
| Moving speed of axis Y2 | 700mm/s |
The bending machine is divided into manual bending machine, hydraulic bending machine and numerical control bending machine. The manual bending machine is divided into mechanical manual bending machine and electric manual bending machine. The hydraulic bending machine can be divided into torsion shaft synchronization, mechanical hydraulic synchronization and electrohydraulic synchronization according to the synchronization mode. The hydraulic bending machine can be divided into upper and lower motion types according to the motion mode.
The bending machine is to use the equipped mold (general or special mold) to bend the metal plate in the cold state into workpieces of various geometric cross-section shapes. The bending machine generally uses the special CNC system for the bending machine. The coordinate axis of the bending machine has developed from a single axis to 12 axes. The CNC system can automatically realize the control of the sliding block's running depth, the adjustment of the sliding block's left and right tilt, the front and back adjustment of the rear stopper, the left and right adjustment Pressure tonnage adjustment and slider approaching working speed adjustment, etc. The bending machine can conveniently realize the sliding block downward, inching, continuous, pressure maintaining, return, midway stop and other actions, and complete the multi elbow bending at the same angle or different angles with one feeding.
Q1. What is average life of machine
A1:Under normal use, the lifespan is 10-15 years.
Q2. What are drawback compare to hydraulic servo macjine?
A2:I don't quite understand the second question, is it comparing servo with traditional hydraulic? If so, The biggest disadvantage of our servo compared to hydraulic is expensive. But you get what you pay for.
Q3. What are benefit compare to hydraulic servo?
A3.Compared to hydraulic, the benefit of EKO press brake is high accuracy, high efficiency, Stable and environmental friendly.

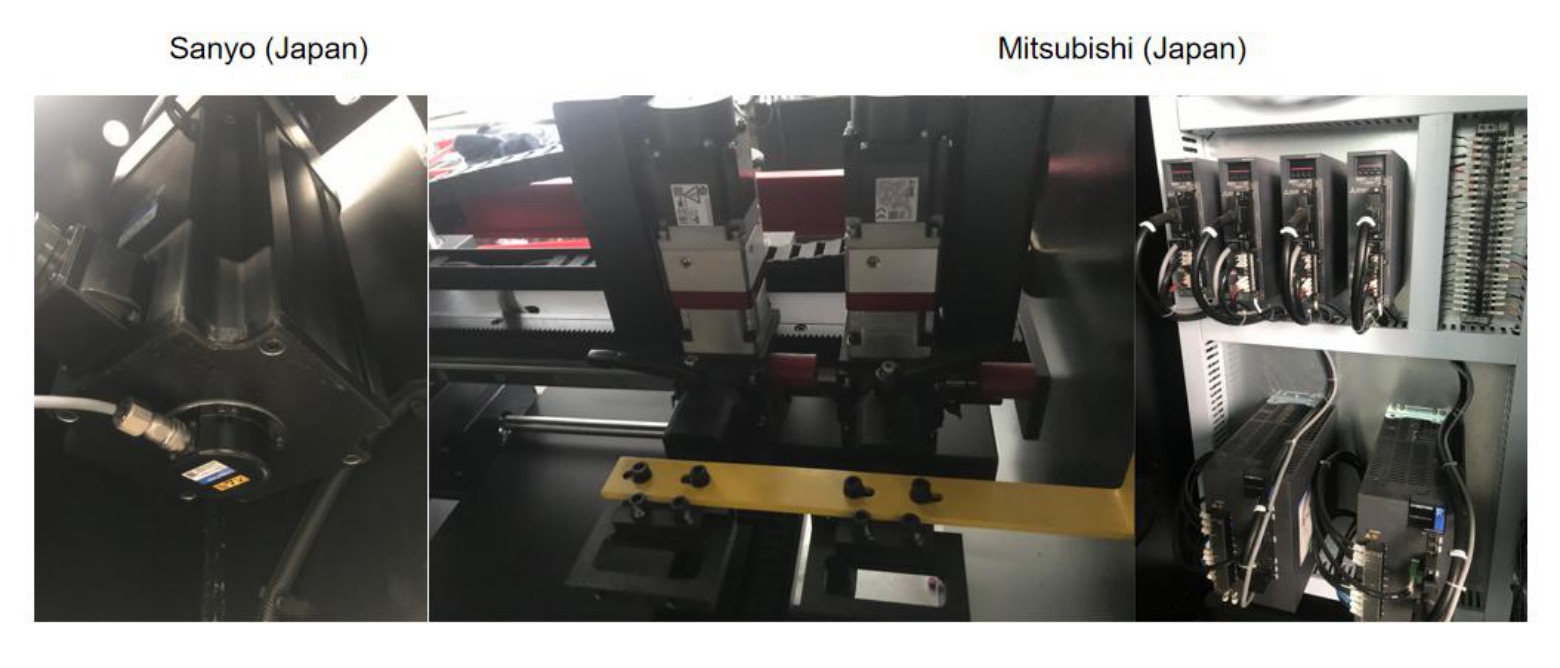

(1)We imported servo motors(SANYO, from Japan) making the eqiupment precise,stable and durable;

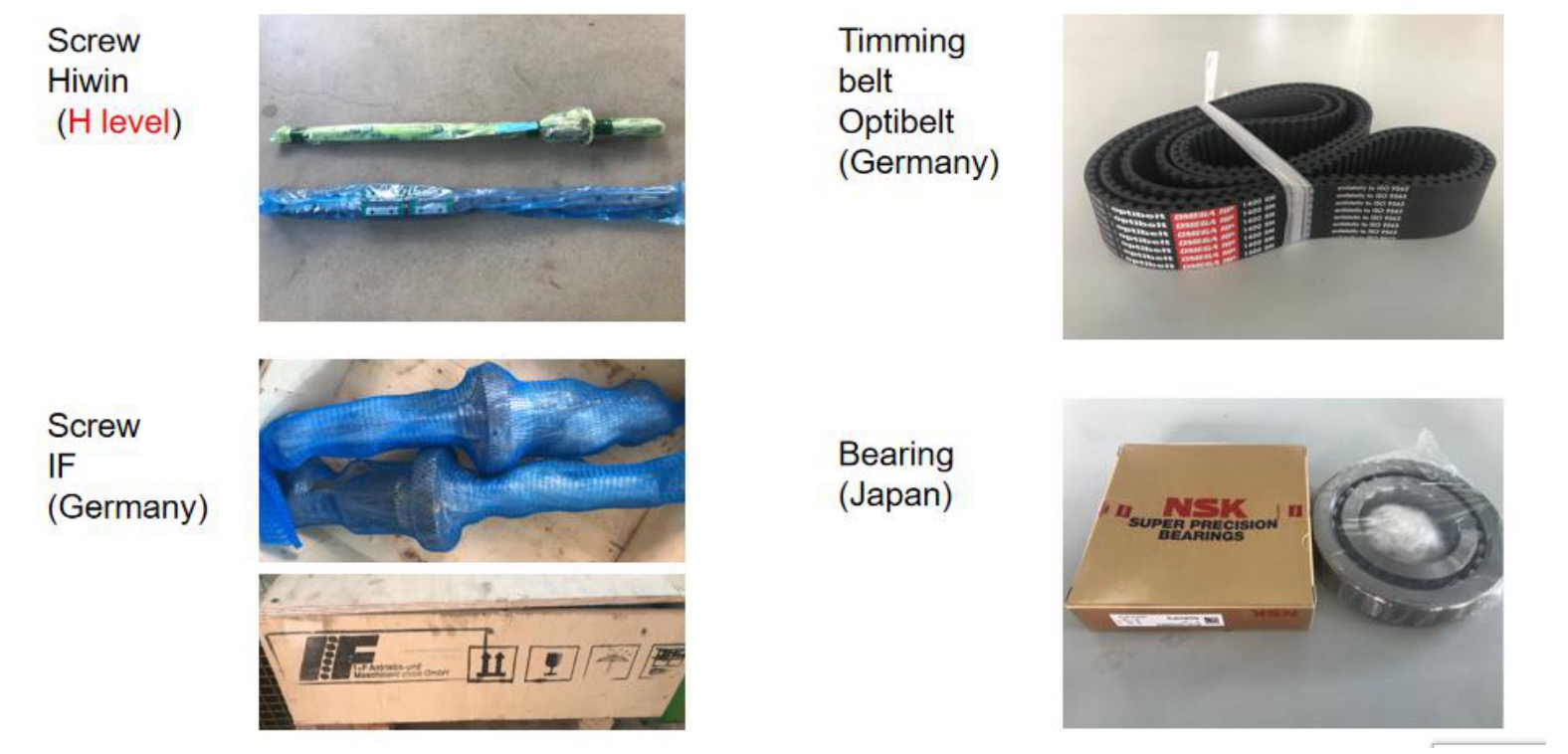

(2)The lead screws and guide rails are imported C5grade products with high accuracy, excellent performance and log service life;
(3)Environmental friendly does not use hydraulic oil that is a pollution source difficult to be disposed. After the traditional hydraulic pressure is used for a long time, the temperature of the sealing ring is too high, the accuracy will be inaccurate, and oil leakage will occur, resulting in a dirty floor. We have seen it at the customer site.
Q4. What major problem can be faced?

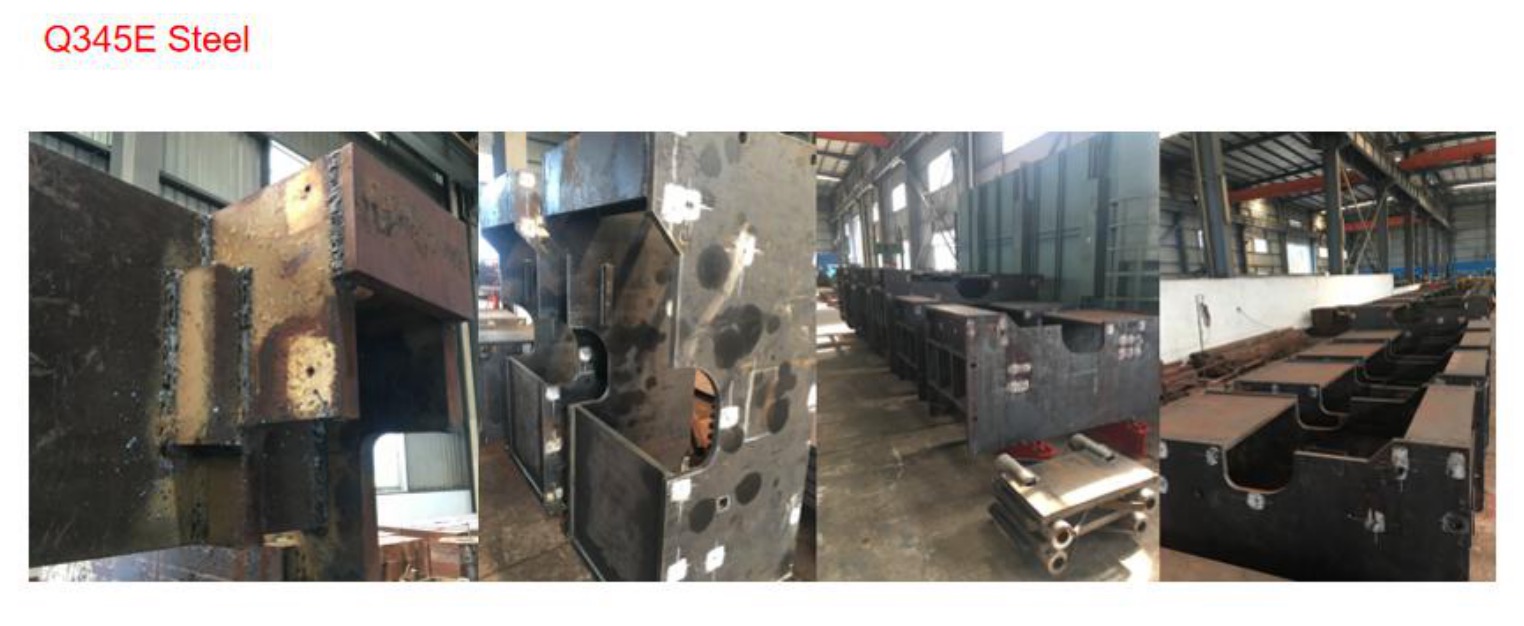

A4.EKO‘s frame is better than all other competitors. We use Q345E steel, which has a high carbon content. This steel ensures the strength and stability of our machine. And the heat treatment of our equipment is the best in China. We use two sets of quenching and tempering heat treatment. The maximum temperature is 1200 degrees, 48 hours. The above two points are the reasons why it is difficult for other companies to do well in servo press brakes. That's why our machines are stable and durable.
Q5. Any safety, if insert thick metal for bend?
A5.We have not encountered any problems. The problem that has occurred is that the customer operating system is not adjusted properly, and the operation is improper. Many programs can be set in the system. Our equipment has no wearing parts. We have showroom or office in Dongguan city, Fujian, Chengdu, Wuhan, Shanghai, Suzhou, Hangzhou, Beijing, Tianjin and Shandong. How could you imagine that we just need 4 after-service man?
Q6. If machine down, can recover quickly?
A6.It depends on the problem. If the problem is small, it is a piece of cake. The specific situation will be analyzed in detail.
