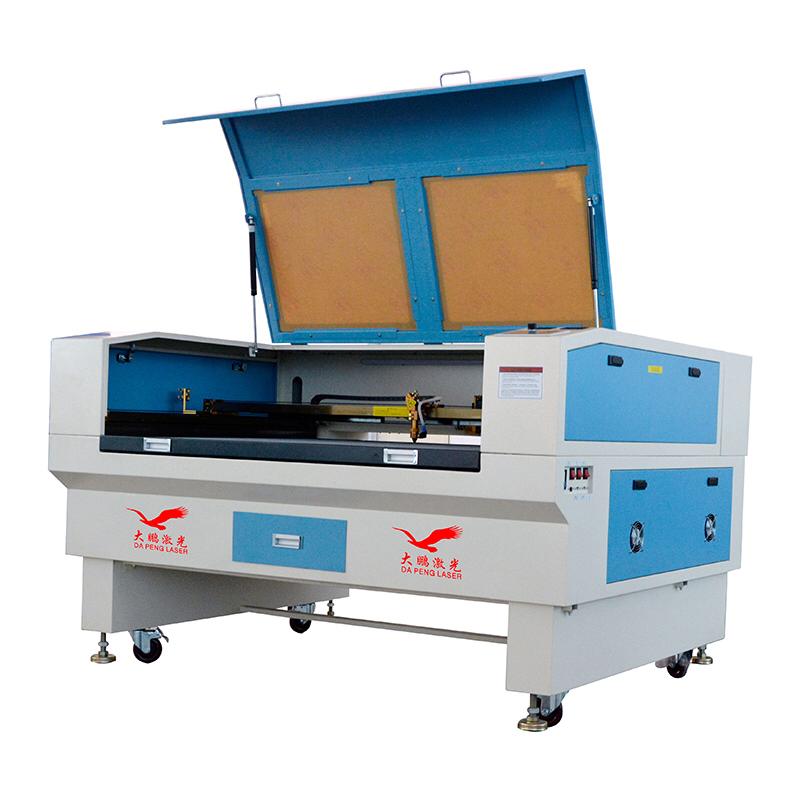

1400*1000mm 130w co2 laser engraving cutting machine for wood/bottle keyboard/ glass bottle fabric

​CO2 laser cutting machine laser carving cutting machine 6090 acrylic wood medium density fiberboard leather carving machine
Availability:
Quantity:
  • 1410

  • DP

CO2 laser cutting machine laser carving cutting machine 6090 acrylic wood medium density fiberboard leather carving machine


application area

CO2 laser cutting machine is suitable for non-metallic materials such as leather, fabric, epoxy resin, wood products, paper, acrylic, wool, plastic, rubber, bamboo products, etc.

Working width (mm): 600 × 900/1000 × 800/1200 × 600/1300 × 900/1600 × one thousand

Boundary dimension (mm): 1530 × one thousand and seventy × 1070/1825 × one thousand five hundred and eighty × 1200/1910 × one thousand three hundred and eighty × 1100/1910 × one thousand seven hundred and ten × 1370/2240 × one thousand seven hundred and eighty × one thousand two hundred and ninety

Total weight (kg): 260/430/430/525/605

Wood Acrylic Plywood PVC Glass CO2 Laser Cutting Machine 80W 100W 1300W 150W Laser Tube CNC Laser Cutter Machine


WORKING AREA- 1400*1000
TUBE POWER - T-4
RF- 130 WATT - HY
MOTOR AND DRIVE- UVW THREE PHASE (LEADSHINE/ YAKO)
BLOWER - 750 W
COMPRESSOR- 380W HEALIA (TWO HEAD MACHINE NEED 2 PCS )
MIRROR- 30*3 SILVER COATED
LENS - 50.8 FL (BEST QUALITY USA COATED)
AIR PIPE LINE - 8 MM IN EACH MACHINE
WATER SENSOR- YES
PULLY - BRASS MATERIAL
BELT- 18 MM
CONTROLLER - RDC
BLOWER PIPE - GOOD QUALITY FABRIC MATERIAL
BED / WORKINT TABLE- HONEY COMB (SEPRATE FRAME )+KNIFE BLADE (EACH GAP 10 MM)  SEPRATE FRAME
SENSOR- OMRON JAPAN
POWER SUPPLY - OMRON / MEANWELL
CHILLER- S&A (AS PER HEAD) 5200 SINGLE/ DUAL HEAD
C UPLLER- 4 PCS IN EACH MACHINE

Specification
Product Paramenters
Model
Working Size
Dimension
Weight
Z Axis Stroke
0604
600*400mm
1360*920*1070mm
200kg
optional
0906
900*600mm
1450*1100*1070mm
320kg
optional
1309
1300*900mm
1960*1730*1120mm
400kg
optional
1325
1300*2500mm
3530*2180*1270mm
850kg
optional
1610
1600*1000mm
2160*1700*1100mm
560kg
optional
Series
CO2 Cutting&engraving Machine
Laser Power
60w/80w/100w/130w/150w/180w/200w
Engraving Speed
0-1000mm/s
Min Engraving Size
English Letter:1.0mm*1.0mm
Highest Scanning Precision
4000DPI
Cutting Speed
0-1000mm/s
Cutting Thickness
0-30mm
Positioning Accuracy
≤0.1mm
File Format
DST/DXF/AI/PLT/BMP/CDR,etc
Cooling Way
Water Cooling
Drive System
Leadshine Stepper Motor+Stepper Driver
Machine Structure
Covered and protected
Power Supply
110V/220V,50HZ/60HZ
Working Environment
Temperature:0-45,Humidity 5-95%
Sample
Materials
Engrave
Cut
Materials
Engrave
Cut
Wood
Wood Veneer
Acrylic
Fiberglass

Cloth
Plastic
Leather
Cork
Paper
Corian
Delrin
Marble
Mat Board
Anodized Aluminum
/
Melamine
Painted Metals
/
Mylar
Tile
/
Pressboard
Glass
/
Rubber
Coated Metals
/
Twill
Ceramics
/
Power
60W
80W
100W
130W
150W
wood
5.5mm
8.5mm
10.5mm
11.5mm
13.5mm
plywood
4.5mm
8.5mm
10.5mm
11.5mm
13.5mm
leather
2.5mm
3.5mm
4.5mm
5.5mm
6.5mm
acrylic
9mm
13mm
17mm
20mm
23mm
pvc
2.5mm
3.5mm
4.5mm
5.5mm
6.5mm
pleixglass
3.5mm
7.5mm
9.5mm
11.5mm
14.5mm
plastic
1.5mm
2.5mm
3.5mm
4.5mm
5.5mm
rubber
1.5mm
2.5mm
3.5mm
4.5mm
5.5mm
fabric
1.5mm
2.5mm
3.5mm
4.5mm
6.5mm
bamboo
1.5mm
2.5mm
3.5mm
4.5mm
5.5mm
paper
0.5-5mm
0.5-5mm
0.5-5mm
0.5-5mm
0.5-5mm
Features:
Product Description
This co2 engraving and cutting series products adopt imported proprietary sliding guide,and equip with auxiliary facilities,such as blower, exhaust fan, infrared, foot pedal and other auxiliary facilities.Also,this series products integrate advanced high-speed continuous curve motion control card, and adopt self-developed high-speed laser engraving & cutting controlling software.

Application Industries
Laser Engraving cutting machine has been widely used in the fields of plexiglass, architectural models, rubber plates, bamboo products.For cutting and carving on plexiglass products, acrylic art & crafts panel, lenses, wood &cutting carving, advertising materials, crystal characters, easel, packing boxes, models, toys and furnitures etc.

Advantage
1. We use ball screw rod to make the up and down table, which ensure its long-term using and precision. While other company may
have less precision, and will be noise after a period using.
2. We use American IIV company's reflect mirror and focus lens, which prolong the lifetime of the spare parts.
3. For laser tube, we use the Chinese top brand laser tube, have very stable performance, lifetime can reach 3000 hours. Also, we
have another brand laser tube with 10000 hours lifetime if you require, we can use it in our order.
4. For water chiller, we use both CW5000 for single head, and CW5200 for double head laser machine.
5. All the machine are use red pointer and auto focus system.
6. All the machine have LCD offline control system + USB port.
7. The bearing we use Japan import brand, which ensure the long time performance and accuracy.
8. the transforming belt adopt the famous FULONG brand, it have the metal in the material, so it is fasten and not easy to loosen.
9. All the power supply and laser device are will be running for at least 48 hours testing to ensure it's good performance.
Cutting Samples: Wood,paper, leather, cloth, organic glass, resin,acrylic,woolens, plastic, rubber, ceramic tile, crystal, bowler, bamboo.
Applicable Industry: 1.  Engraving beautiful patterns and words such as wood, bamboo.  Ivory, bone, leather, marble, shell. 2.  Mainly used in large plastic character cutting, color plate engraving and cutting, sign engraving, crystal engraving, trophy engraving, authorization engraving etc. 3. Leather clothing processing industry: can engraving and cutting complex patterns on genuine synthetic  leather, woolens, clothing ,furnishing, glove, handbag ,model and Aircraft Model, etc.
