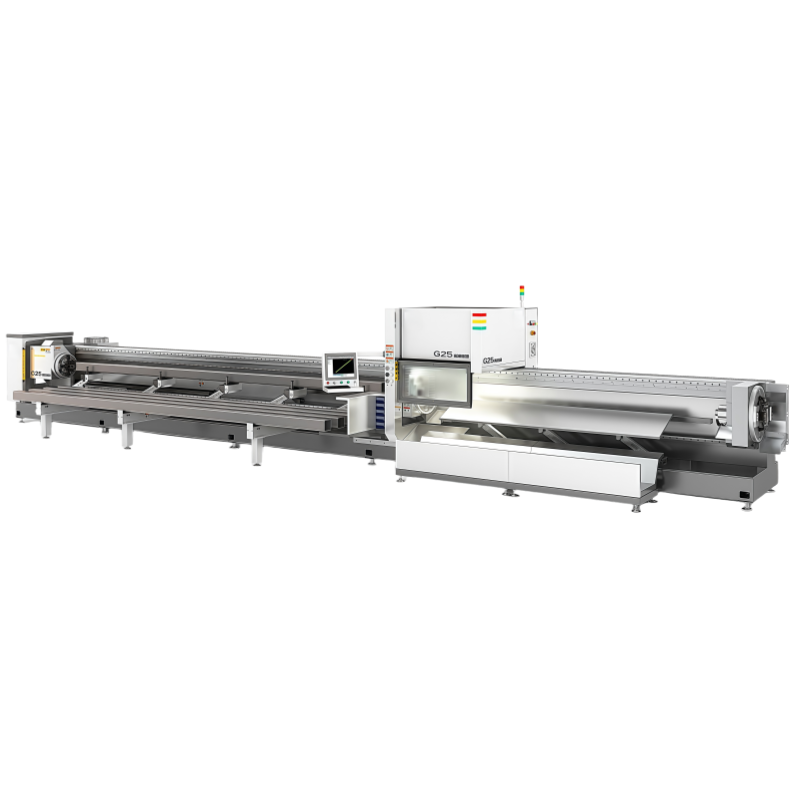

6000W Laser Tube Cutting Machine with Three-Chuck System (7 meters, 250mm chuck)

Material Types Supported:

• Round Pipes

• Square Pipes

• Rectangular Pipes

• Oval Pipes

• Waist-shaped Pipes

• I-beams, Channel Steel, Angle Steel

• Special-shaped Pipes

Cutting Range:

• Round Pipe: Φ12-Φ250mm (Chuck inner diameter: Φ252mm)

• Square Pipe: 12-175mm

• Rectangular Pipe: Max 200x120mm

Applicable Industries:

• Steel Structures

• Aerospace

• Automotive Manufacturing

• Garden Machinery

• Agricultural Machinery

• Fitness Equipment

• Smart Home Products

• Electric Vehicles / Bicycles Manufacturing

• Escalator and Shelf Manufacturing

• And other tube processing related industries

Feed Length:

• Standard parameters based on this model; customizable based on client requirements.

Automation Level:

• Standard Configuration: Semi-automatic loading system

• Optional Upgrade: Modular full automatic loading equipment

Key Component Configuration:

Component Technical Parameters:

• Laser Output Power: 6000W

• Working Mode: Fiber continuous mode

• Fiber Diameter: 50-100μm

• Cooling Mode: Water-cooled

• Cutting Materials: Carbon steel, stainless steel, aluminum, copper, brass

• Chuck Model: QL250 (Pneumatic, max load 260kg)

• Cutting Head Focus Distance: 150mm

• Focus Adjustment Speed: 50mm/S (Manual adjustment)

Overall Machine Technical Parameters:

• Device Series: Medium platform, 250 series

• Dimensions (mm): L14000 x W3200 x H2800

• Weight: 9.5 tons

• Full Power Consumption (KW): 35-45KW

• Operating Temperature (°C): 0-40°C

• Cutting Range:

• Round Pipe: Φ12-Φ248mm

• Square Pipe: 12-175mm

• Rectangular Pipe: Max 200x120mm

• Cutting Width: 0.1-0.2mm

• Accuracy:

• X/Y Axis Positioning Accuracy: ±0.03mm (per 1000mm)

• X/Y Axis Repositioning Accuracy: ±0.03mm

• Rotary U Axis Accuracy: ≤5 arc minutes

• Max U Axis Rotation Speed: 120 RPM

• Speed & Acceleration:

• Max X/Y Axis Acceleration: 1.2G

• Max X Axis Speed: 100m/min

• Max Y Axis Speed: 120m/min

• Loading Capacity:

• Manual Loading: Max 260kg per tube

• Automatic Loading: Max 200kg per tube

• Discharge Length: Max 4.0m (up to 6.0m optional)

Key Features:

1. Bed Design: The bed is welded from pipe materials and treated with high-temperature annealing for stress relief, ensuring high rigidity and stability for precision.

2. Crossbeam & Axis Systems: The X-axis and Z-axis are equipped with precision guides for smooth motion and high accuracy, ensuring the stability of the cutting head.

3. CNC Control System: The system is based on Windows, with high-speed interpolation for faster cutting and more reliable operation. The system supports automatic and manual part sorting, special cutting paths, and real-time correction during cutting.

4. Automatic Functions:

• Auto Sorting: Automatic and manual sorting options for optimized processing.

• Automatic Corner Following: Efficient cutting with improved speed and stable quality.

• Height Adjustment & Piercing: Supports segmental and progressive piercing for different materials and thicknesses.

Utility Requirements:

• Power Supply: 380V ±5%, 50Hz three-phase system

• Stabilizer: Recommended for voltage fluctuations above 5%

• Power Consumption: 60KVA (minimum for stable operation)

• Grounding: Required grounding ≤ 3Ω

• Cooling Water: Distilled or deionized water (40L, conductivity <10us)

• Gas:

• Oxygen: Purity ≥99.6%, Pressure: 1MPa, Flow: ≥1m³/min

• Nitrogen: Purity ≥99.99%, Pressure: 2.5MPa, Flow: ≥2.5m³/min

• Air: Pressure ≥1.3MPa, Flow: ≥1.8m³/min

Installation Environment:

• Temperature: 5~30°C

• Humidity: <70%

• Site Requirements:

• Flat surface, no strong vibrations

• Adequate space for equipment setup

• Proper ventilation and minimal dust or corrosion

• Ground preparation according to installation guidelines to ensure stability
