G36-12036C-6000W

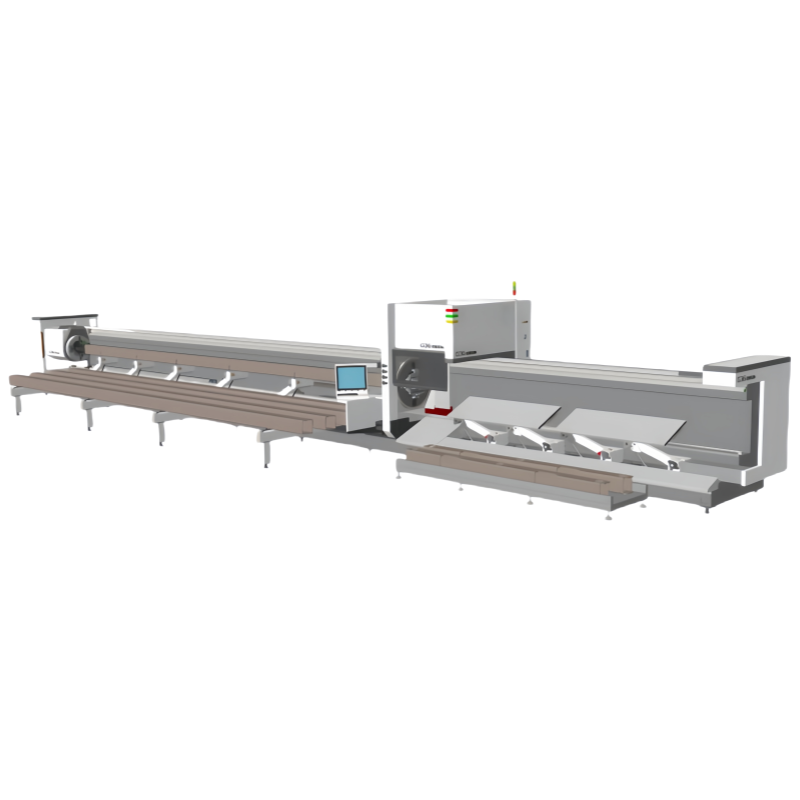

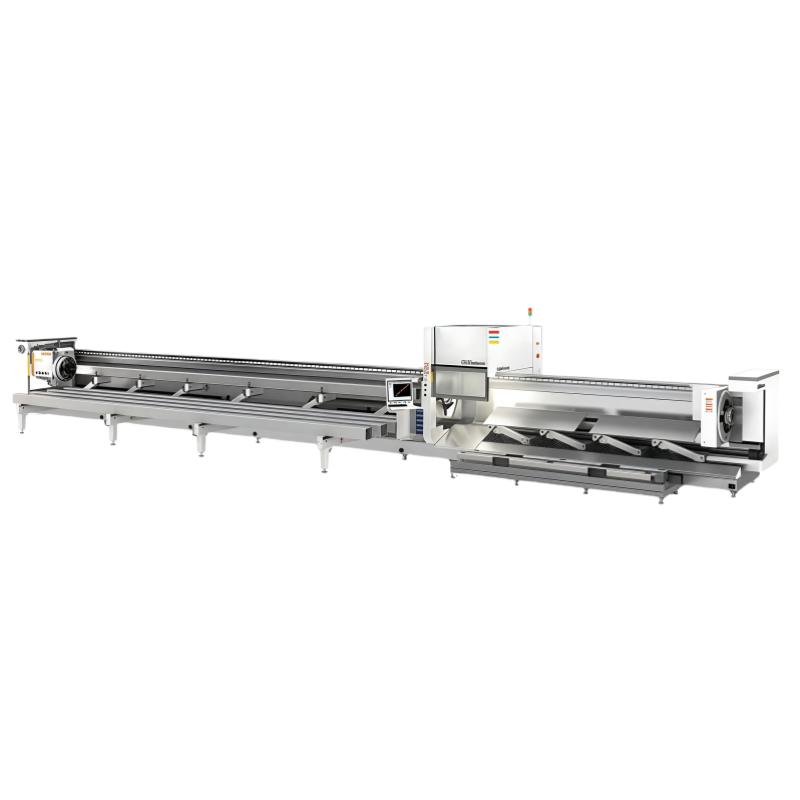

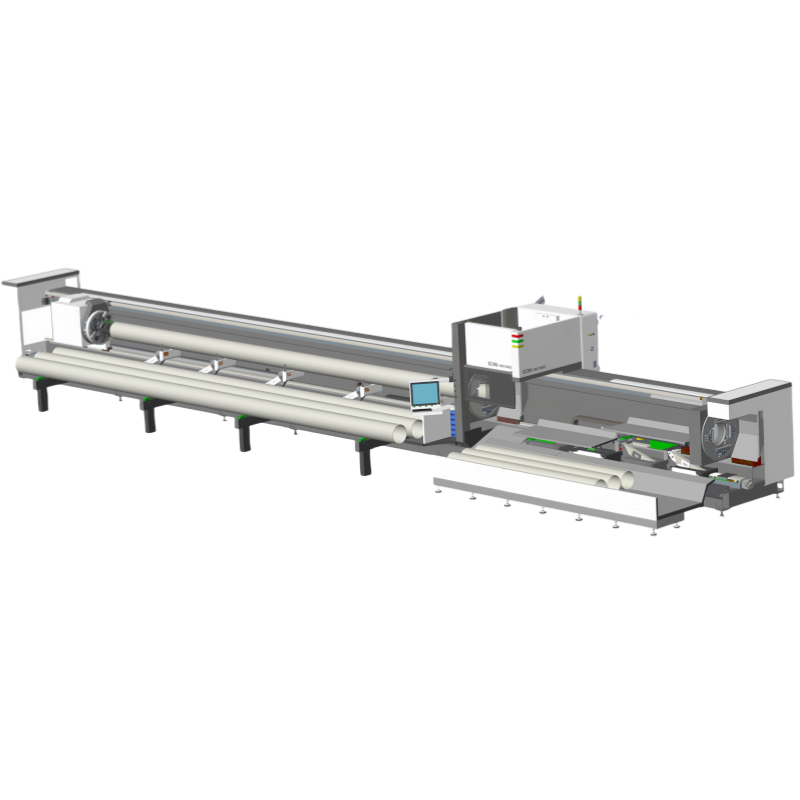

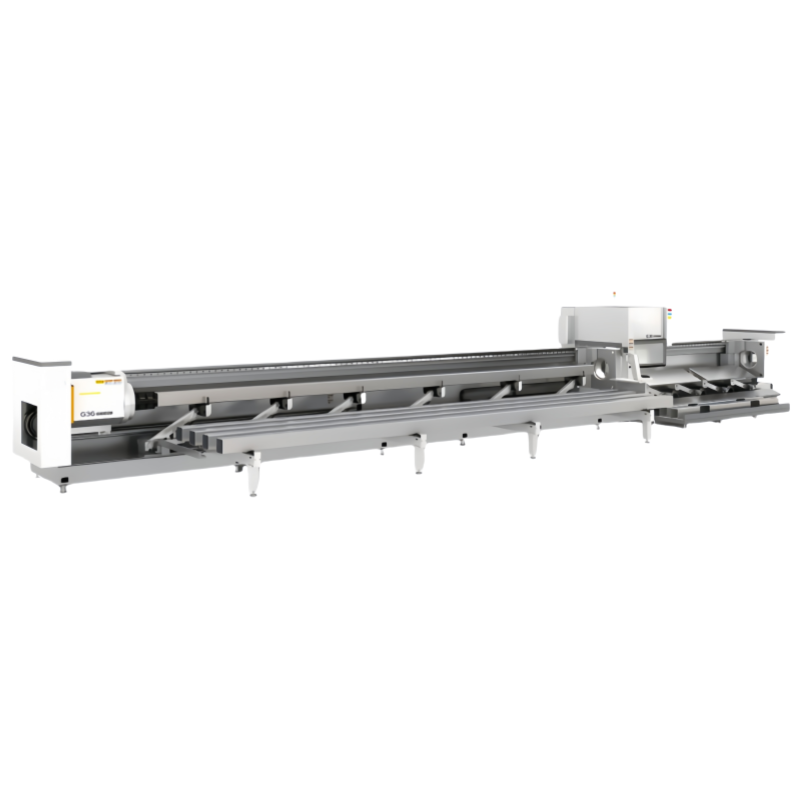

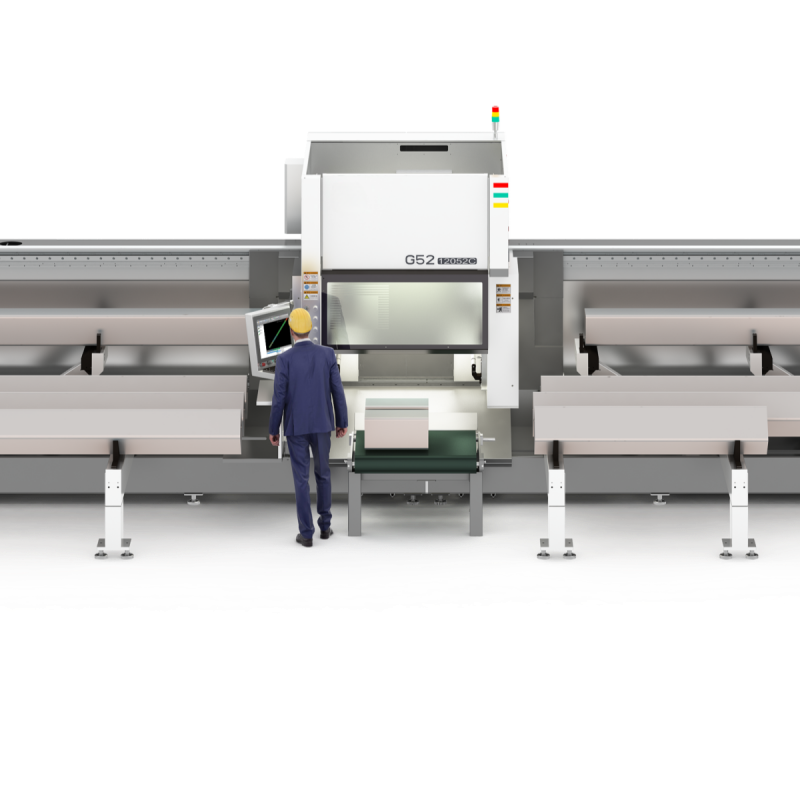

G36-12036C Fiber Laser Tube Cutting Machine
Model: G36-12036C (Side-Mounted, Three-Chuck Standard Type)
Name: Fiber Laser Tube Cutting Machine
Platform Type: Large Platform
Length: 12 meters
Chuck System: 360 Three-Chuck
Compatible Tube Types:
Round Tubes
Square Tubes
Rectangular Tubes
Oval Tubes
Waist-Shaped Tubes
I-Beams
Channel Steels
Angle Steels
Special-Shaped Tubes
Tube Size Range:
Round: φ20~360mm
Square: 20~250mm
Rectangular: Max 300x200mm
Industries:
Steel Structure
Aerospace
Automotive Manufacturing
Landscaping Machinery
Agricultural Equipment
Fitness Equipment
Smart Home Furniture
Electric Vehicle/Bicycle
Escalator and Rack Manufacturing
Feeding Length:
Based on standard specs; customizable per customer needs
Automation Level:
Standard: Semi-Automatic Loader
Optional: Full-Automation Module Available
| No. | Component | Brand/Origin | Model/Details |
|---|---|---|---|
| 1 | Fiber Laser Source | MAX/RECI | 6000W / Domestic Tier 1 |
| 2 | Cutting Head | OSPRI | 6000W / Domestic Tier 1 |
| 3 | Rack and Pinion | YYC (Taiwan) | - |
| 4 | Reducer | MOTOREDUCER (France) | - |
| 5 | Linear Guide Rail | HIWIN (Taiwan) | - |
| 6 | Motors | Inovance/Yaskawa | Up to 4000rpm, Bus Type Drive |
| 7 | Oil Circuit | Boteng (China) | - |
| 8 | Cable Drag Chain | Langu (China) | - |
| 9 | Water Chiller | Hanli (China) | 6000W |
| 10 | Electrical Components | Schneider (France) | - |
| 11 | Pneumatic Components | AIRTAC (Taiwan) | - |
| 12 | Main Bed Frame | In-house Developed | 24m Total Length |
| 13 | Chucks | In-house Developed | GL360 Three-Chuck |
| 14 | Loading Support Rack | In-house Developed | 9 Support Points / 700kg Load |
| 15 | Loading System | Semi-Automatic | 1200kg / 5 Tubes Continuous Feed |
| 16 | Unloading System | Servo Floating | Max Length: 12m / 60kg per meter |
| 17 | CNC Control System | Bochu (Shanghai) | Bus Type / 3D Tube Cutting |
| 18 | Nesting Software | Bochu (Shanghai) | For 3D Pipe Cutting |
| 19 | Operating Side | Left-Handed | Standard |
| 20 | Packaging | Standard Export | - |
Laser Source:
Power: 6000W
Mode: Continuous
Fiber Diameter: 50-100μm
Cooling: Water-Cooled
Materials: Carbon Steel, Stainless Steel, Aluminum Alloy, Brass, Copper
Machine Frame:
Type: Welded Pipe Structure
Dimensions: Main Bed 16m, Auxiliary 8m, Total 24m

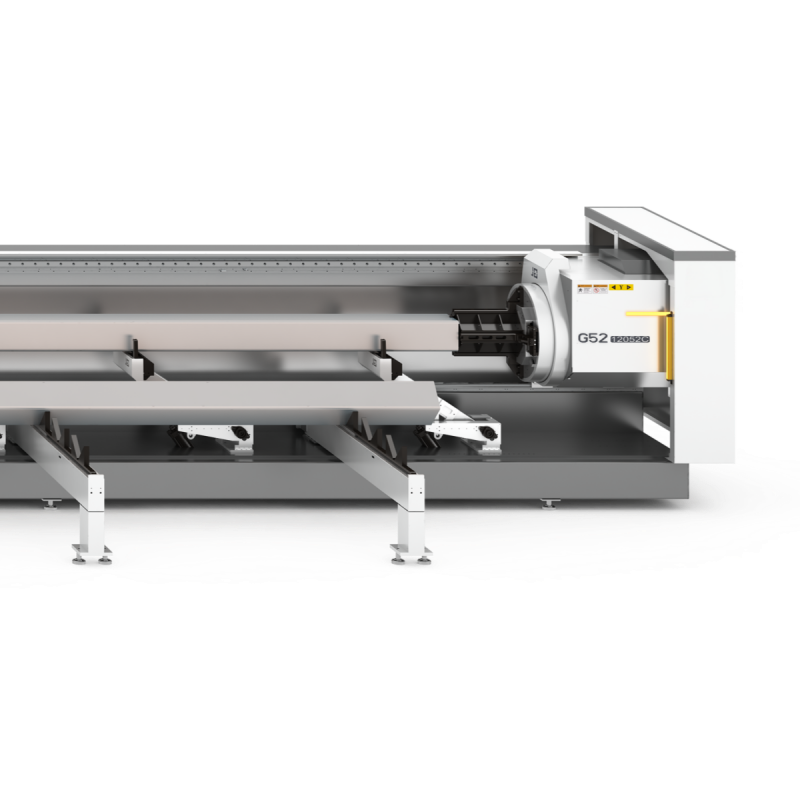

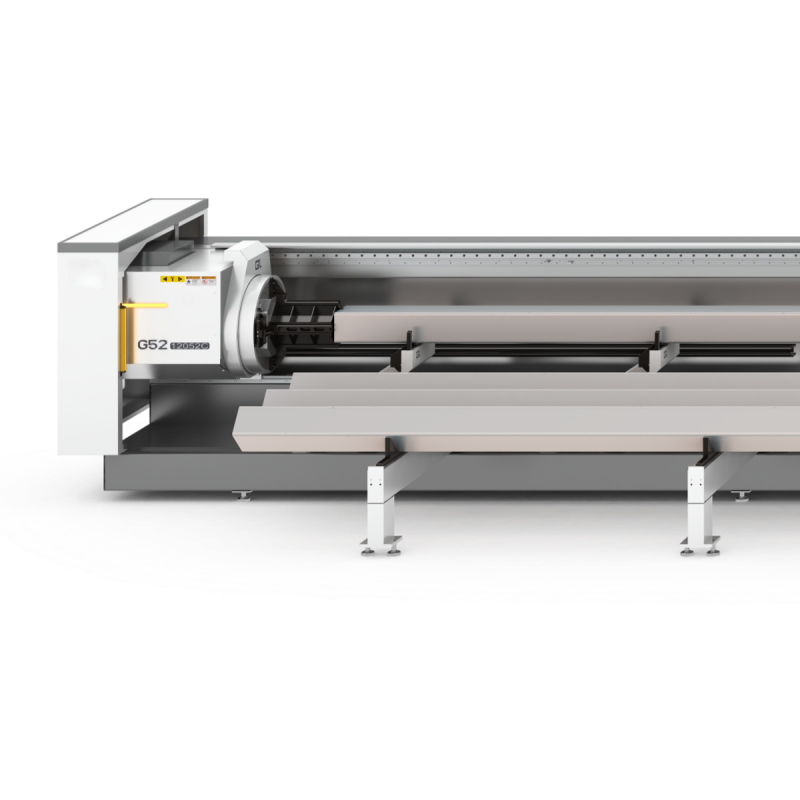

Chuck System:
Model: GL360
Mode: Pneumatic
Load Capacity: 700kg
Cutting Head:
Focal Length: 150mm
Collimation Length: 100mm
Focusing Speed: 100mm/s
Assist Gas Pressure: ≤3MPa
Water Chiller:
Medium: Distilled/Deionized Water
Temp Settings: 30°C / 20°C (Adjustable)
Accuracy: ±0.1°C
Flow Rate: 10L/min
Lift: 20m
Machine Dimensions & Power:
Size (LxWxH): 24000 x 3600 x 2700mm
Weight: 18~18.5 Tons
Power: 75~80kW
Operating Temp: 0~40°C
Processing Range:
Round Tube: φ15~φ360mm
Square Tube: □15~□250mm
Rectangular Tube: Max 300x200mm
Kerf Width: 0.1-0.2mm
Motion Range:
Chuck Clamping Stroke: φ15180mm; Switch Jaws for φ180φ360mm
Axis Stroke: X/Y/Z/U = 12100/320/450/Infinite Rotation
Positioning & Repeatability:
X/Y Accuracy: ±0.04mm per 1000mm
Repeat Accuracy: ±0.04mm
U-Axis Repeatability: ≤6'
U-Axis Max Speed: 70RPM
Speed & Acceleration:
Max Acceleration: 0.8G
Max Speed (X/Y): 70m/min
Loading/Unloading:
Automatic Loading Length: 5800~12000mm
First Load Cycle: ≤70s; Next Loads: ≤35s
Auto Load Max Tube: 700kg
Tail Length: 0~50mm
Max Unload Length: 6000mm (Standard), up to 12000mm (Three-Chuck)
CNC: Bochu Bus CNC (Windows-Based)
Servo Motors: High Performance
Motion Functions:
Real-time corner speed optimization
Intelligent piercing: segmented, progressive, pre-pierce
Adaptive lead-in/out line generation
Automatic bevel correction, seam compensation, and cutting direction recognition
One-click square tube alignment calibration
Electrical System:
Fully integrated Schneider low-voltage components
Stable power supply required (380V ±5%, 3-Phase 5-Wire, 100KVA+)
Safety & Environment:
Full safety alarms and auto protection
Dust-free, vibration-free, temperature-controlled installation recommended
(Cutting speed affected by gas purity, material grade, and thickness. For reference only.)
Carbon Steel (Q235, Oxygen/Air):
1mm: 35–50 m/min
6mm: 3.8–5.0 m/min
14mm: 1.2–1.6 m/min
30mm: 0.15–0.2 m/min
Stainless Steel (304, Nitrogen/Air):
1mm: 35–60 m/min
6mm: 5.0–8.0 m/min
14mm: 0.8–1.5 m/min
25mm: 0.15–0.2 m/min
Aluminum Alloy (Nitrogen/Air):
1mm: 35–60 m/min
6mm: 4.0–5.5 m/min
12mm: 0.8–1.3 m/min
Brass (Nitrogen):
1mm: 30–60 m/min
8mm: 2.0–3.5 m/min
16mm: 0.5–0.7 m/min
Copper (Oxygen):
1mm: 30–60 m/min
8mm: 1.2–1.8 m/min
14mm: 0.3–0.5 m/min
Power:
Voltage: 380V ±2%, 50Hz, 3-Phase 5-Wire
Grounding Resistance: ≤3Ω
Cable Spec: ≥16mm², 100KVA stable supply
Cooling Water:
Type: Distilled/Deionized
Volume: 60L
Conductivity: <10µS
Gas Requirements:
Oxygen: ≥99.6% purity, 1.0MPa, ≥1.0m³/min
Nitrogen: ≥99.99% purity, 2.5MPa, ≥2.5m³/min
Air: ≥1.3MPa, ≥2.0m³/min; dry, oil-free, dew point ≤5°C
Environment:
Temp: 5~30°C
Humidity: <70%
Vibration-Free Ground, Level Surface
Dust-Free, Anti-Corrosion, Ventilated Room
Isolated AC Cooling Room for Laser Preferred
