Laser Tube Cutting Machine (6000W) with Two-chuck Compatibility And Three-chuck

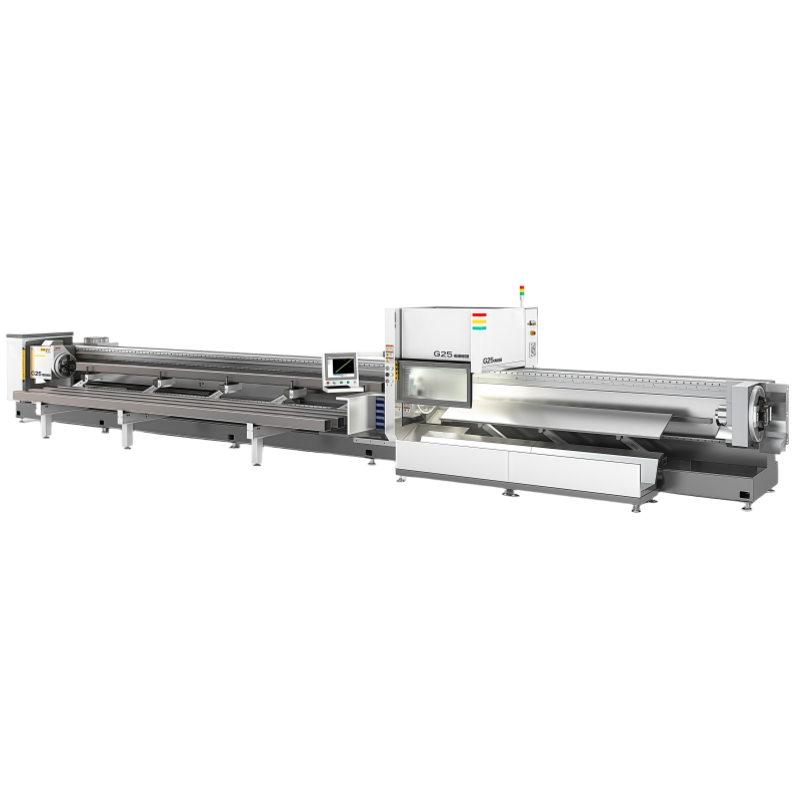

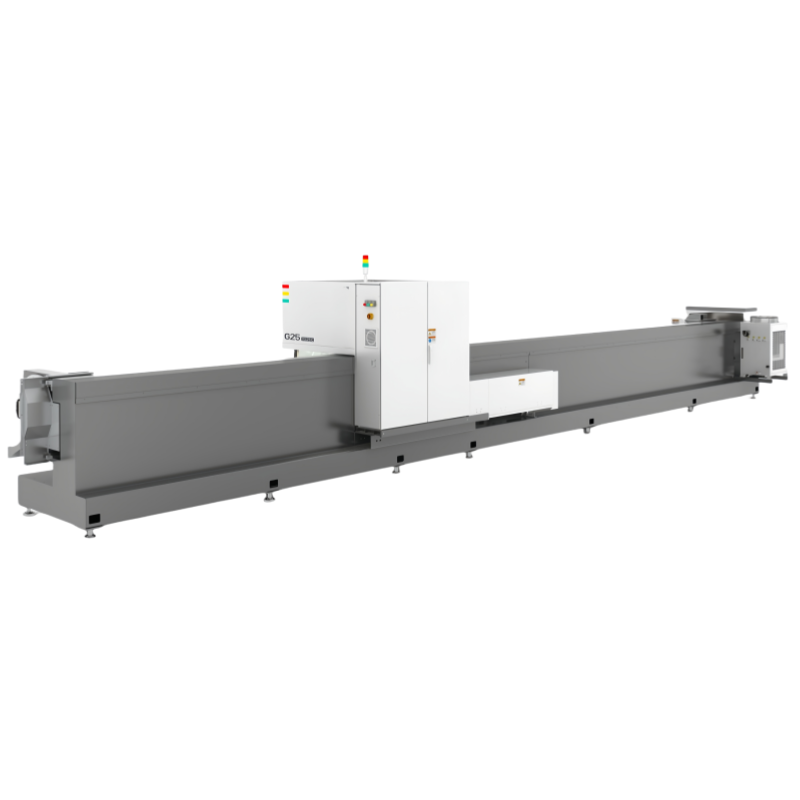

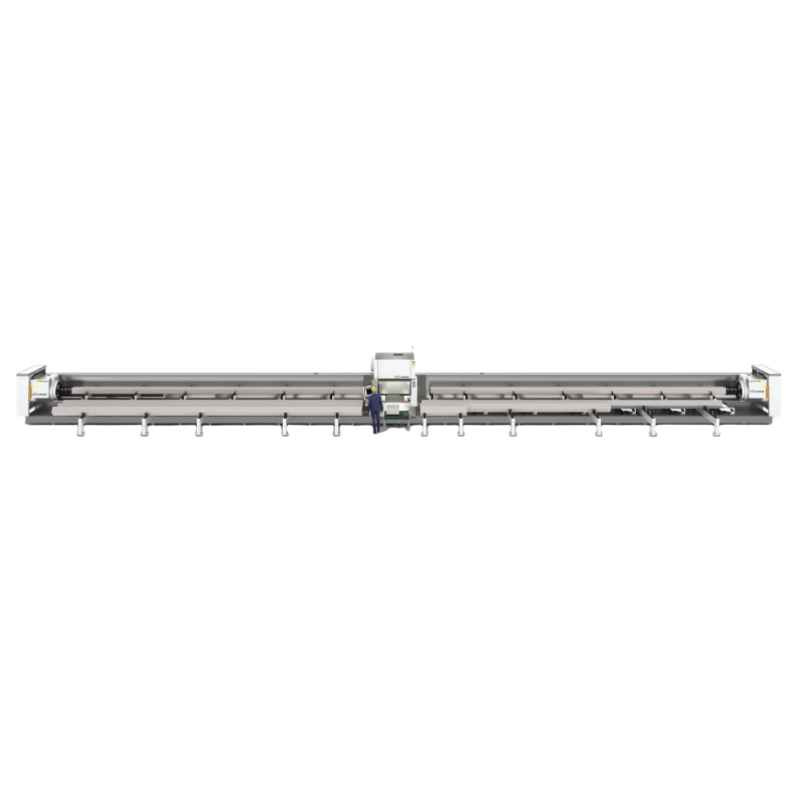

G25-12025B/C Laser Tube Cutting Machine (6000W)

Key Features:

• Laser Power: 6000W

• Chuck Compatibility: Two-chuck and three-chuck configurations

• Cutting Materials: Compatible with round tubes, square tubes, rectangular tubes, elliptical tubes, I-beams, C-channels, angle steel, and special-shaped tubes.

• Tube Sizes:

• Round tubes: Ø12-250mm

• Square tubes: 12-175mm

• Rectangular tubes: 200x120mm (max)

• Industries Served:

• Steel structure

• Aerospace

• Automotive manufacturing

• Garden machinery

• Agricultural machinery

• Fitness equipment

• Smart home

• Electric vehicles/bikes

• Escalator shelving

Machine Configuration & Components:

1. Laser Source:

• Brand: Raycus/Chuangxin

• Power: 6000W, Continuous Fiber Laser

• Cooling: Water-cooled

• Fiber Diameter: 50-100μm

• Suitable Materials: Carbon steel, stainless steel, aluminum, copper, brass

2. Cutting Head:

• Brand: Ospry

• 6000W automatic focus adjustment

• Focal Length: 200mm, Collimation Focal Length: 100mm

• Focus Adjustment Speed: 50mm/S (automatic)

3. Mechanical Components:

• Gear Rack: YYC, Taiwan, M2-6 grade

• Motor: Yaskawa, high-performance motor, up to 4000rpm

• Linear Guide: HIWIN, Taiwan (dust-proof)

• Servo Support: 6 supports, 300kg load-bearing

4. Loading and Unloading:

• Automatic Loading: 4 conveyors for continuous tube loading

• Unloading: Servo-controlled and pneumatic support

• Max Tube Weight for Loading: 160kg (two chuck), 260kg (three chuck)

• Unloading Length: Standard 3000mm (customizable)

Machine Dimensions & Specs:

• Overall Size: Length: 16,000mm, Width: 3,300mm, Height: 2,800mm

• Weight: 12-13 tons

• Power Consumption: 50–65KW

• Operating Temperature: 0-40°C

Processing Precision & Speed:

• Positioning Precision: ±0.03mm per 1000mm (X/Y-axis)

• Max Speed: X-axis: 100 m/min, Y-axis: 120 m/min

• Cutting Gap Width: 0.1-0.2mm

Cooling & Gas Requirements:

• Water Cooling: Deionized or distilled water, 60L, conductivity ≤10us

• Oxygen: ≥99.6% purity, Pressure: 1MPa, Flow ≥1m³/min

• Nitrogen: ≥99.99% purity, Pressure: 2.5MPa, Flow ≥2.5m³/min

• Air: Work pressure ≥1.3MPa, Flow ≥1.8m³/min

Electrical & Installation Requirements:

• Power Supply: Three-phase, 380V ±5%, 60KVA

• Installation Environment:

• Temperature: 5-30°C

• Humidity: ≤70%

• Foundation: Must be level, without strong vibrations

Software:

• Control System: Bachoo (Shanghai) CNC

• Programming Software: 3D tube cutting software (Bachoo, Shanghai)
