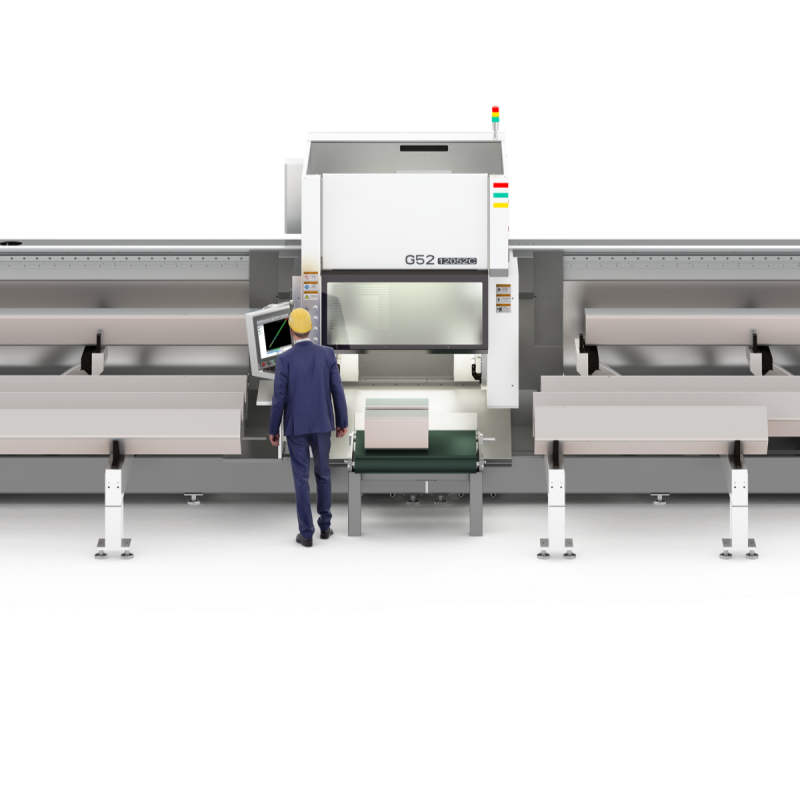

6000W Laser Tube Cutting Machine (Three-Chuck) 9-meter Length, 250mm Chuck Diameter

• Model: G25-9025C (Three-Chuck, 6000W)

• Platform Type: Medium Platform

• Chuck Type: Three-Chuck System

• Cutting Power: 6000W Fiber Laser

• Platform Size: 9-meter length, 250mm chuck diameter

G25-9025C 6000W Laser Tube Cutting Machine (Three-Chuck):

Product Overview

• Model: G25-9025C (Three-Chuck, 6000W)

• Platform Type: Medium Platform

• Chuck Diameter: 250mm

• Cutting Power: 6000W Fiber Laser

• Platform Size: 9-meter length

• Applicable Materials:

• Round Tubes: φ12-250mm

• Square Tubes: 12-175mm

• Rectangular Tubes: Max 200x120mm

• Other Shapes: Oval tubes, I-beam, Angle steel, Special-shaped tubes, etc.

• Applicable Industries:

• Steel Structure, Aerospace, Automotive Manufacturing, Garden Machinery, Agricultural Equipment, Fitness Equipment, Smart Home, Electric Vehicle/Bicycle Manufacturing, Escalators, and Shelves

• Material Handling Lengths: Based on the machine's standard specifications, customizable according to customer needs

• Intelligent Features: Equipped with a semi-automatic feeding system; can be upgraded with full automation

Key Components and Specifications

Processing Components

Software System

• Control System: Bachu 5000A Bus System, Shanghai

• Nesting Software: 3D Tube Cutting Software, Shanghai

• Control Type: Left-side operation, standard packaging

Technical Parameters

Laser Specifications

• Output Power: 6000W

• Working Mode: Fiber continuous

• Fiber Diameter: 50-100μm

• Cooling Method: Water-cooled

• Cutting Materials: Carbon Steel, Stainless Steel, Aluminum, Copper, Brass, etc.

Bed Specifications

• Structure: Welded steel tube bed

• Length: 12 meters

Chuck Specifications

• Chuck Model: QL250 Pneumatic

• Weight Capacity: Up to 260kg per tube

Cutting Head

• Focal Distance: 200mm

• Collimating Focal Distance: 100mm

• Focus Adjustment Speed: 50mm/s (manual focus adjustment not available)

• Auxiliary Air Pressure: ≤3Mpa

Water Chiller

• Coolant: Distilled/Deionized Water

• Water Temp Settings: 30-20°C (adjustable)

• Water Flow: 10L/min

• Pump Head: 20m

Machine Specifications

Key Features

Mechanical Structure

1. Bed Structure:

• High rigidity, stress-relieved welded tube bed ensures stability and precision.

• Unique side-suspended structure and automatic loading enhance efficiency.

2. Beam and Axes Movement:

• The beam is stress-relieved to ensure laser head rigidity during cutting.

• Z-axis: Servo motor-driven for vertical movement with proximity switches for safety.

Electrical and Motion Control:

• Control System: Fast processing with the Bachu CNC system, offering features like real-time processing and easy programming.

• Servo Motors: High-quality imported motors, providing excellent dynamic performance.

Cutting Speed (6000W) Example

Here are cutting speeds for different materials:

Utility Requirements

Electrical

• Voltage: 380V±5%, 50Hz (Three-phase, five-wire)

• Recommended Power: ≥80KVA for stable operation

Cooling Water

• Water Type: Distilled/Deionized Water

• Flow: 40L/min

Protective Gases

• Oxygen: Purity ≥99.6%, Pressure ≥1MPa, Flow ≥1m³/min

• Nitrogen: Purity ≥99.99%, Pressure ≥2.5MPa, Flow ≥2.5m³/min

• Air: Clean, dry air, Pressure ≥1.3MPa

Installation Environment

• Temperature: 5-30°C

• Humidity: <70%

• Ground Requirements: Flat, strong foundation with no vibration
