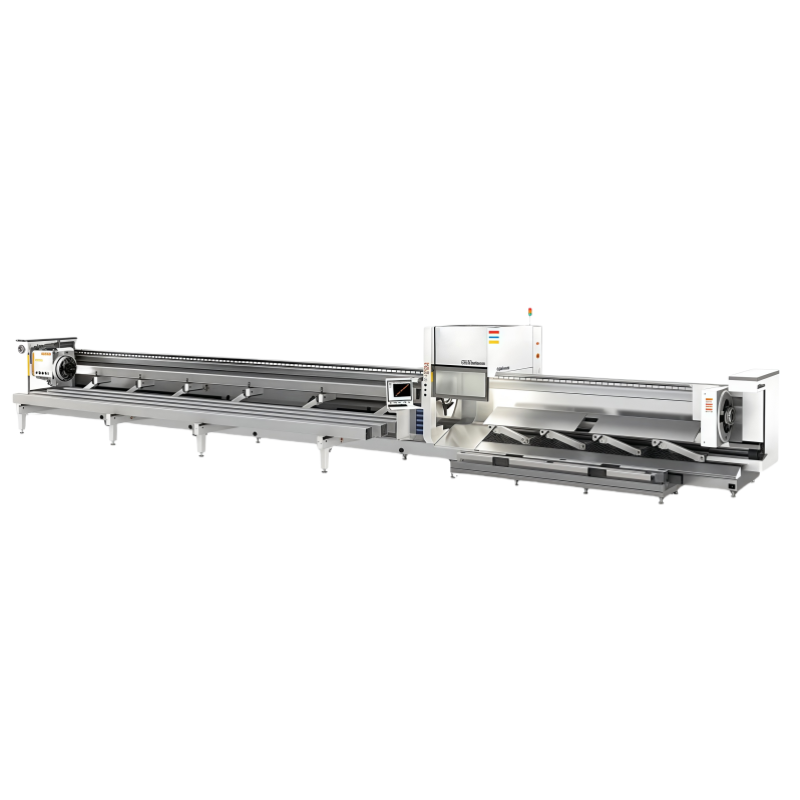

6000W Fiber Laser Tube Cutting Machine Three-Chuck 9m 360 Chucks

Machine Name: Fiber Laser Tube Cutting Machine

Model: G36-9036C
Laser Power: 6000W

Applicable Tube Types:

• Compatible with round tubes, square tubes, rectangular tubes, oval tubes, waist-type tubes, I-beams, channel steel, angle steel, and other special-shaped pipes.

Tube Size Capacity:

• Round Tube Outer Diameter: φ20~360mm

• Square Tube: 20~250mm

• Rectangular Tube: Max 300×200mm

Target Industries:

• Steel structures, aerospace, automotive manufacturing, garden machinery, agricultural equipment, fitness equipment, smart home, electric bikes/bicycles, escalators, storage racks, etc.

Loading/Unloading Length:

• According to standard technical specifications for this model, customizable upon request.

Automation Level:

• Standard: Semi-automatic loading unit

• Optional: Modular upgrade to full-automatic loading system

2. Key Component Configuration

3. Component Technical Parameters

Laser Source:

• Output Power: 6000W

• Mode: Continuous fiber laser

• Fiber Diameter: 50–100μm

• Cooling Method: Water-cooled

• Materials: Carbon steel, stainless steel, aluminum alloy, red copper, brass

Machine Bed:

• Structure: Welded tubular steel

• Length: 16 meters

• Treatment: Stress-relieved and precision machined

Chucks:

• Model: QL360

• Clamping Method: Pneumatic

• Load Capacity: 600kg

Cutting Head:

• Focus Focal Length: 200mm

• Collimation Focal Length: 100mm

• Focus Adjustment Speed: 100mm/s (manual only)

• Assist Gas Pressure: ≤3MPa

Water Chiller:

• Cooling Medium: Distilled/Deionized Water

• Temperature Setting: 30°C / 20°C (Adjustable)

• Precision: ±0.1°C

• Flow: 10L/min, Lift: 20m

4. Complete Machine Technical Specifications

Dimensions (L×W×H): 16000×2600×2700mm
Weight: 12–12.5 Tons
Power Consumption: 75–80KW
Operating Temperature: 0–40°C

Processing Range:

• Round Tubes: φ16–φ360mm

• Square Tubes: □16–□250mm

• Rectangular: Max 300×200mm

• Cutting Seam Width: 0.1–0.2mm

Chuck Clamping Range: φ16–φ180mm (Switch jaws for φ180–φ360mm)

Axis Travel:

• X: 9100mm

• Y: 300mm

• Z: 450mm

• U (rotation): Infinite

Precision:

• X/Y Positioning Accuracy: ±0.04/1000mm (±0.2mm over 9100mm)

• Repeatability: ±0.04mm

• U-axis Repeatability: ≤6 arcmin

• U-axis Max Speed: 75 RPM

Speed & Acceleration:

• Max Acceleration: 0.8G

• X/Y Max Rapid: 75 m/min

Loading:

• Auto Loading Length: 5800–9000mm

• First Load Time: ≤70s, Subsequent: ≤35s

• Loader Capacity: 1200kg

• Max Manual Tube Load: 600kg

• Max Auto Load: 500kg

Unloading:

• Tail Material Length: 0–50mm

• Max Unload Length: 4000mm (up to 9000mm with 3-chuck model)

5. Motion Structure & Control

Machine Bed:

• Tubular welded frame, annealed to relieve stress, machined for flatness

• Proprietary cantilever design with automatic loading system

Beam & Z-Axis Unit:

• Beam: Annealed for stress relief with limit switches and shock-absorbing buffers

• Z-axis: CNC servo-controlled module, guided by proximity sensors for safe motion

Electrical Control System:

• CNC System: Shanghai Bochu (Windows-based PC-CNC)

• Features: Real-time interpolation, intuitive interface, servo + low-voltage controls

CNC System Highlights:

• Real-time bus system, optimized for corner cutting with stability and speed

• Re-start at any point during processing, edge detection, lift-piercing support

• Segment-specific settings: pow
