G36-9036B-6000W
Model: G36-9036B (Dual-Chuck Standard Type – Side-Mounted)
Platform: Large Platform (9m, Dual 360 Chucks)

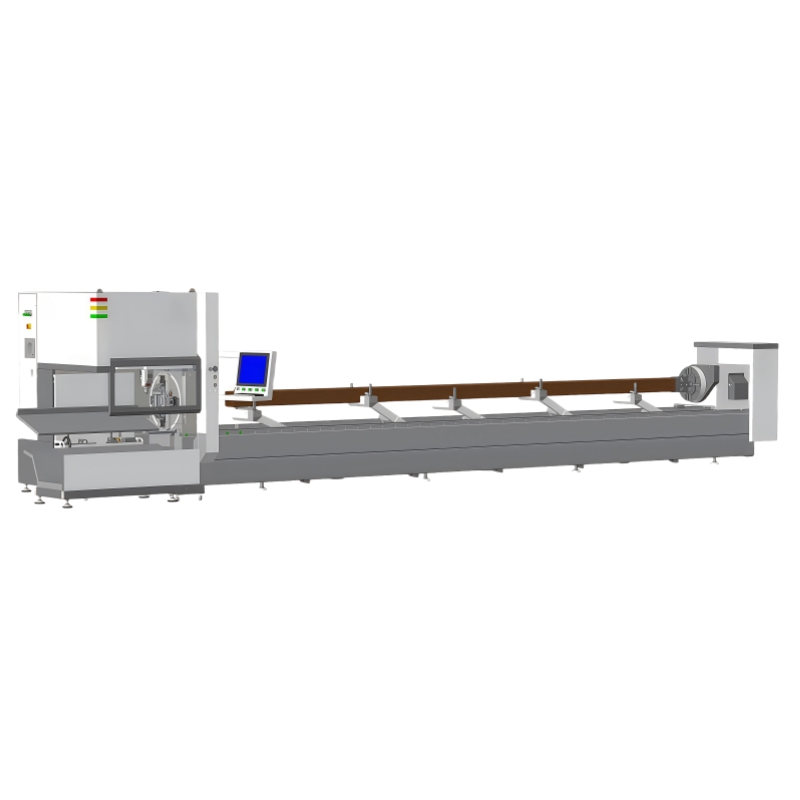

Machine Name: Fiber Laser Tube Cutting Machine
Model: G36-9036B Dual-Chuck
Laser Power: 6000W
Applicable Materials:
Round tube, square tube, rectangular tube, oval tube, waist-type tube, I-beam, channel steel, angle steel, and other special-shaped tubes
Tube Size Capacity:
Round tube: φ20~360mm
Square tube: 20~250mm
Rectangular tube: max. 300×200mm
Target Industries:
Steel structures, aerospace, automobile manufacturing, garden machinery, agricultural machinery, fitness equipment, smart home, e-bikes/bikes, escalators, racks, etc.
Loading/Unloading Length: Standard specifications, customizable upon request
Intelligence Level:
Standard semi-automatic loading system
Modular upgrade to full-automatic available
| No. | Component | Brand | Origin/Model |
|---|---|---|---|
| 1 | Fiber Laser | Raycus | 6000W / Top domestic brand |
| 2 | Cutting Head | OSPRI | 6000W / Leading domestic brand |
| 3 | Gear Rack | YYC | Taiwan |
| 4 | Reducer | MOTOREDUCER | France |
| 5 | Linear Guide | HIWIN | Taiwan |
| 6 | Motor | Inovance | (Yaskawa optional) Top domestic bus-type motor |
| 7 | Oil System | Baoteng | China |
| 8 | Drag Chain | Langu | China |
| 9 | Water Chiller | Hanli | 6000W mainstream domestic |
| 10 | Electrical Parts | Schneider | France |
| 11 | Pneumatic Parts | Airtac | Taiwan |
| 12 | Machine Bed | Self-Developed | 16m |
| 13 | Chuck | Self-Developed | GL360 Dual-Chuck, 500kg load |
| 14 | Loading Racks | Self-Developed | 6 supports, 400kg load |
| 15 | Loading Device | Semi-automatic | 1200kg, 5 pipes continuous loading |
| 16 | Unloading Device | Servo Floating Support | 60kg/m, 4m unloading zone |
| 17 | Control System | Shanghai Bochu | Bus control system |
| 18 | Nesting Software | Shanghai Bochu | 3D tube cutting software |
| 19 | Operator Side | Left-hand side | Standard |
| 20 | Packaging | Standard | Included |
Laser Source:
Output Power: 6000W
Mode: Continuous Fiber Laser
Fiber Core Diameter: 50–100μm
Cooling: Water-cooled
Materials: Carbon steel, stainless steel, aluminum alloy, brass, red copper
Machine Bed:
Welded tubular structure, 16m long
Stress relieved, rough and fine machined
Chucks:
Model: QL360
Mode: Pneumatic
Max Load: 500kg
Cutting Head:
Focus Focal Length: 150mm
Collimation Length: 100mm
Focus Adjustment Speed: 100mm/s
Assist Gas Pressure: ≤3Mpa
Water Chiller:
Cooling Medium: Distilled/Deionized Water
Set Temp: 30°C / 20°C (Adjustable)
Precision: ±0.1°C
Flow: 10L/min, Lift: 20m
Machine Dimensions: 16000×2600×2700mm
Weight: 11–11.5 Tons
Full Power Consumption: 75–80KW
Operating Temperature: 0–40°C
Processing Range:
Round: φ15–φ360mm
Square: □15–□250mm
Rectangle: up to 300×200mm
Cutting Gap Width: 0.1–0.2mm
Chuck Travel: φ15–φ180mm; switch jaws for φ180–φ360mm
Axis Travel: X: 9100mm, Y: 300mm, Z: 450mm, U: Infinite Rotation
Precision:
X/Y Positioning: ±0.04/1000mm (±0.2mm over 9100mm)
Repeatability: ±0.04mm
U-axis Rotation Repeatability: ≤6 arcmin
Max U-axis Speed: 70 RPM
Speed & Acceleration:
Max Acceleration: 0.8G
Max Rapid (X/Y): 70 m/min
Loading Specs:
Automatic Loading Length: 5800–9000mm
First Load Time: ≤70s, Subsequent: ≤35s
Loader Capacity: 1200kg
Max Manual Tube Load: 500kg
Max Auto Load: 400kg
Unloading:
Tail Material Length: 50mm
Max Unload Length: 4000mm (up to 9000mm with 3-chuck models)
Machine Bed:
Welded pipe design with stress-relief & dual machining for rigidity & precision
Patented cantilever structure, paired with auto loading for easier handling
Beam & Z-axis Assembly:
Beam with stress relief & end-buffer limits for safety
Z-axis: CNC servo-controlled linear module for up/down motion with proximity switches
Electrical Control System:
Components: Bochu CNC system + servo + low-voltage electrical
PC-based CNC: Windows interface with real-time interpolation & intuitive menu operations
CNC System Highlights:
Real-time bus control, fast cornering, stable quality
Supports re-positioning, edge detection, off-plate start, and progressive piercing
Segment-specific cutting parameters: power, gas, height, etc.
Flexible auto/manual nesting and sequence view
One-click tube leveling and auto-rotation center detection
Low-Voltage Cabinet:
Contains power, relays, breakers, contactors, servos
CNC system with multi-mode keys and intuitive screen menu
Alarm & Protection:
Auto-diagnosis, fault alarm, external condition monitoring, and protection
(Values are estimated; actual results vary by material, purity, and setup)
Carbon Steel (O2/Air Assist):
1mm: 35–50 m/min
3mm: 15–20 m/min
6mm: 3.8–5 m/min
10mm: 2–2.6 m/min
16mm: 1.0–1.5 m/min
25mm: 0.35–0.6 m/min
Stainless Steel (N2/Air Assist):
1mm: 35–60 m/min
4mm: 8.5–13 m/min
8mm: 2.6–4 m/min
12mm: 1.2–1.7 m/min
20mm: 0.2–0.3 m/min
Aluminum Alloy (N2/Air Assist):
1mm: 35–60 m/min
4mm: 8.5–12 m/min
10mm: 1.5–2.3 m/min
20mm: 0.2–0.25 m/min
Brass (N2 Assist):
1mm: 30–60 m/min
6mm: 4.2–5.5 m/min
10mm: 1.0–1.6 m/min
Red Copper (O2 Assist):
1mm: 30–60 m/min
6mm: 2.5–4.5 m/min
10mm: 0.7–1.2 m/min
Power Supply:
Voltage: 380±2% V / 50Hz / 3-phase 5-wire
Power: ≥100KVA, grounding ≤3Ω, no sudden voltage surges
Water Cooling:
Type: Distilled/deionized
Volume: 90L, Conductivity <10μs
Gas Supply:
Oxygen: Purity ≥99.6%, Pressure 1MPa, Flow ≥1m³/min
Nitrogen: Purity ≥99.99%, Pressure 2.5MPa, Flow ≥2.5m³/min
Air: Pressure ≥1.3MPa, Flow ≥1.8m³/min
Air Quality:
Dew point ≤5°C, oil ≤0.003ppm, solid particles ≤0.01μm
Environmental Conditions:
Temperature: 5–30°C
Humidity: <70%
Floor: Flat, vibration-free, dry, dust-free, anti-interference zone
