Dapeng Laser Handheld Laser Welding Machine Instructions for Use

Dapeng Laser Handheld Laser Welding Machine Instructions for Use

Please check the YOUTUBE video link：

https://www.youtube.com/embed/hVc8J-ehb4I

https://www.youtube.com/watch?v=hVc8J-ehb4I

1. Introduction of handheld laser welding machine:

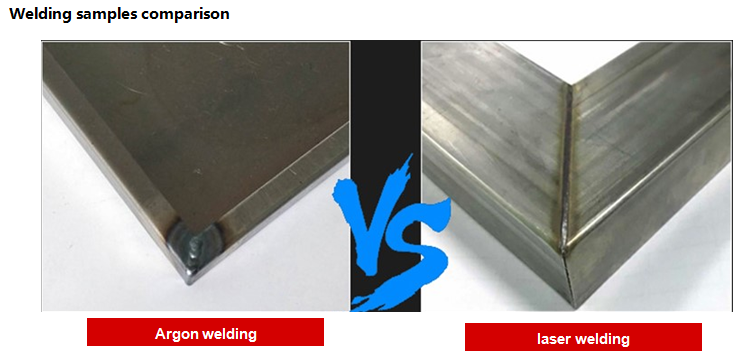

The handheld laser welding machine adopts a new generation of fiber lasers to fill the gap of handheld welding in the laser equipment industry. It has the advantages of simple operation, beautiful welding seam, fast welding speed, and no consumables. In terms of material welding, it can perfectly replace the traditional argon arc welding and electric welding processes.

2. Parameters of handheld laser welding machine:

Laser power: 1000w/1500w/2000w optional; laser wavelength: 1080nm; operation mode: continuous/modulation; laser frequency: 50HZ; welding speed: 0-120mm/s; cooling mode: water cooling; spot range: 0.5-5mm; working Temperature: 5-35℃; Type of output welding head: Hand-held swing head (double pendulum); Power requirement: AC220V/380V/50HZ; Automatic table stroke: X=300mm Y=200mm; Table moving speed: <=100mm /s; control system: CNC

3. Product advantages of hand-held laser welding machine:

The control function is simple and easy to understand, and the button-type design can be used when it is turned on. The laser beam quality is excellent, the welding speed is fast, and the welding seam is firm and beautiful, bringing users an efficient and perfect welding solution. The welding point is smooth and beautiful, and the welding seam is smooth and free of pores.

The working mode of hand-held optical fiber welding machine, hand-held welding, flexible and convenient, longer welding distance. The welding affected area is small, and it will not cause deformation, blackening, and traces on the back, and the welding depth is large, the welding is firm, and the melting is sufficient.

Suitable for all kinds of complex welds, hand-held welding head, to overcome the limitations of the workbench. The hand-held welding torch can weld any part of the workpiece at any angle. High photoelectric conversion rate, low energy consumption, long-term use can save a lot of processing costs.

Using four-dimensional ball screw worktable, imported servo control system, high welding precision, fast speed, equipped with a rotating worktable, can realize automatic welding of large quantities of products.

Weldable graphics are: point, line, circle, square or any graphics drawn by the software.

4. Application fields of hand-held laser welding machine:

Sheet metal processing, rail transit, automobiles, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, household appliances, food machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchenware and bathroom, decorative advertising, laser external processing services, etc. variety.
