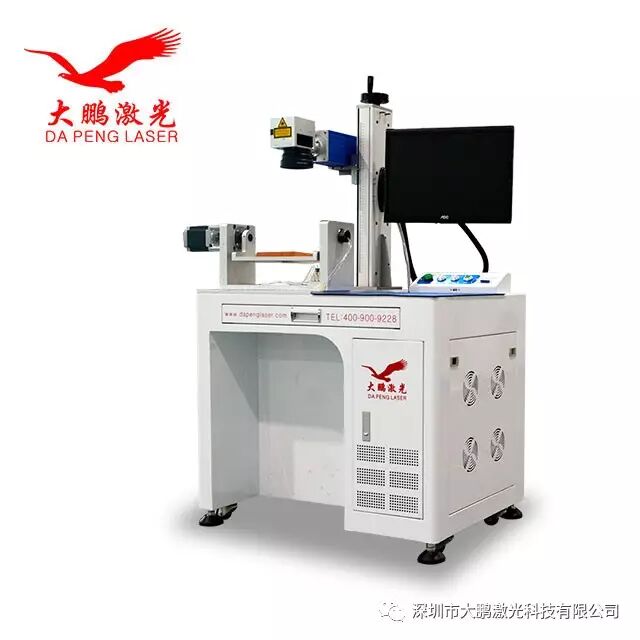

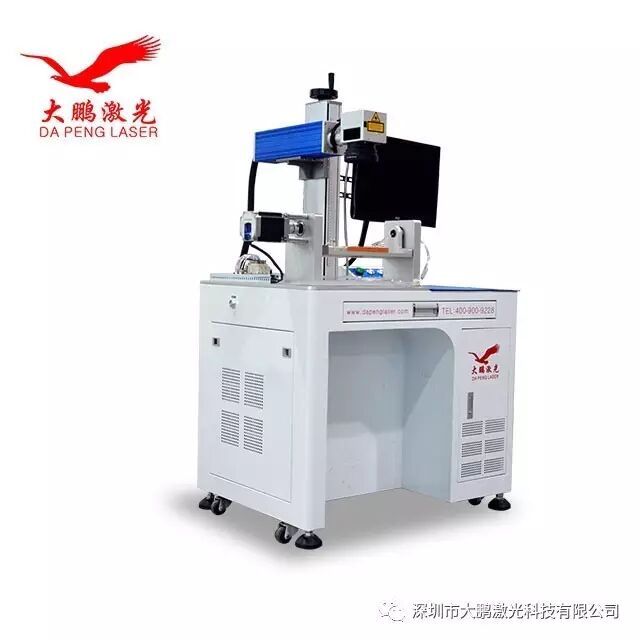

Drone industry-automatic flip laser marking machine
Used in the UAV industry, the power can be configured, and the UAV casing can be rotated and marked;
The laser power output is stable and the spot quality is good;
Easy to operate, fully enclosed optical path, stable and reliable, maintenance-free.
Sample display

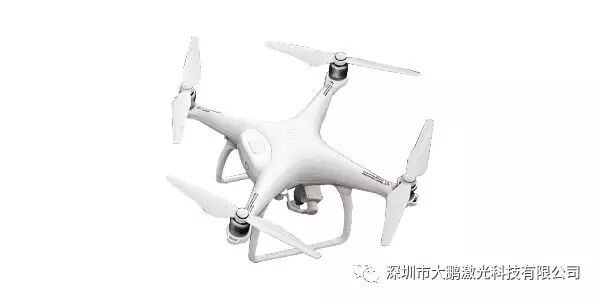

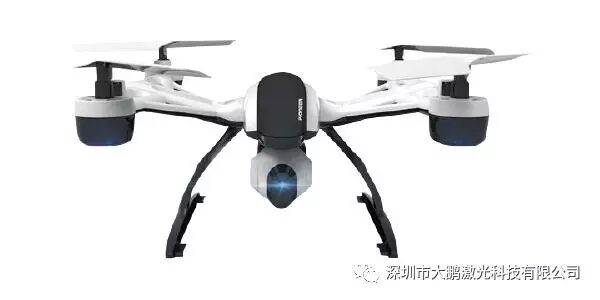

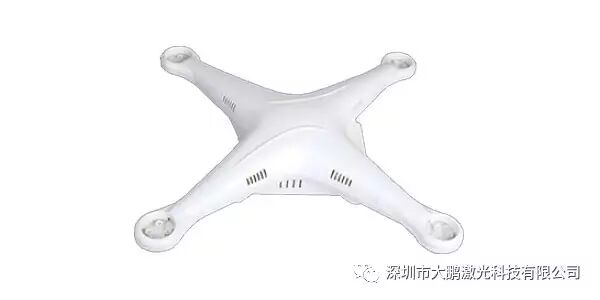

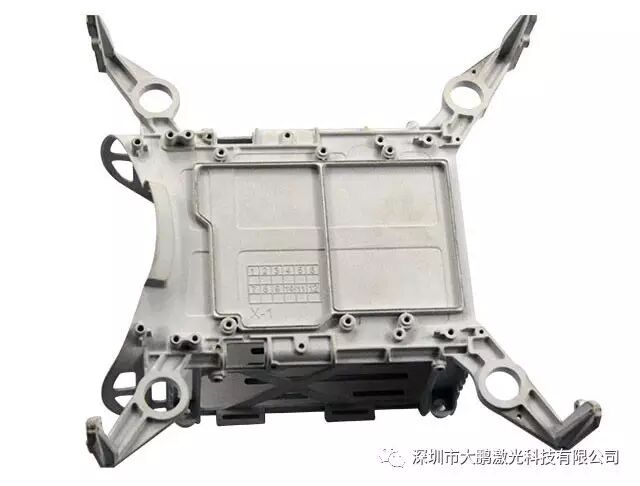

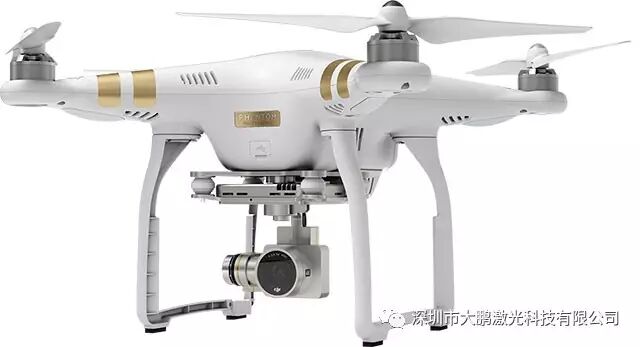

Marking of various drone shells
Drone flip marking machine - features, advantages and applications:
The power is configurable, and it can rotate and mark the shell of the drone;
The laser power output is stable and the spot quality is good;
Easy to operate, fully enclosed optical path, stable and reliable, maintenance-free.
High engraving precision;
High-power multi-mode laser diode is used as the pump source, mirror-doped double-clad fiber is used as the laser medium, the beam is transmitted by the fiber, and the high-speed movement of the beam is controlled by the X and Y scanning mirrors;
Compatible with CoreDRAW, AutoCAD, Photoshop and other software files;
Support PLT, PCX, DXF, BMP, JPEG, etc., can directly use SHX, TTF font library;
Support automatic coding, print serial number, batch number, date, barcode, QR code, etc.
technical parameter:
| electricity demandmodel | YLP-20W-ZD |
| Laser power | 20W |
| Laser wavelength | 1064nm |
| beam quality | ＜1.5 |
| Laser life | ≤100,000 hours |
| Laser frequency | 80KHZ-100KHZ |
| Engraving range | 110*110mm |
| Minimum line width | 0.03mm |
| minimum character | English：0.15x0.15mm |
| Repeatability | ±0.001mm |
| Engraving speed | ≤15000mm/s |
| Engraving depth | ≤0.8mm |
| electricity demand | Ac220V±10%，50HZ.5Amp |
| Total power | ≤0.6KW |
| cooling method | air cooling |
| best operating environment | Temperature: 5-45℃, Humidity: 10%-80% |
| SIZE | 95cm*65cm*145cm（L*W*H） |
| W | 135kg |
