G36-7036C-6000W

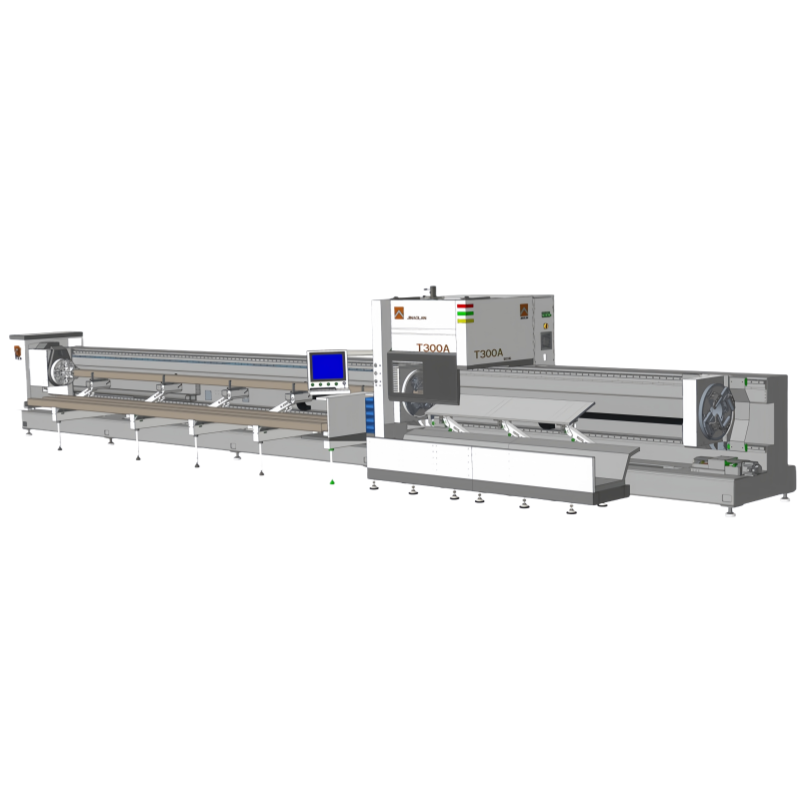

Large Platform – 7m Length | 360 Three-Chuck | Side-Mounted Design | 6000W
Model: G36-7036C
Laser Power: 6000W (Raycus/Max optional)
Platform Length: 7 meters
Chuck System: 360 three-chuck pneumatic clamping (GL360)
The G36-7036C is a high-performance fiber laser tube cutting machine built for processing long and heavy-duty tubes with high precision. It supports a wide range of pipe shapes and materials, making it ideal for industries like steel structures, aerospace, automotive, agricultural machinery, fitness equipment, smart home, and e-bike manufacturing.
Compatible Tube Types: Round, square, rectangular, oval, waist-type, I-beam, channel steel, angle steel, and special-shaped pipes.
Processing Size:
Round tube: φ20–360mm
Square tube: 20×20mm to 250×250mm
Rectangular tube: up to 300×200mm
Loading & Unloading Length: Standard is 7m; customizable upon request.
Automation: Standard semi-automatic loading; optional upgrade to full automation.
| No. | Component | Brand / Model | Origin |
|---|---|---|---|
| 1 | Fiber Laser Source | Raycus / Max (6000W) | China |
| 2 | Cutting Head | OSPRI 6000W | China |
| 3 | Rack & Pinion | YYC | Taiwan |
| 4 | Reducer | MOTOREDUCER | France |
| 5 | Linear Guide | HIWIN | Taiwan |
| 6 | Servo Motor | INOVANCE (Yaskawa optional) | China |
| 7 | Hydraulic System | BAOTENG | China |
| 8 | Drag Chain | LANGU | China |
| 9 | Chiller | HANLI 6000W | China |
| 10 | Electrical Components | Schneider | France |
| 11 | Pneumatic Components | AIRTAC | Taiwan |
Bed Frame: 16-meter welded steel tube frame, stress-relieved by annealing and precision machined.

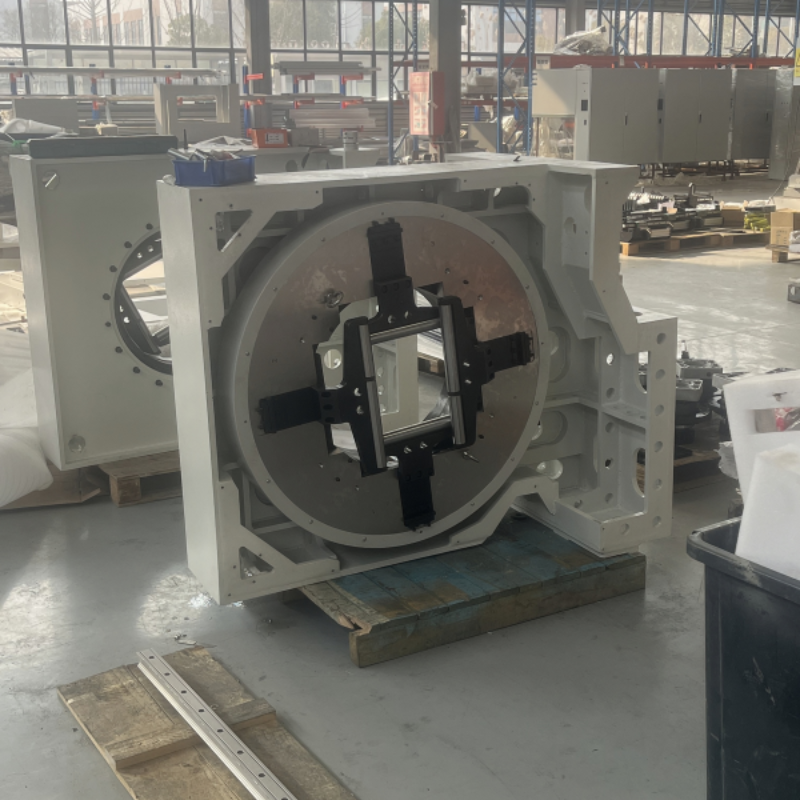

Chuck: Self-developed GL360 three-chuck pneumatic clamping system, load capacity 650kg.
Material Support: 6 auxiliary support racks (600kg), servo floating unloading area up to 9m.
Loader: Semi-automatic loader holds 5 tubes (1200kg capacity); supports sequential loading.
CNC System: Bochu Bus-Based Control System (Shanghai), PC-based, Windows interface.
Software: Bochu 3D Tube Nesting Software – supports bevel cutting, automatic compensation, smart sorting, and rotary calibration.
Main Features:
Real-time bus control with high-speed interpolation
Support for segmented/perforation/piercing modes
Smart lead-in/out, auto inner/outer contour recognition
One-click tube leveling and center rotation calibration
Real-time alarms and diagnostics for safety
| Thickness (mm) | Cutting Speed (m/min) |
|---|---|
| 1–4 | 7.5–50 |
| 6–10 | 2.0–5.0 |
| 12–20 | 0.7–2.2 |
| 25–30 | 0.15–0.6 |
| Thickness (mm) | Cutting Speed (m/min) |
|---|---|
| 1–4 | 8.5–60 |
| 6–10 | 2.3–8.0 |
| 12–20 | 0.2–1.7 |
| 25 | 0.15–0.2 |
| Thickness (mm) | Cutting Speed (m/min) |
|---|---|
| 1–4 | 8.5–60 |
| 6–10 | 1.5–5.5 |
| 12–20 | 0.2–1.3 |
| 25 | 0.12–0.2 |
| Item | Value |
|---|---|
| Machine Size | 16000 × 2600 × 2700 mm |
| Machine Weight | 12–12.5 Tons |
| Max Power Consumption | 75–80 kW |
| Operating Temp | 0–40°C |
| Positioning Accuracy (X/Y) | ±0.04 mm / 1000 mm |
| Repositioning Accuracy | ±0.04 mm |
| U-Axis Repetition Accuracy | ≤6 arcmin |
| Max U-Axis Rotation Speed | 70 RPM |
| Max X/Y Travel Speed | 70 m/min |
| Acceleration | 0.8G |
| X/Y/Z/U Axis Travel | 7100 / 300 / 450 mm / unlimited rotation |
| Clamping Range | φ15–360mm (180+ mm with changeable jaw) |
| Minimum Tailings | 0–50mm |
| Max Cutting Length | 6000mm |
| First Loading Cycle Time | ≤70s |
| Repeated Cycle Time | ≤35s |
3-phase 380–400V, 50Hz
Power >100KVA
Grounding resistance ≤3Ω
Voltage fluctuation <5%
Min. cable diameter: 16mm² single core
Purified / deionized water, 60L
Conductivity <10μs
| Gas | Purity | Pressure | Flow |
|---|---|---|---|
| Oxygen | ≥99.6% | ≥1 MPa | ≥1 m³/min |
| Nitrogen | ≥99.99% | ≥2.5 MPa | ≥2.5 m³/min |
| Air | Oil-free, dry | ≥1.3 MPa | ≥1.8 m³/min |
Note: Air compressor, dryer, and filter system required for air-assisted cutting.
Temperature: 5–30°C
Humidity: <70%
Site Requirements: Flat, stable foundation, no seismic activity or settling
Isolation: Laser source should be housed in an air-conditioned, dust-free room
EMI Protection: Avoid placement near welding, EDM, or high-frequency devices
