G52-9052C-6000W

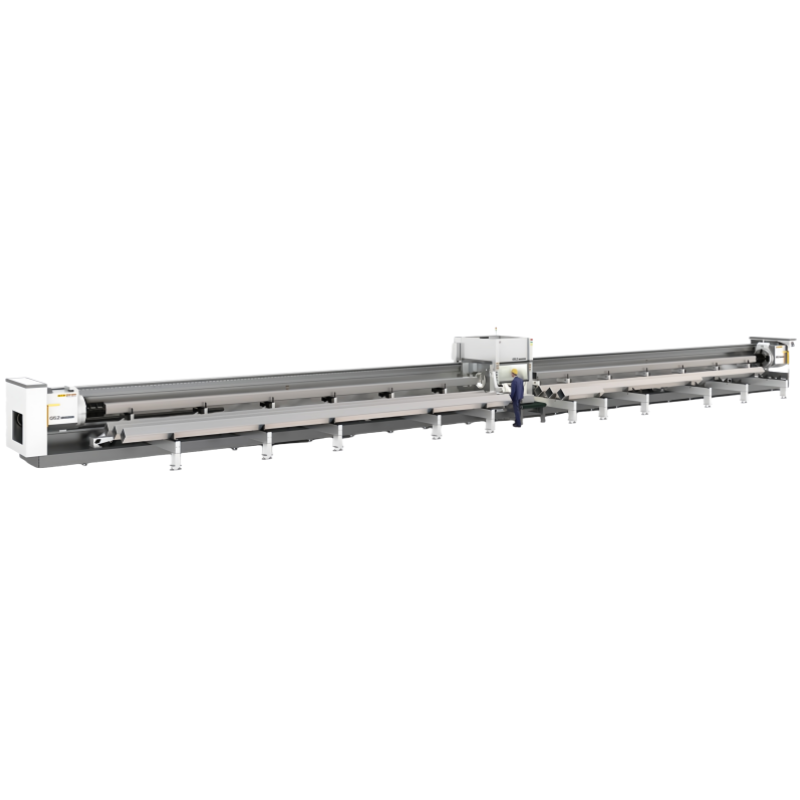

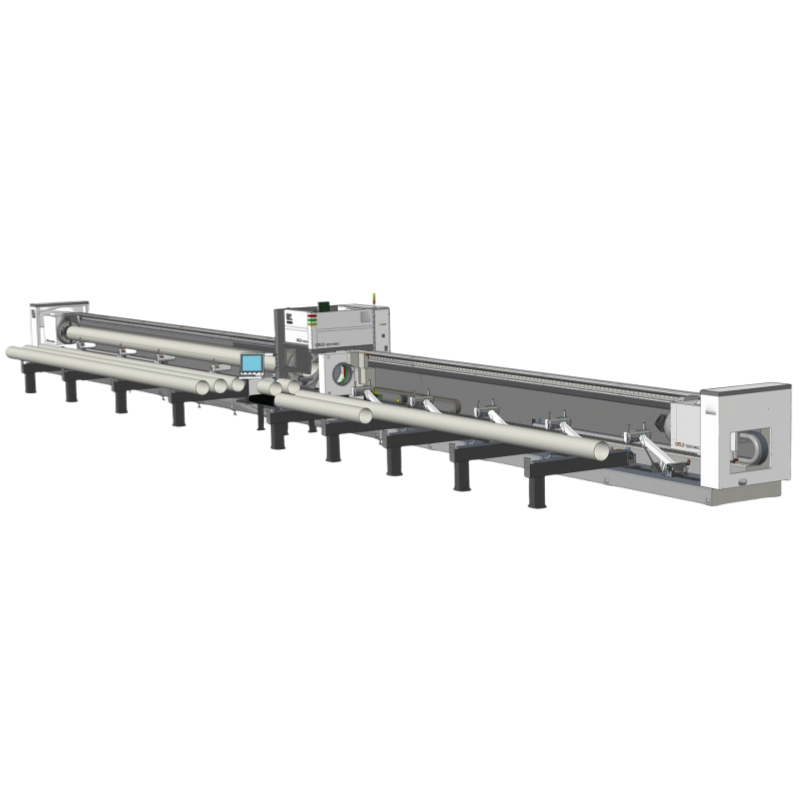

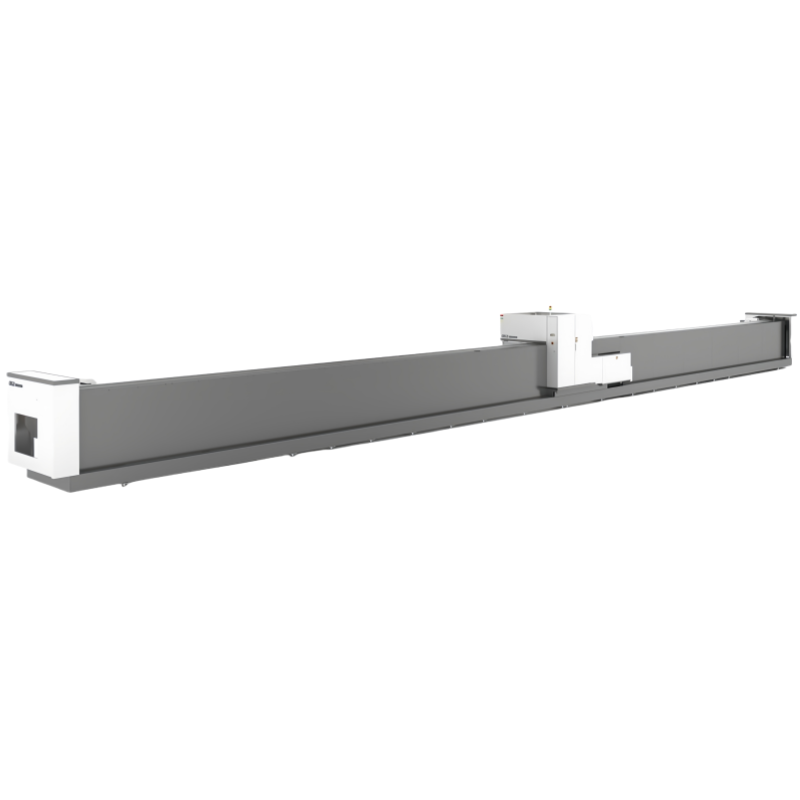

The G52-9052C is a high-performance industrial fiber laser tube cutting machine equipped with a 6000W fiber laser, featuring a 9-meter long processing platform and a 520mm diameter three-jaw chuck system. It supports a wide range of tube shapes and sizes, making it ideal for industries such as steel structure fabrication, aerospace, agricultural machinery, and escalator & shelving manufacturing.
This machine can efficiently and precisely cut round tubes, square tubes, rectangular tubes, elliptical tubes, H-beams, channel steel, angle steel, and various special-shaped tubes. The machining range covers round tubes with diameters from 50mm to 520mm, square tubes from 50mm to 360mm, and rectangular tubes up to 400mm × 300mm.
| Component | Brand / Origin | Description |
|---|---|---|
| Fiber Laser | Chuangxin / Raycus (China) | 6000W high-power continuous fiber laser, fast cutting speed and high efficiency, suitable for cutting various metals. |
| Cutting Head | OSPRI (China) | Efficient and stable laser focusing system with manual focus adjustment, ensuring fine cutting quality. |
| Gear Rack & Pinion | YYC (Taiwan) | High-precision rack and pinion transmission for smooth and accurate X-axis movement. |
| Reducer | MOTOREDUCER (France) | High-quality reducer ensuring stable machine operation. |
| Linear Guide Rail | HIWIN (Taiwan) | High rigidity and precision linear guide rails for accurate and smooth movement. |
| Servo Motor | Inovance (optional Yaskawa) | High-performance servo motor with up to 4000rpm speed, paired with bus-type driver for precise control. |
| Water Chiller | Hanli (China) | Dedicated cooling system to maintain laser stability and extend laser life. |
| Electrical Components | Schneider (France) | High-reliability electrical parts to ensure safe and stable operation. |
| Pneumatic Components | AIRTAC (Taiwan) | Precise pneumatic control for chuck and auxiliary gases. |
The machine bed is a 16.5-meter-long welded pipe plate structure, annealed to relieve internal stress and precisely machined to improve rigidity and stability, ensuring high precision during cutting.
The cantilever design combined with a proprietary GL520 pneumatic three-jaw chuck system securely clamps tubes up to 1000kg, supporting a wide range of sizes.
The X, Y, Z, and U axes are driven by high-precision servo motors with gear rack transmission and HIWIN guide rails, providing smooth, fast, and accurate movement: max speeds are 70 m/min (X-axis) and 60 m/min (Y-axis).
The Z-axis laser head movement is controlled by a servo motor driving a linear module, allowing precise vertical adjustments with safety limit switches and mechanical buffers.
The U-axis rotation supports infinite rotation with a max speed of 45 RPM and a repeat positioning accuracy of ≤7 arcminutes, ensuring precise angle cutting.
A semi-automatic loading system is standard, capable of holding two tubes and supporting loading lengths from 5800mm to 9000mm, significantly improving loading efficiency.
The servo floating support and flipping unloading system supports up to 100kg/m with a 4-meter unloading zone and maximum unloading length up to 9 meters, ensuring safe handling of cut tubes.
The CNC control system uses Shanghai Baichu’s high-performance Windows-based bus control platform, offering fast interpolation, user-friendly touchscreen interface, and flexible operation.
The nesting software is a 3D specialized tube cutting program that supports automatic and manual nesting, path optimization, and customizable cutting sequences, greatly improving productivity.
Features include one-button calibration for squaring rectangular tubes and automatic centering of tube rotation for precise alignment and cutting accuracy.
Processing Range:
Round tubes: Ø50 - Ø520 mm
Square tubes: 50 mm - 360 mm
Rectangular tubes: Max 400 mm × 300 mm
Cutting Kerf Width: 0.1 - 0.2 mm for smooth and precise cuts.
Positioning Accuracy:
X/Y axis: ±0.04 mm per 1000 mm
Repeatability: ±0.04 mm
Cutting Speed Examples (depending on material & assist gas):
Carbon steel 1 mm thick: 8-12 m/min
Carbon steel 12 mm thick: 1.8-2.2 m/min
Stainless steel and aluminum 1 mm thick: up to 35-60 m/min
High-reflective materials such as copper and brass also achieve excellent cutting quality.
Power Supply:
3-phase 380-400 VAC, 50 Hz, power consumption around 90-95 kW
Voltage fluctuations should be within ±5%; recommended supply capacity ≥ 100 kVA
Effective grounding ≤ 3Ω
Cooling Water:
Use distilled or deionized water with conductivity less than 10 μS/cm, 60 liters capacity.
Assist Gases:
Oxygen ≥ 99.6% purity, pressure ≥ 1 MPa, used for carbon steel and iron cutting to improve efficiency and quality.
Nitrogen ≥ 99.99% purity, pressure ≥ 2.5 MPa, used for stainless steel and galvanized sheet cutting to ensure quality.
Compressed air ≥ 1.3 MPa, users must provide air compressor with cold dryer and multi-stage filtration to protect optics and ensure cut quality.
Ambient temperature: 5°C to 30°C; recommended placing laser source in an isolated air-conditioned room to maintain temperature stability.
Humidity: less than 70%, avoiding condensation and corrosion.
Foundation: flat and stable with no excessive vibration; shock-absorbing measures if necessary.
Ventilation: dust-free, corrosion-free environment away from electromagnetic interference sources like welding or discharge machines.
The G52-9052C fiber laser tube cutting machine combines top-tier domestic and international components with proprietary mechanical and control innovations to deliver a high-precision, high-efficiency, and highly automated cutting solution. Its wide processing range, reliable stability, and advanced software features make it an ideal choice for industries requiring fast, accurate, and diverse tube cutting capabilities.
If your business demands precise and efficient cutting for large-diameter or special-shaped tubes, the G52-9052C is your trusted industrial partner.
