60W

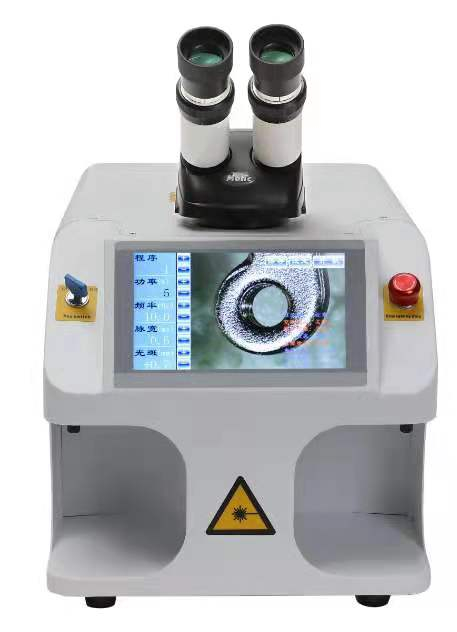

The 60W Jewelry Laser Spot Welding Machine is a compact and high-precision laser welding solution designed for jewelry manufacturing, repair, and micro metal processing. Equipped with an integrated CCD camera and touch screen control system, this mini portable welder allows operators to achieve accurate positioning and consistent welding results, even on delicate and intricate jewelry components.
This machine is ideal for gold, silver, stainless steel, and titanium, making it a reliable tool for professional jewelry workshops, retail repair shops, and DIY jewelry studios.
The built-in CCD camera and microscope system provides real-time visual positioning, enabling precise alignment of the welding spot. The touch screen interface allows easy adjustment of laser parameters such as pulse frequency, pulse width, and energy, ensuring optimal welding performance for different materials and thicknesses.
With its intuitive operation, even complex welding tasks such as chain repair, ring resizing, prong welding, and crack repair can be completed quickly and accurately.
Featuring a 60W laser output power and an adjustable pulse frequency range, the machine delivers fast and stable spot welding with excellent penetration. The welding process produces a small heat-affected zone, preventing deformation, discoloration, or damage to surrounding areas.
This makes the welder especially suitable for thin, micro, and precision jewelry parts, ensuring strong weld joints with clean and smooth finishes.
Designed as a mini desktop unit, the machine occupies minimal space and can be easily installed in workshops or retail environments. Its efficient cooling system supports 24-hour continuous operation, ensuring reliability and productivity during long working hours.
The portable structure makes it an excellent choice for jewelers who require both professional performance and space-saving design.
High-precision laser spot welding
Integrated CCD camera & touch screen control
Small heat-affected zone with minimal deformation
Strong and clean weld seams with no visible marks
Easy operation suitable for professionals and DIY users
Compact, portable, and workshop-friendly design
Stable performance for continuous operation
Gold and silver jewelry welding
Chain, ring, pendant, and earring repair
Jewelry resizing and crack repair
Stainless steel and titanium micro-welding
DIY jewelry making and repair
Laser Output Power: 60 W
Laser Type: YAG Laser
Laser Frequency: 1.0 – 15.0 Hz (Adjustable)
Pulse Width: 0.1 – 15 ms (Step Adjustable)
Spot Adjustment Range: ±3 mm
Single Pulse Energy: 50 J
Aiming & Positioning: Integrated CCD Camera & Microscope
Cooling System: Built-in Water Chiller
Operation Method: Touch Screen Control
Operating Temperature: ≤45°C
Input Voltage: AC 220V ±10%, 50Hz
Power Consumption: 2.5 kW
Display Touch Screen Installation Size: 137 × 190 mm
Machine Dimensions (L × W × H): 510 × 295 × 395 mm
Net Weight: Approx. 30 kg
